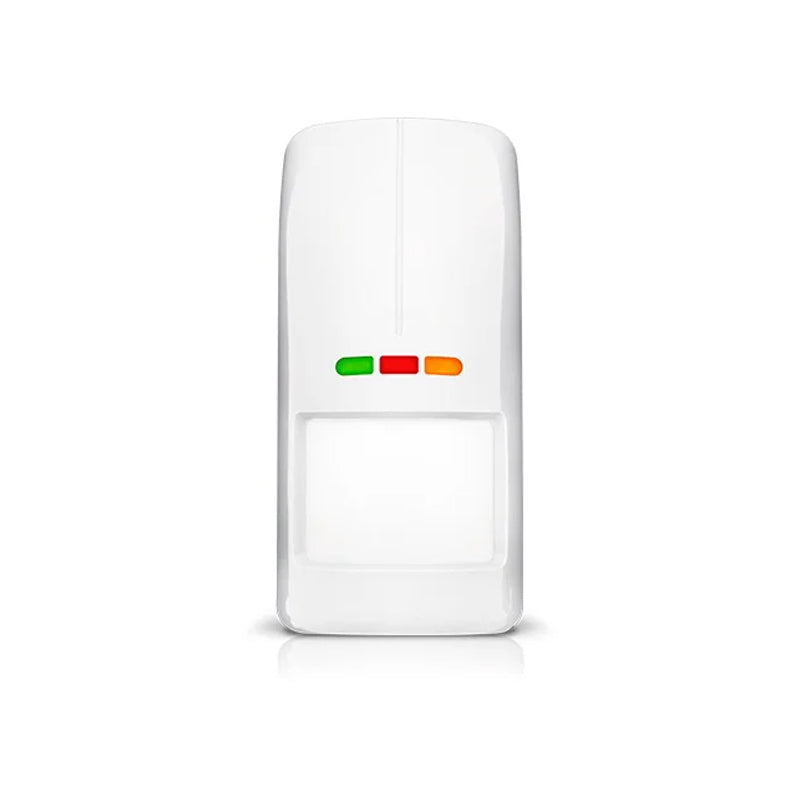

AOD-210 | Wireless Outdoor PIR + MW Motion Detector
Wireless outdoor dual-technology detector designed for reliable intrusion detection in harsh environments. Suitable for both outdoor and indoor applications with advanced false alarm immunity.
Features
EN 50131 Grade 2 compliant
Dual detection: PIR + microwave
Detection range: 16 m x 16 m / 90° coverage
High immunity to false alarms
Advanced digital signal processing
Dynamic temperature compensation
Creep zone protection
Pet immunity (up to 20 kg)
Built-in temperature and dusk sensors
Remote configuration and firmware updates
AES encrypted wireless communication
Compatible with ABAX 2 and ABAX systems
Wireless range up to 2000 m (ABAX 2)
IP54 weather-resistant enclosure Low power consumption with battery monitoring Powered by CR123A 3 V battery Tamper protection (cover & removal) Compatible with BRACKET C / BRACKET E mounting accessories Optional HOOD C protective cover
Technical Data
Complied with standards
EN50131-1, EN50130-4, EN50130-5
Maximum detection area
16 m x 16 m, 90°
Temperature measurement range
-40°C...+55°C
Radio communication range (in open area) for ACU-280
do 1600 m
Radio communication range (in open area) for ACU-220
do 2000 m
Radio communication range (in open area) for ACU-270
do 500 m
Radio communication range (in open area) for ACU-120
