8 Core, 250m Box - MSEC 8142/250TCW

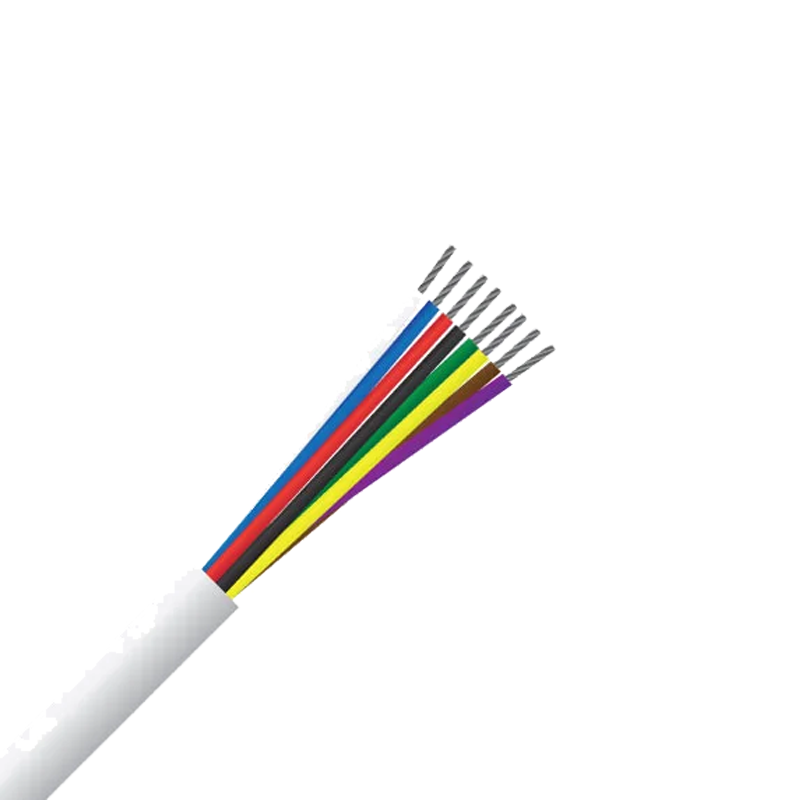

8 Core 0.44mm² 100% Tinned Copper Security Cable – MSEC 8142/250TCW

The MSEC 8142/250TCW is a premium-grade security cable designed for alarm, access control, and advanced low-voltage installations. With 8 cores of 100% tinned copper, it provides maximum flexibility and capacity for complex system wiring and integrations.

Key Features

• 8 Core (0.44mm² / 14/0.2) – Ideal for multi-device and complex system setups
• Tinned Copper Conductors – Superior conductivity and corrosion resistance
• Flame Retardant PVC Sheath – Safe and compliant for building installations
• Colour-Coded Cores – Red, Blue, White, Black, Green, Yellow, Brown, Violet for easy identification
• Flexible & Installer-Friendly – Easy routing for larger and more complex cable runs


Applications

• Intruder alarm systems
• Access control (readers, keypads, PIRs, sirens)
• CCTV and general ELV wiring


Specifications

• Voltage Rating: 300V (ELV – not for mains)
• Core Size: 0.44mm²

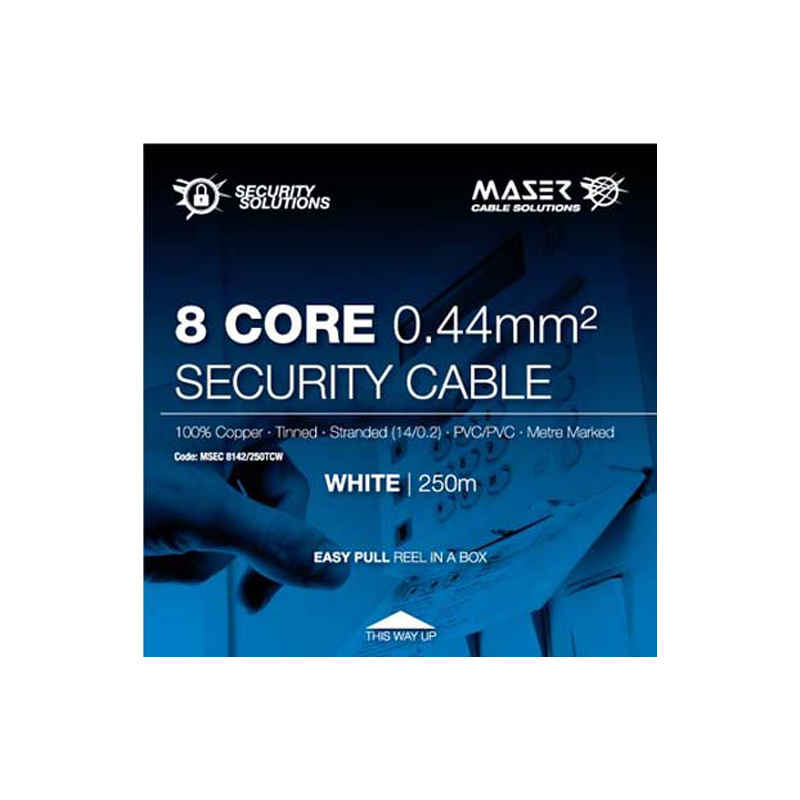

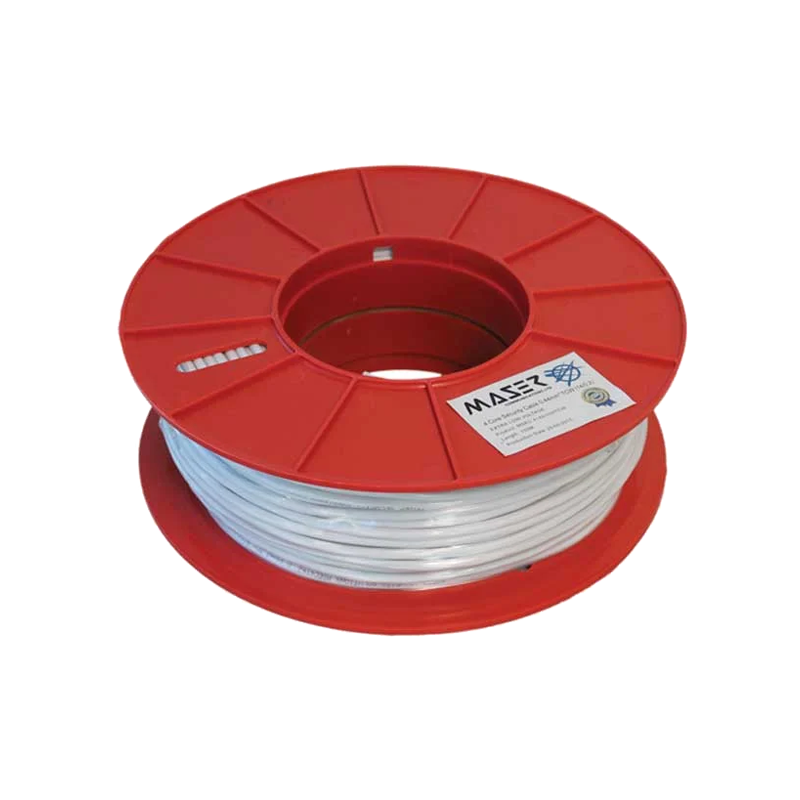

• Length: 250m reel-in-a-box
• Approx. OD: 6.15mm
