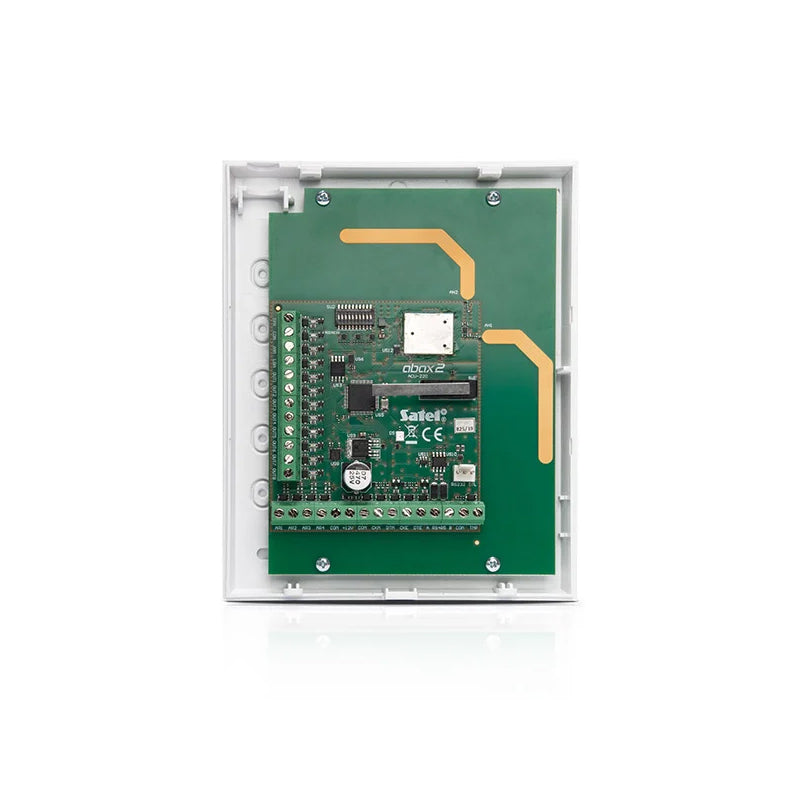

The ACU-220 is a wireless system controller for the ABAX 2 system, operating in the 868 MHz (EU) or 915 MHz band. It supports encrypted, two-way communication (AES) with automatic acknowledgement, enabling alarm system expansion with wireless devices.
Key Features:
Compliance: Meets EN 50131 Grade 2 requirements.
Range: Up to 2000 m in open area thanks to a modern radio system and antenna diversity (auto-selects the strongest signal).
Integration: Works with INTEGRA, INTEGRA Plus, VERSA, and PERFECTA 64 M control panels (via communication bus), or any panel/controller, or in stand-alone mode.
Programmable I/O:
8 programmable outputs.
4 programmable zones.
4 outputs for controller/device status.
Configuration & Updates
Configurable via:
ABAX 2 Soft (stand-alone/universal).
DLOADX (INTEGRA/Plus, VERSA).
PERFECTA Soft (PERFECTA 64 M).
Panel keypads.
Remote updates: Controller and wireless devices can be configured or updated over radio, without removal.
Includes tamper protection and 12 V DC power supply.
Technical Data
Supply voltage
12 V DC

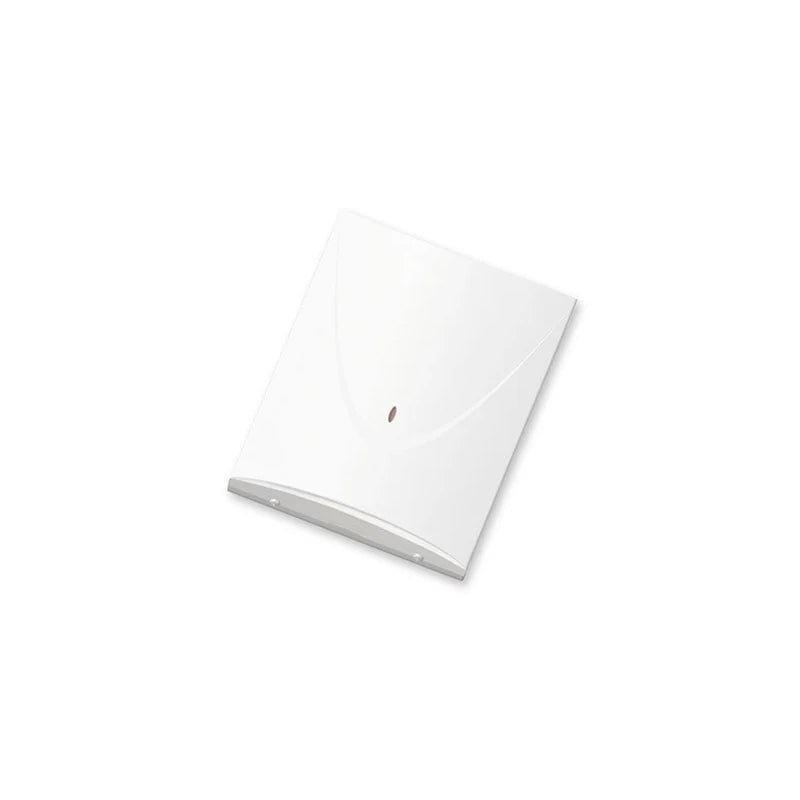

Enclosure dimensions
126 x 158 x 32 mm

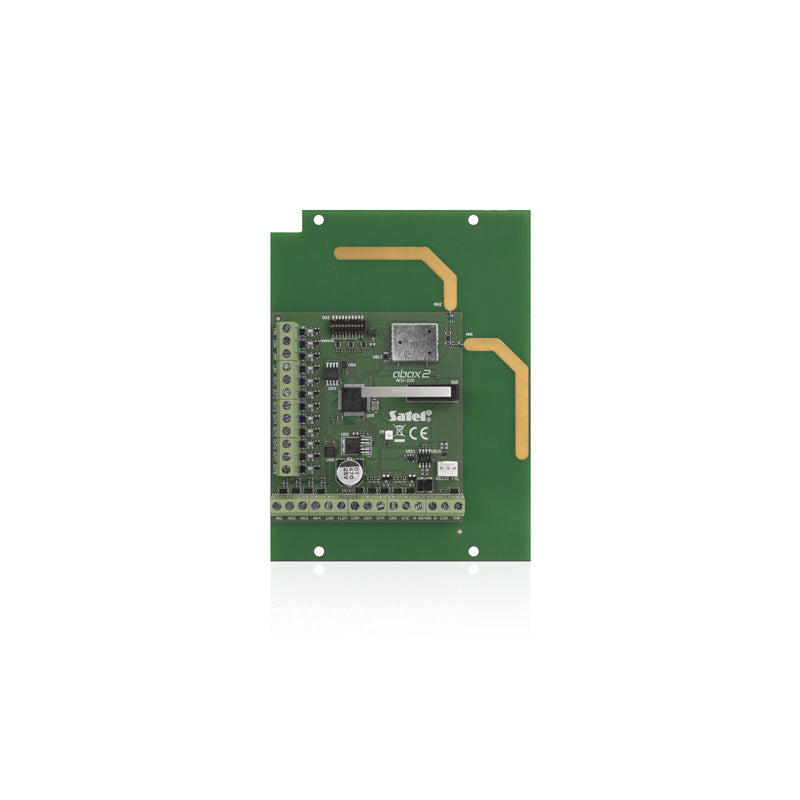

Board dimensions
103 x 139 mm
Operating temperature range
-10°C...+55°C
Standby mode current consumption
75 mA
Max. current consumption
100 mA
Weight
222 g
Maximum humidity
93±3%
Operating frequency band
868,0 ÷ 868,6 MHz
Radio communication range (in open area)
up to 2000 m m
Environmental class according to EN50130-5
II
Complied with standards
EN 50130-4, EN 50130-5, EN 50131-1, EN 50131-3, EN50131-5-3
