Satel

ACX-210

Miniature wireless expander of wired zones/outputs

$58.38 NZD

Sale Sold out

Product Dimension: 21 x 41 x 13 mm

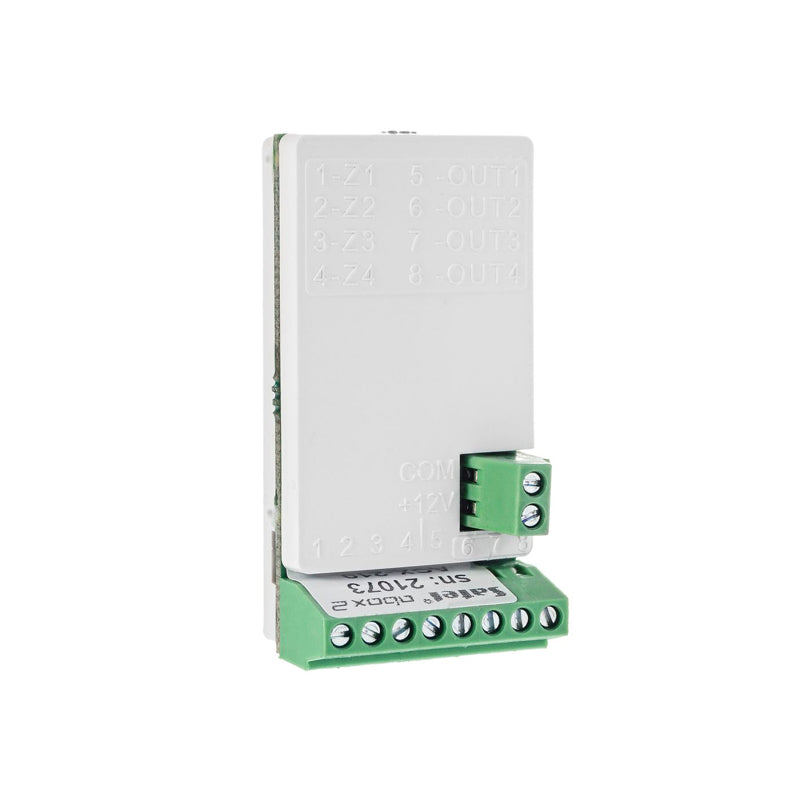

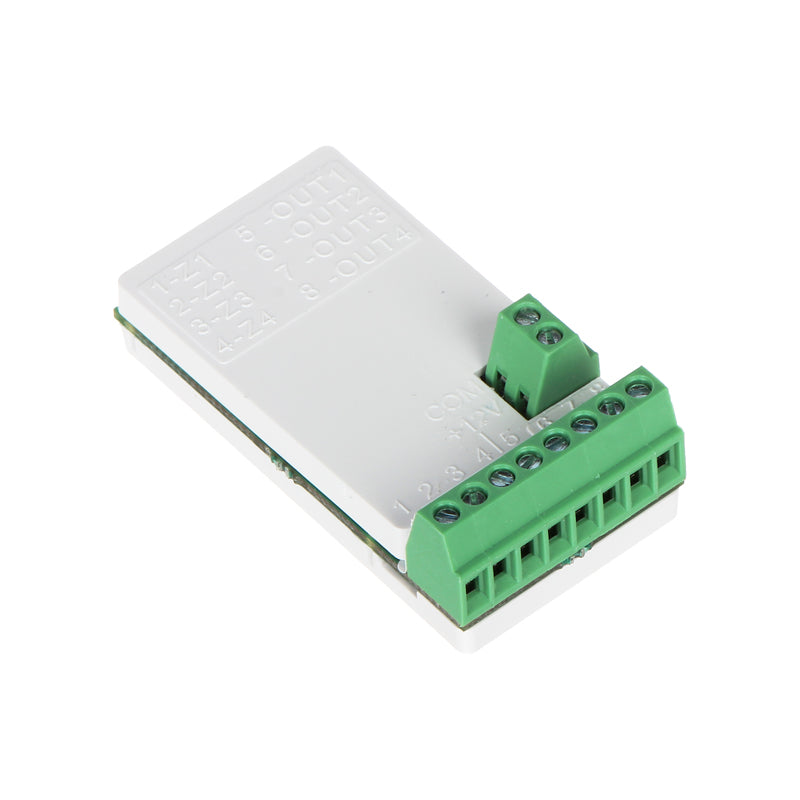

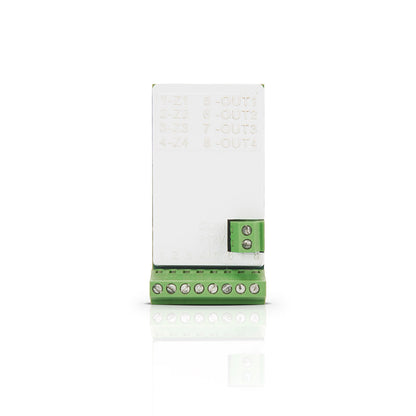

ACX-210 | Miniature wireless expander of wired zones/outputs

The ACX-210 integrates wired devices (detectors, sirens, etc.) into the ABAX/ABAX 2 wireless system. Compact in size, it’s ideal where space is limited while still offering flexible inputs/outputs and secure communication.

Inputs & Outputs

4 programmable zones (NO, NC, EOL, 2EOL/NO, 2EOL/NC)
4 programmable OC-type outputs

System Integration

Works with ABAX 2 controllers (ACU-220, ACU-280) & ARU-200 repeater
Compatible with ABAX controllers (ACU-120, ACU-270, ACU-250, ACU-100 v4.04+, INTEGRA 128-WRL, ARU-100)
Communication range:
- ABAX 2: up to 2000 m (ACU-220) / 1400 m (ACU-280)
- ABAX: up to 500 m

Features

Remote configuration & firmware updates (AES encrypted)
Compact design for easy installation
Power supply: 4–24 V DC

Technical Data

Operating temperature range	-10°C...+55°C
Supply voltage	4...24 V DC
Standby mode current consumption	30 mA
Max. current consumption	35 mA
Weight	10 g
Maximum humidity	93±3%
Operating frequency band	868,0 ÷ 868,6 MHz
Dimensions	21 x 41 x 13 mm
Environmental class according to EN50130-5	II
Complied with standards	EN 50130-4, EN 50130-5
Radio communication range (in open area) for ACU-120	up to 500 m
Radio communication range (in open area) for ACU-270	up to 500 m
Radio communication range (in open area) for ACU-220	up to 2000 m
Radio communication range (in open area) for ACU-280	up to 1400 m
Low-current outputs, OC type	50 mA / 12 V DC
