Satel

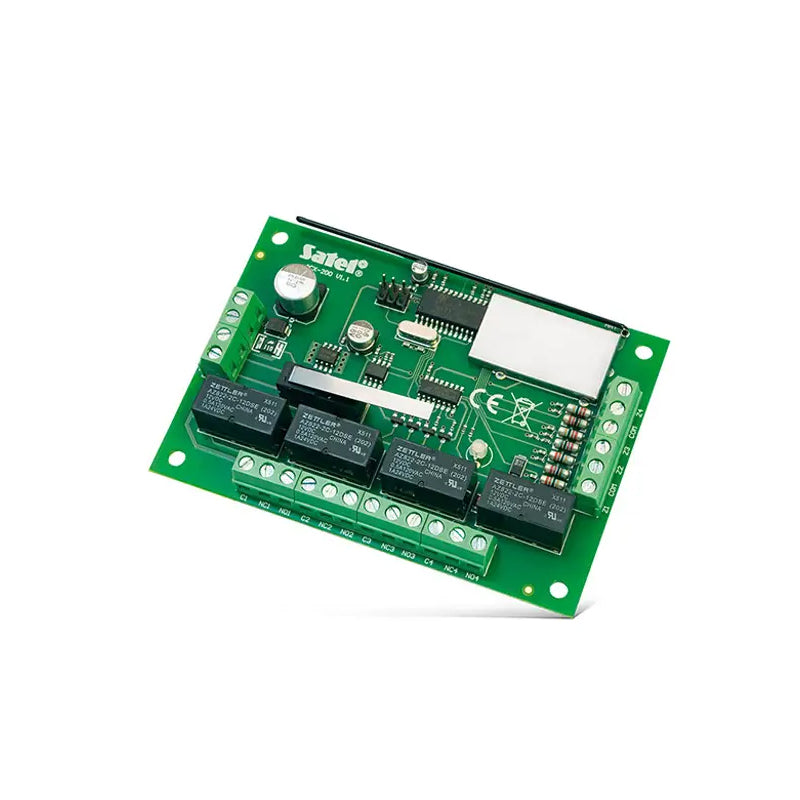

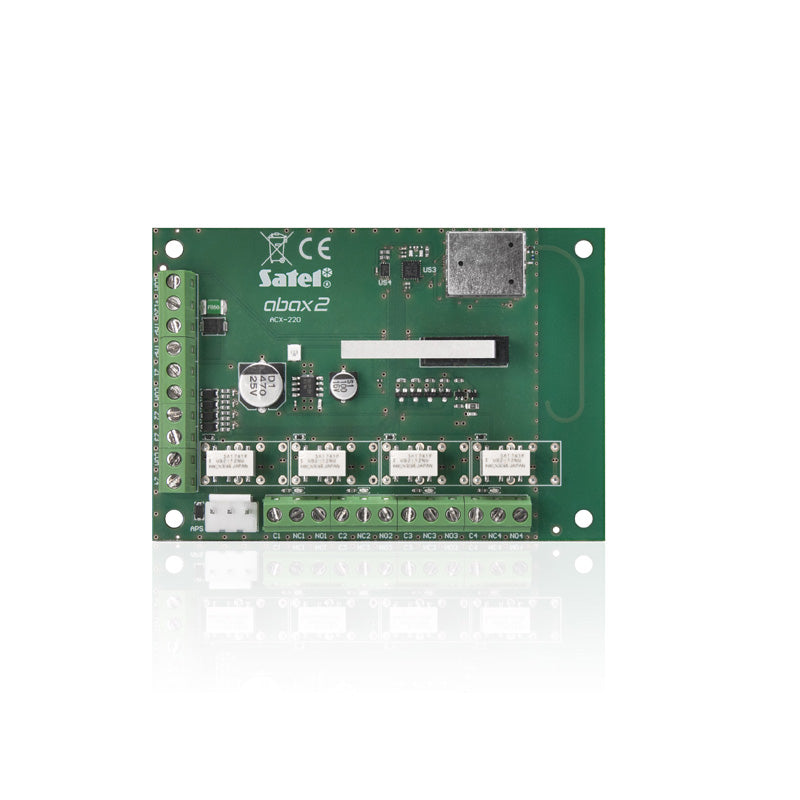

ACX-220

ACX-220

Wireless expander of wired zones/outputs

Regular price $98.77 NZD
Regular price Sale price $98.77 NZD
Sale Sold out

Product Dimension: 126 x 158 x 32 mm

ACX-220 | Wireless expander of wired zones/outputs

The ACX-220 allows wired devices (detectors, sirens, etc.) to be integrated into the ABAX/ABAX 2 wireless system. It provides flexible input/output options, remote configuration, and secure, encrypted communication.

Inputs & Outputs

  • 4 programmable zones (NO, NC, EOL, 2EOL/NO, 2EOL/NC)
  • 4 programmable relay outputs

System Integration

  • Works with ABAX 2 controllers (ACU-220, ACU-280) & ARU-200 repeater
  • Compatible with ABAX controllers (ACU-120, ACU-270, ACU-250, ACU-100 v4.04+, INTEGRA 128-WRL, ARU-100)
  • Communication range:
    • ABAX 2: up to 2000 m (ACU-220) / 1600 m (ACU-280)
    • ABAX: up to 500 m

Features

  • Remote configuration & firmware updates (AES encrypted)
  • Tamper protection (enclosure opening)
  • Powered by 12 V DC (works with APS-412, APS-612, APS-1412 supplies

Technical Data

Supply voltage 12 V DC
Enclosure dimensions 126 x 158 x 32 mm
Operating temperature range -10 °C...+55 °C
Standby mode current consumption 35 mA
Max. current consumption 120 mA
Weight 204 g
Maximum humidity 93±3%
Operating frequency band 868,0 ÷ 868,6 MHz
Environmental class according to EN50130-5 II
Complied with standards EN 50130-4, EN 50130-5, EN 50131-1, EN 50131-3, EN 50131-5-3
Security grade according to EN50131-3 Grade 2
Radio communication range (in open area) for ACU-120 up to 500 m
Radio communication range (in open area) for ACU-270 up to 500 m
Relay outputs (resistive load) 1000 mA / 24 VDC
Radio communication range (in open area) for ACU-220 up to 2000 m
Radio communication range (in open area) for ACU-280 up to 1600 m
