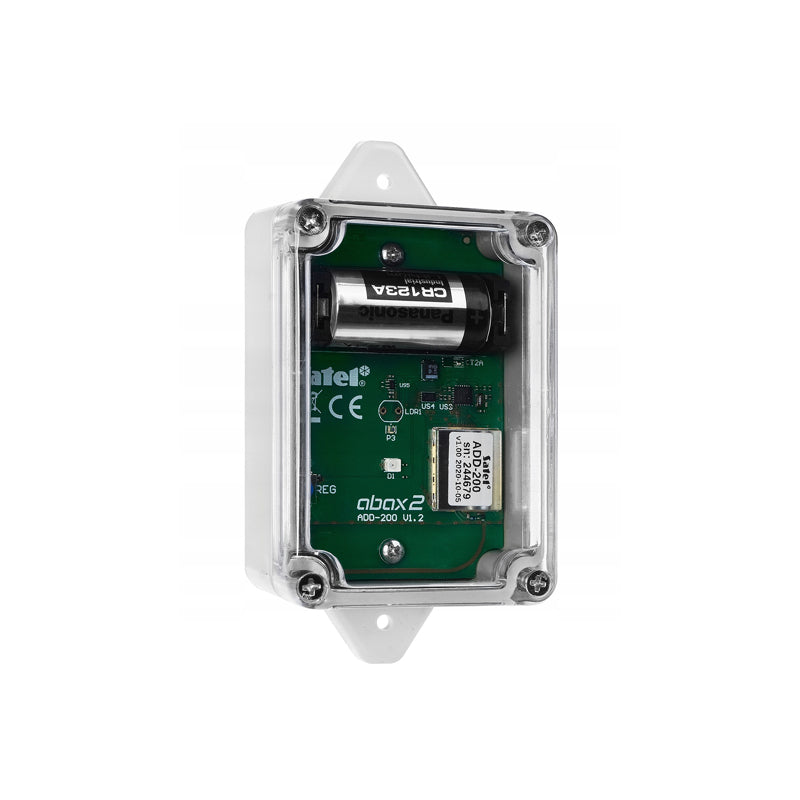

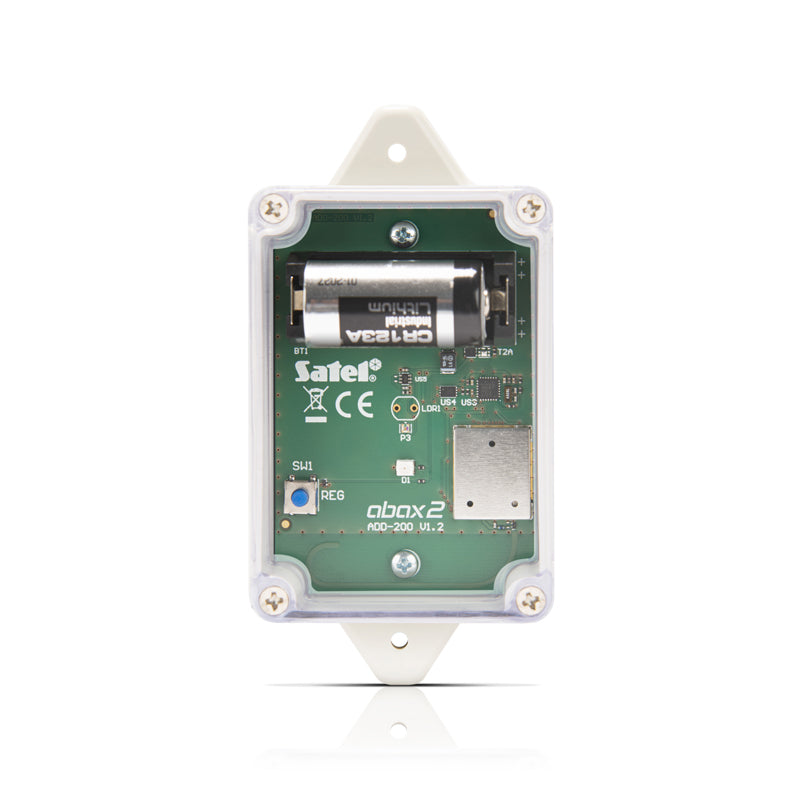

ADD-200 | Wireless outdoor dusk and temperature detector
The ADD-200 is a dual-function sensor for the ABAX 2 wireless system. It measures both light intensity and temperature, making it ideal for automating lighting, heating, or environmental control.
Dusk Detector
Light range: 2–250 lx
16 selectable thresholds
Resistant to short/accidental light changes
Temperature Detector
Range: –30 °C to +70 °C
Programmable thresholds
System & Performance
Works with ACU-220, ACU-280, ARU-200
Range: up to 2000 m (ACU-220) / 1600 m (ACU-280)
AES-encrypted two-way communication (868 MHz)
Automatic channel selection for interference-free operation
Remote configuration & firmware updates
Design & Power
LED indicator + battery status monitoring
ECO mode for extended battery life
Weatherproof, high-strength enclosure
Technical Data
Dimensions
58 x 115 x 34 mm
Light intensity measurement in range
2...250 lx
Temperature measurement range
-20°C...+55°C
Radio communication range (in open area) for ACU-280
up to 1600 m
Radio communication range (in open area) for ACU-220
