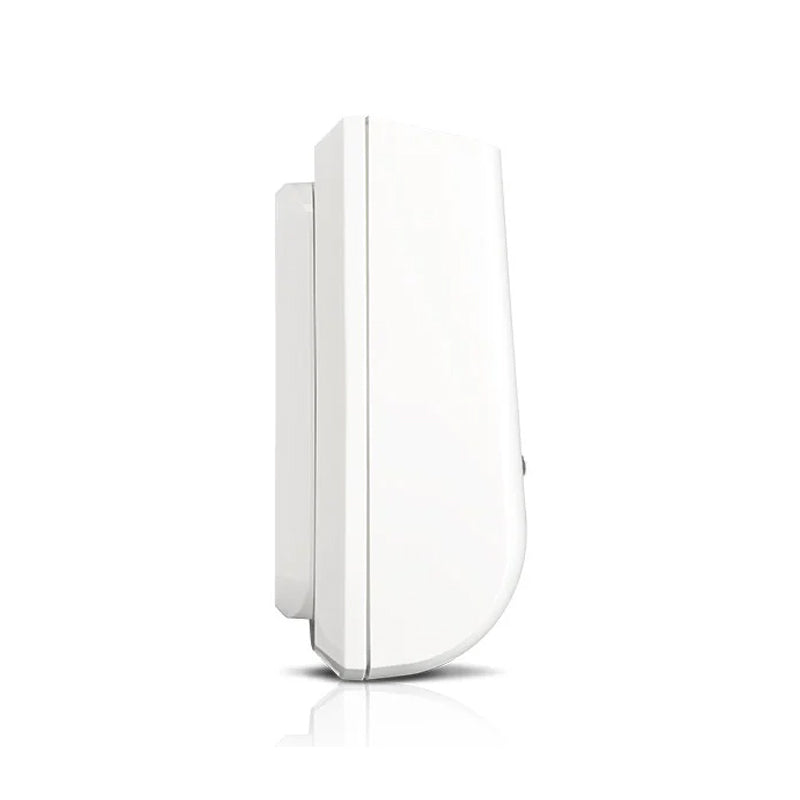

The AGATE is a wired PIR + MW curtain detector designed for perimeter protection. With narrow-beam coverage, durable housing, and anti-masking technology, it provides reliable detection for windows, doors, gates, and fence lines, even in harsh outdoor conditions.
Curtain-style detection: 10° angle, up to 14 m range (≈1 m swath)
Dual technology: PIR + microwave with adjustable sensitivities
Anti-masking protection (active IR) against covering/painting
Tamper protection against opening or removal
Weather resistant: IP54, UV-protected housing, operating from –40 °C to +55 °C
High immunity to false alarms with digital signal processing

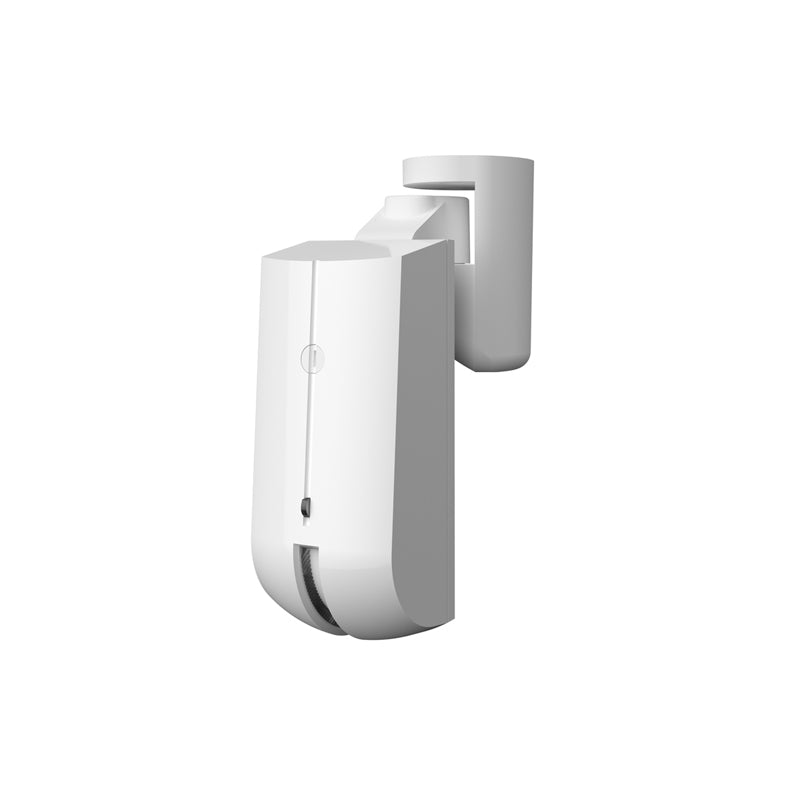

Mounting options: wall/ceiling, adjustable brackets (90° or offset)
Optional protective hood (HOOD A) for extra shielding
Technical Data
Supply voltage
12 V DC
Detected target velocity
0,2...3 m/s
Operating temperature range
-40...+55 °C
Recommended mounting height
2,4 m
Standby mode current consumption
21 mA
Max. current consumption
25 mA
Weight
92 g
Maximum humidity
93±3%
Dimensions
44 x 105 x 40 mm
Environmental class according to EN50130-5
IIIa
Alarm signaling time
2 s
Complied with standards
EN50131-1, EN50131-2-4,EN50130-4, EN50130-5
Microwave frequency
24,125 GHz
Warm-up period
45 s
IP code
IP54
Security grade (detector mounted directly to the wall)
