Satel

APD-200 Pet

Wireless PIR motion detector with pet immunity up to 20 kg

$97.12 NZD

Sale Sold out

Product Dimension: 62 x 137 x 42 mm

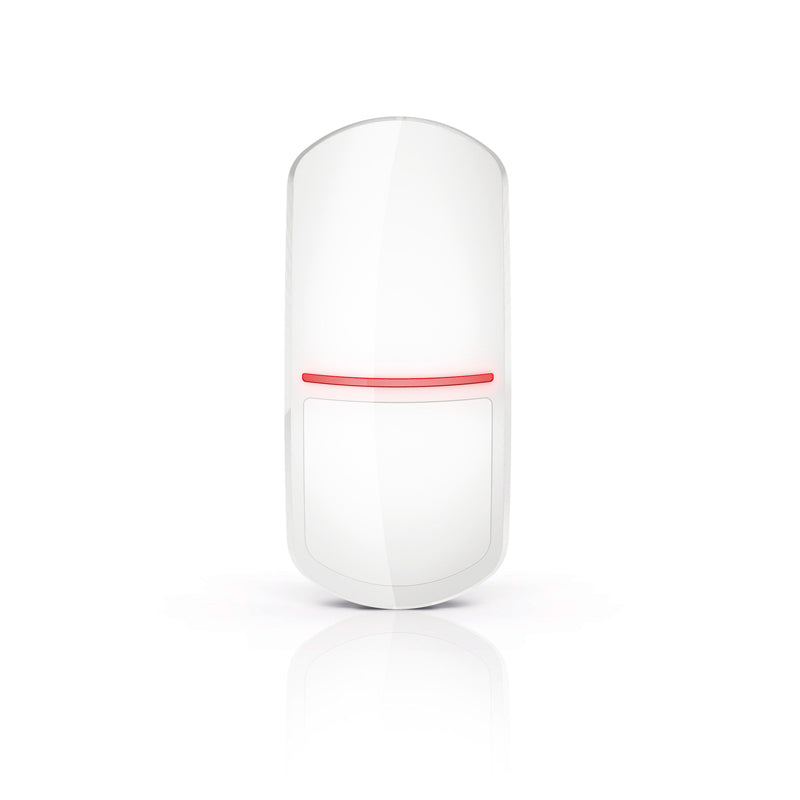

APD-200 Pet | Wireless PIR motion detector with pet immunity up to 20 kg

The APD-200 Pet is an EN 50131 Grade 2 certified wireless detector for the ABAX/ABAX 2 system. It delivers reliable motion detection while ignoring pets up to 20 kg, with remote setup, long communication range, and low power use.

Quad PIR sensor with advanced algorithm
Wide-angle lens: 14 m × 16 m, 83°
Pet immunity up to 20 kg
Dynamic temperature compensation
Compatible with ABAX 2 (ACU-220, ACU-280) & ABAX controllers
Range: up to 2000 m (ABAX 2) / 500 m (ABAX)
Remote config & AES-encrypted updates
ECO mode extends battery life up to 4×
CR123A 3 V battery with status monitoring
Tamper protection + LED test indicator

Technical Data

Environmental class according to EN50130-5	II
Maximum detection area	14 m x 16 m, 83°
Temperature measurement range	-10°C...+55°C
Radio communication range (in open area) for ACU-280	up to 1600 m
Radio communication range (in open area) for ACU-220	up to 2000 m
Radio communication range (in open area) for ACU-270	up to 500 m
Radio communication range (in open area) for ACU-120	up to 500 m
Security grade according to EN50131-2-2	Grade 2
Warm-up period	35 s
Temperature measurement accuracy	±1°C
Complied with standards	EN50131-1, EN50130-4, EN50130-5
Battery working time (in years)	up to 2
Dimensions	62 x 137 x 42 mm
Standby current consumption	70 µA
Battery	CR123A 3V
Operating frequency band	868,0÷ 868,6 MHz
Maximum humidity	93±3%
Weight	107 g
Max. current consumption	12 mA
Recommended mounting height	2,4 m
Operating temperature range	-10°C...+55°C
Detected target velocity	0,3...3 m/s
