Satel

APD-200

Wireless PIR motion detector

$93.52 NZD

Sale Sold out

Product Dimension: 62 x 137 x 42 mm

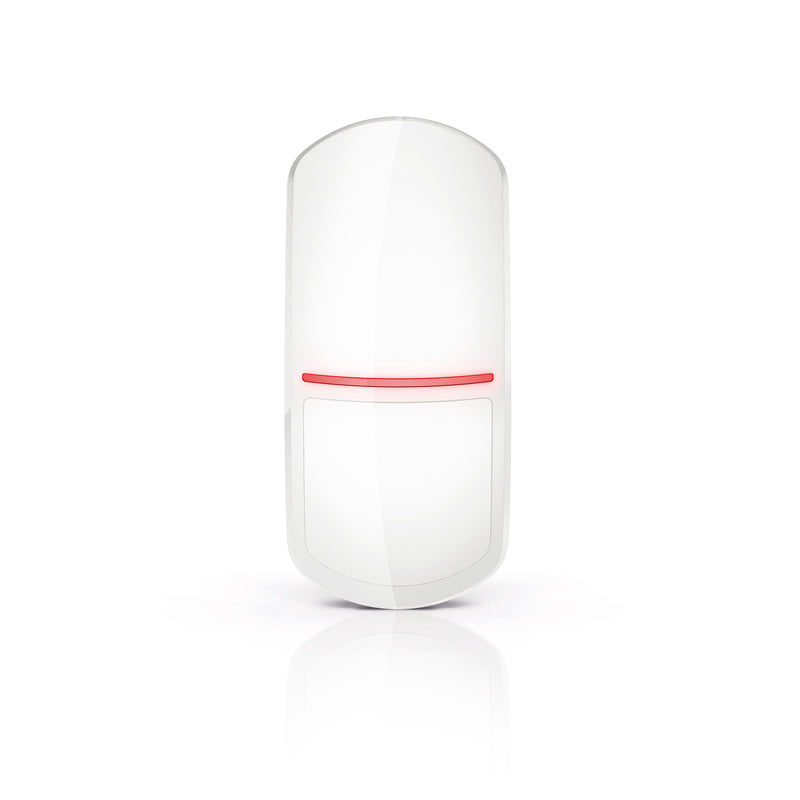

APD-200 | Wireless PIR motion detector

The APD-200 is a Grade 2 certified motion detector for ABAX/ABAX 2 systems. Using dual PIR sensors, advanced algorithms, and optional lens choices, it ensures reliable detection with flexibility for different site needs.

Dual PIR (double pyroelement) with wide-angle lens (15 m × 24 m, 90°)
Optional lenses: Curtain (CT-CL) or Long-range (LR-CL)
Adjustable mirror for creep-zone protection
Digital signal processing & temperature compensation
Compatible with ABAX 2 (ACU-220, ACU-280) & ABAX controllers
Communication range: up to 2000 m (ABAX 2) / 500 m (ABAX)
Remote configuration & AES-encrypted firmware updates
ECO mode extends battery life up to 4×
CR123A 3 V battery with status monitoring
LED test indicator for easy setup
Wall/ceiling adjustable mount + tamper protection

Technical Data

Environmental class according to EN50130-5	II
Maximum detection area	15 m x 24 m, 90°
Security grade according to EN50131-2-4 (detector mounted directly to the wall)	Grade 2
Temperature measurement range	-10°C...+55°C
Radio communication range (in open area) for ACU-280	up to 1600 m
Radio communication range (in open area) for ACU-220	up to 2000 m
Radio communication range (in open area) for ACU-270	up to 500 m
Radio communication range (in open area) for ACU-120	up to 500 m
Warm-up period	35 s
Temperature measurement accuracy	±1°C
Complied with standards	EN50131-1, EN50130-4, EN50130-5
Battery working time (in years)	up to 2
Dimensions	62 x 137 x 42 mm
Standby current consumption	70 µA
Battery	CR123A 3V
Operating frequency band	868,0 ÷ 868,6 MHz
Maximum humidity	93±3%
Weight	132 g
Max. current consumption	12 mA
Recommended mounting height	2...2,4 m
Operating temperature range	-10°C...+55°C
Detected target velocity	0,3...3 m/s
