Satel

APMD-250

Wireless dual-tech motion detector

$125.06 NZD

Sale Sold out

Product Dimension: 62 x 137 x 42 mm

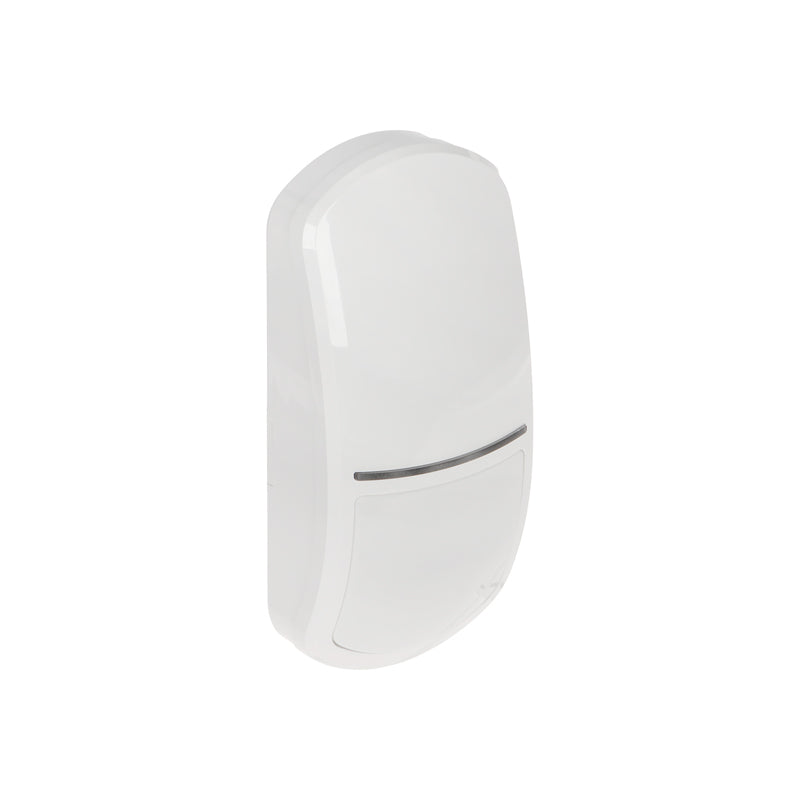

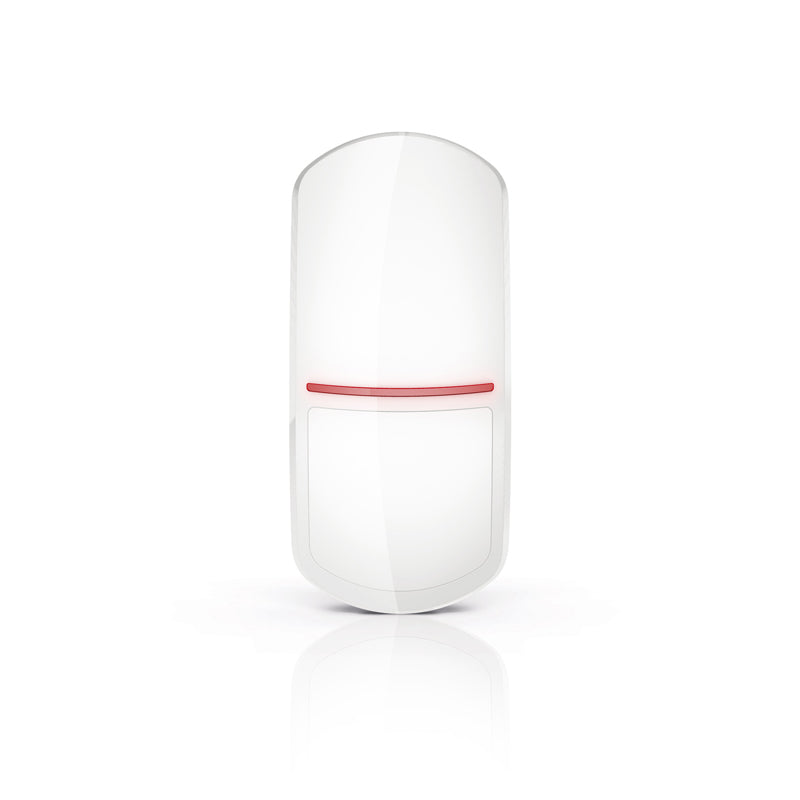

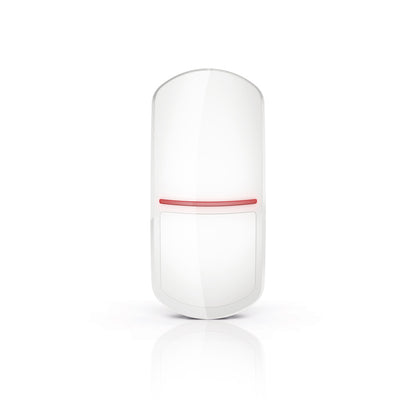

APMD-250 | Wireless dual-tech motion detector

The APMD-250 is an EN 50131 Grade 2 certified wireless dual-technology (PIR and microwave) motion detector for ABAX 2/ABAX systems. It features independently adjustable sensitivity, advanced digital processing, and dynamic temperature compensation for high immunity to false alarms within a 15m x 24m, 90° detection area. Its wide-angle lens can be swapped for curtain or long-range options, and creep zone control is available.

Certified to EN 50131 Grade 2. Dual-tech motion detector with advanced reliability and low false alarm rate.

Detection Technology

PIR (infrared, double pyroelement) + MW (microwave) sensors
Wide-angle lens (15 m x 24 m, 90°)
Optional lenses: Curtain (CT-CL) or Long-range (LR-CL)
Adjustable mirror for creep-zone protection

Performance

Advanced digital signal processing
Dynamic temperature compensation
High immunity to false alarms
Independent PIR/MW sensitivity adjustment

System Integration

Works with ABAX 2 controllers (ACU-220, ACU-280) & ARU-200 repeater
Compatible with ABAX controllers (ACU-120, ACU-270, ACU-250, ACU-100 v4.04+, INTEGRA 128-WRL, ARU-100)
Communication range:
- ABAX 2: up to 2000 m (ACU-220) / 1600 m (ACU-280)
- ABAX: up to 500 m

Features

Remote configuration & firmware updates (AES-encrypted)
Built-in temperature sensor (-10°C to +55°C)
LED test-mode indicator
ECO option (ABAX 2) extends battery life up to 4x
Low power consumption, CR123A 3 V battery with status monitoring

Design & Protection

Tamper protection (opening/removal)
Adjustable wall/ceiling mounting bracket

Technical Data

Environmental class according to EN50130-5	II
Maximum detection area	15 m x 24 m, 90°
Security grade according to EN50131-2-4 (detector mounted directly to the wall)	Grade 2
Temperature measurement range	-10°C...+55°C
Radio communication range (in open area) for ACU-280	up to 1600 m
Radio communication range (in open area) for ACU-220	up to 2000 m
Radio communication range (in open area) for ACU-270	up to 500 m
Radio communication range (in open area) for ACU-120	up to 500 m
Warm-up period	40 s
Microwave frequency	24,125 GHz
Temperature measurement accuracy	±1°C
Complied with standards	EN50131-1, EN50130-4, EN50130-5
Battery working time (in years)	up to 2
Dimensions	62 x 137 x 42 mm
Standby current consumption	75 µA
Battery	CR123A 3V
Operating frequency band	868,0 ÷ 868,6 MHz
Maximum humidity	93±3%
Weight	152 g
Max. current consumption	13 mA
Recommended mounting height	2...2,4 m
Operating temperature range	-10°C...+55°C
Detected target velocity	0,3...3 m/s
