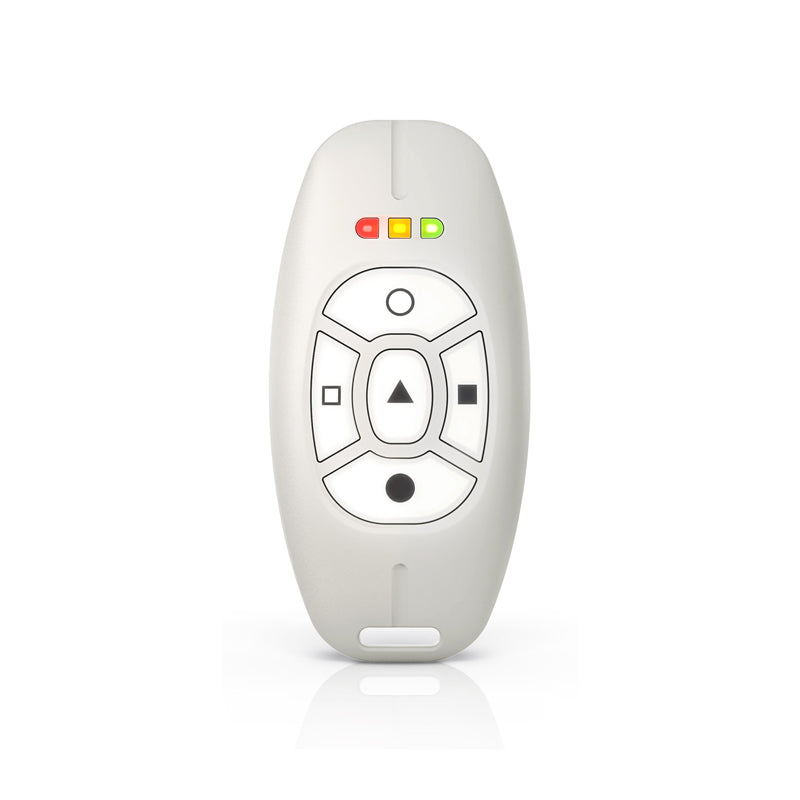

The APT-200 keyfob offers remote control for alarm systems and building automation within the ABAX 2/ABAX two-way wireless system. It features five backlit buttons for up to six programmable functions, providing audible and visual confirmation of commands via a piezoelectric transducer and three customizable LEDs.
Compatible with ABAX 2 controllers (ACU-220, ACU-280, ARU-200) and ABAX controllers (ACU-120, ACU-270, ACU-250, ACU-100, INTEGRA 128-WRL, ARU-100), it boasts open-area ranges up to 1200m (ACU-220) or 600m (ACU-280), and 150m (ABAX). The keyfob supports remote firmware updates and is powered by a CR2032 3V battery with low battery indication. Communication in ABAX 2 is AES-encrypted.
Technical Data
Operating temperature range
-10°C...+55°C
Weight
30 g
Maximum humidity
93±3%
Operating frequency band
868,0 ÷ 868,6 MHz
Battery
CR 2032 3V
Dimensions
38 x 78 x 16 mm
Environmental class according to EN50130-5
II
Radio communication range (in open area) for ACU-120
up to 150 m
Radio communication range (in open area) for ACU-270
up to 150 m
Radio communication range (in open area) for ACU-220
up to 1200 m
Radio communication range (in open area) for ACU-280
