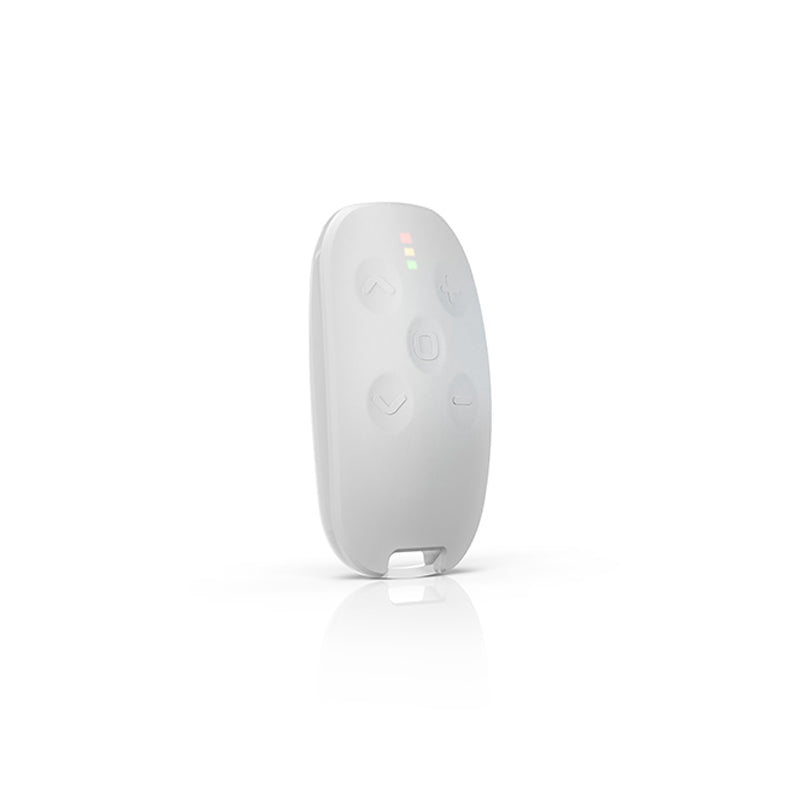

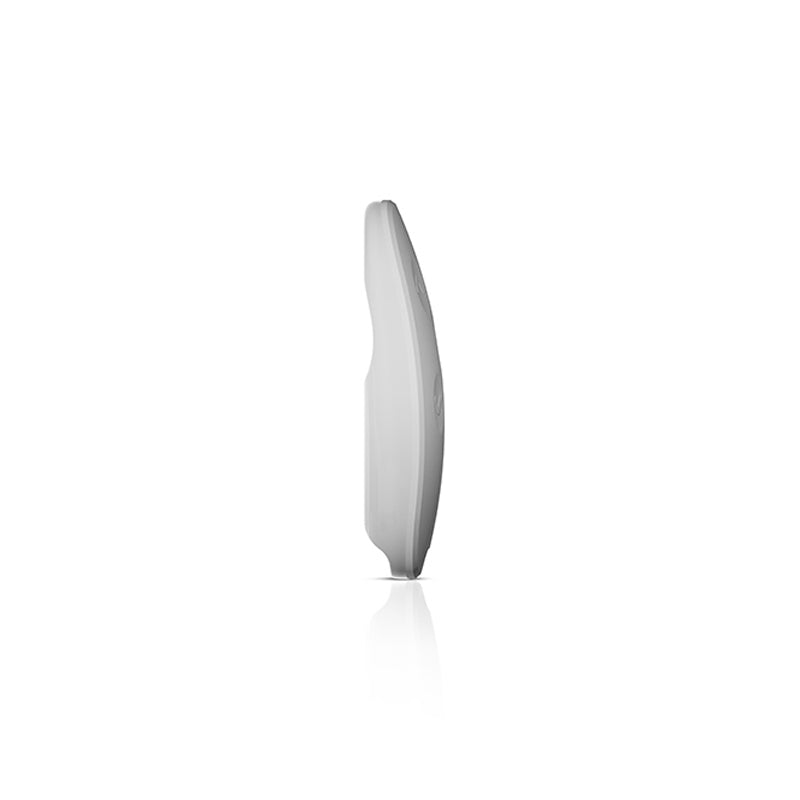

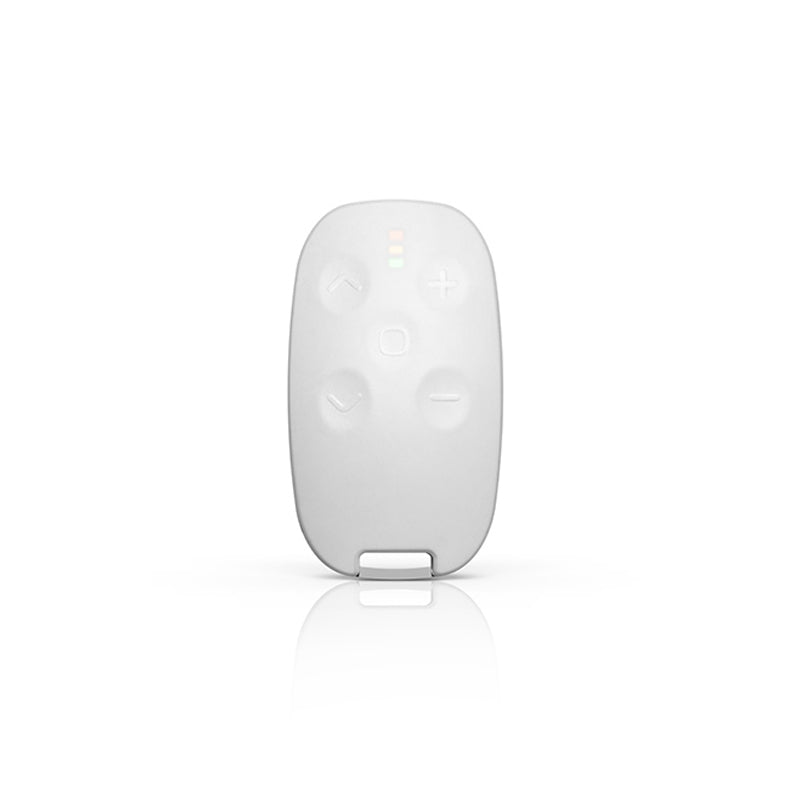

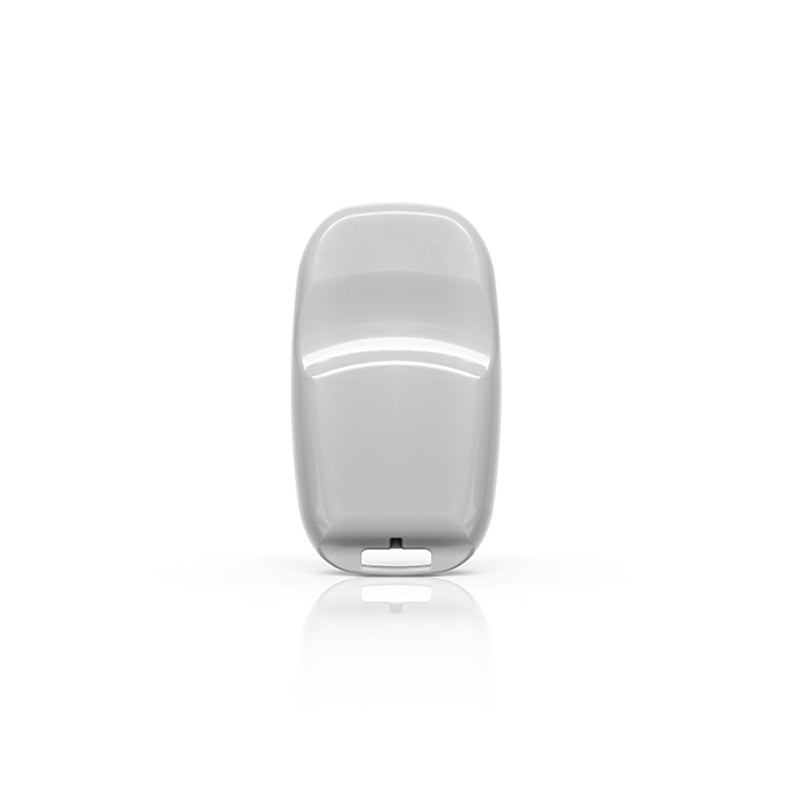

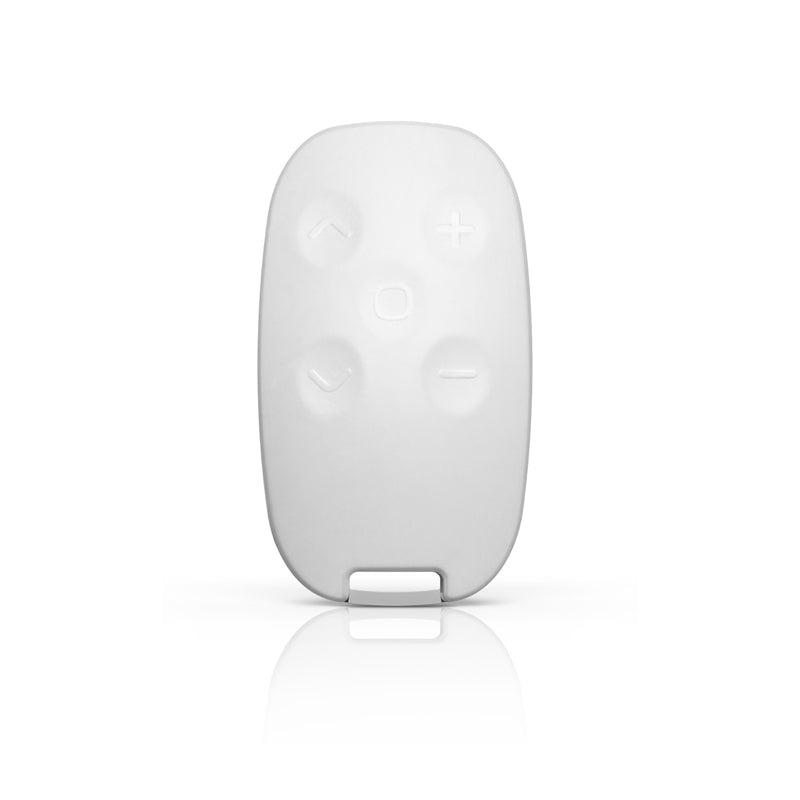

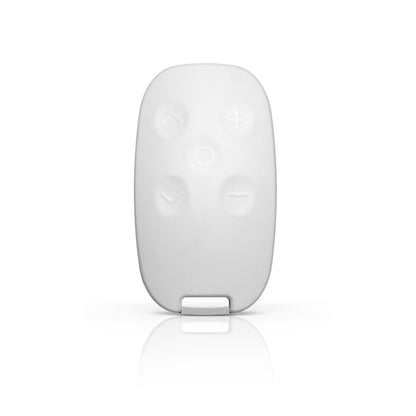

The APT-210 keyfob offers remote control for alarm systems and building automation within the ABAX 2/ABAX two-way wireless system. It utilises encrypted two-way radio communication on the 868 MHz band (AES standard) with transmission channel diversity across four channels, ensuring interference-free operation.
Equipped with five buttons for up to six functions, three LEDs for system status indication, and a built-in sounder, the keyfob provides clear feedback. It supports ABAX 2 controllers (ACU-220/ACU-280, firmware v6.08+) and ABAX controllers (ACU-120/ACU-270, firmware v5.04+), as well as the INTEGRA 128-WRL control panel (firmware v1.19+, ABAX processor v3.10+). Battery status is continuously monitored.
Technical Data
Operating temperature range
-10°C...+55°C
Weight
25 g
Maximum humidity
93±3%
Operating frequency band
868,0 ÷ 868,6 MHz
Battery
CR 2032 3V
Dimensions
37 x 66 x 14 mm
Environmental class according to EN50130-5
II
Radio communication range (in open area) for ACU-220
up to 600 m
Radio communication range (in open area) for ACU-280
