Satel

AQUA Plus

Digital PIR motion detector

$21.31 NZD

Sale Sold out

Product Dimension: 63 x 96 x 49 mm

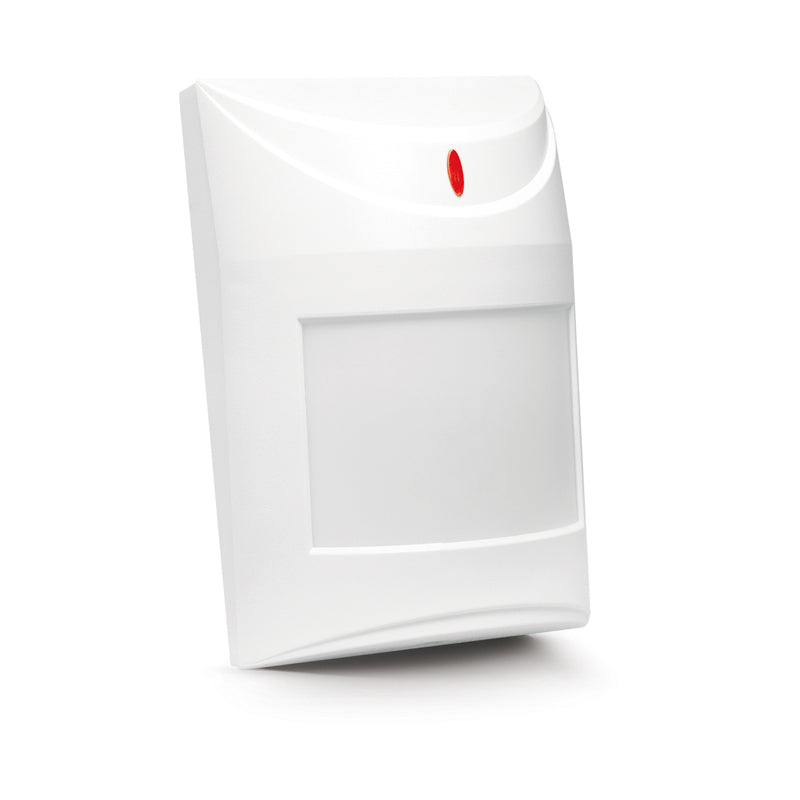

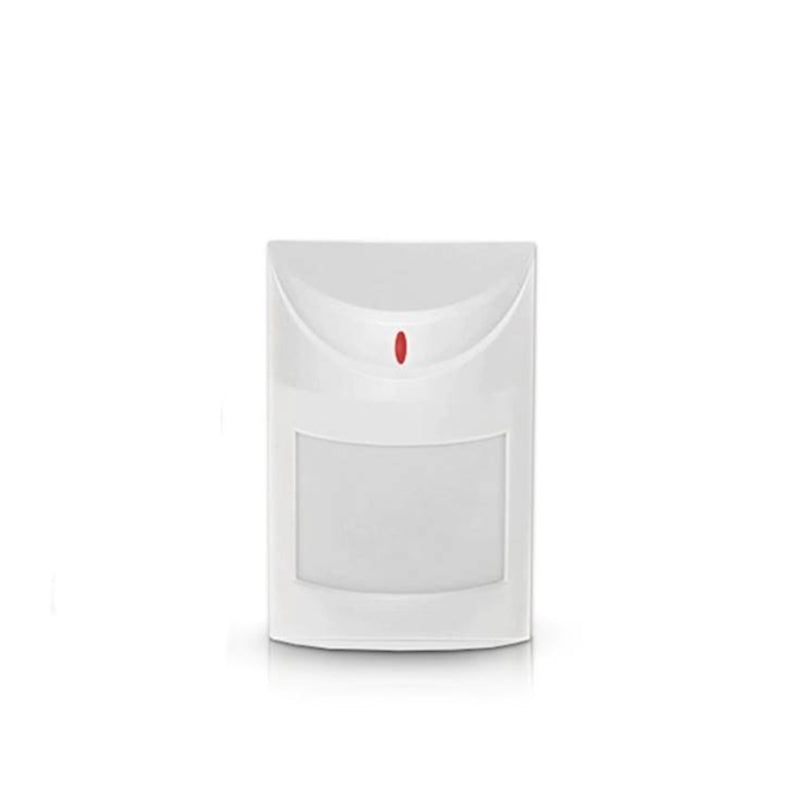

AQUA Plus | Digital PIR motion detector

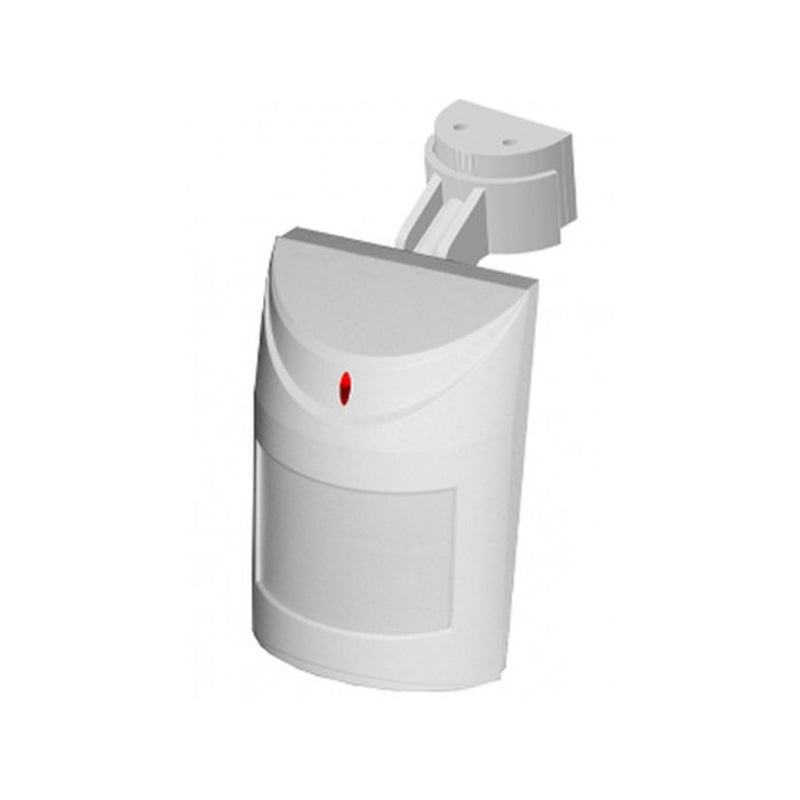

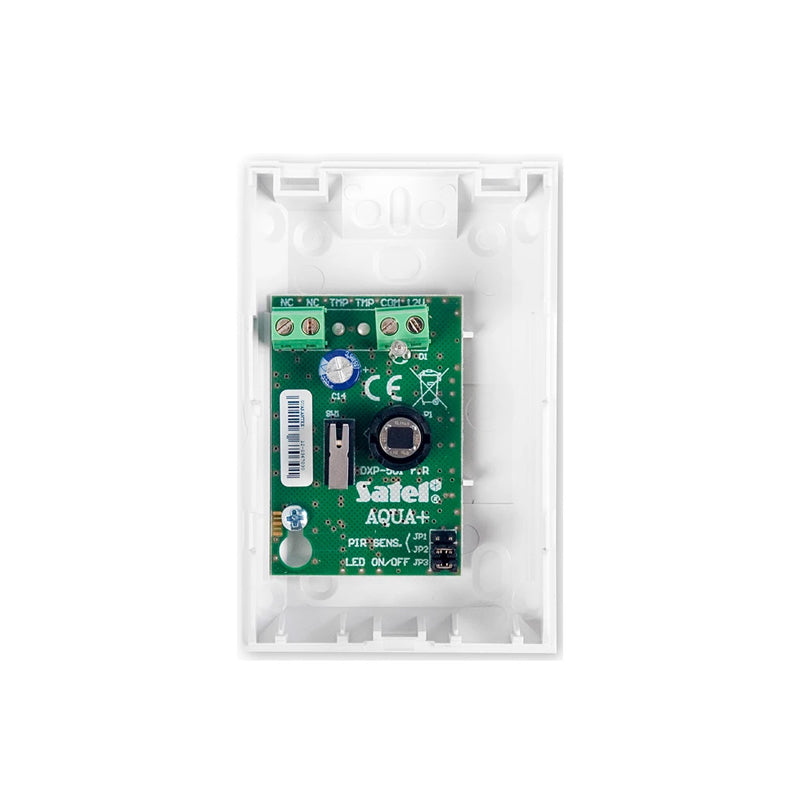

The AQUA Plus is a digital passive infrared (PIR) detector meeting EN-50131 Grade 2 requirements. It features a dual-element PIR sensor and a fully digital motion detection algorithm for high sensitivity and interference immunity through two-track signal analysis and temperature compensation. Its interchangeable Fresnel lens and three-step sensitivity control allow customisation for various user needs. The detector includes a built-in tamper switch for enclosure protection and EOL resistors on the PCB for simplified installation. An adjustable mounting bracket is also included.

Technical Data

Supply voltage	12 V DC
Detected target velocity	0,3…3 m/s
Enclosure dimensions	63 x 96 x 49 mm
Operating temperature range	-30…+55 °C
Recommended mounting height	2,4 m
Standby mode current consumption	10 mA
Max. current consumption	12 mA
Weight	90 g
Relay contacts rated load (resistive)	40 mA / 16 V DC
Environmental class according to EN50130-5	II
Alarm signaling time	2 s
Complied with standards	EN50130-5, EN50131-1, EN50131-2-2, EN50130-4
Security grade according to EN50131-2-6	Grade 2
