Satel

ARU-200

Radio signal retransmitter

$179.84 NZD

Sale Sold out

Product Dimension: 87 x 104 mm

ARU-200 | Radio signal retransmitter

The ARU-200 is a radio signal retransmitter designed to extend the wireless communication range of your ABAX 2 system.

Expands Range: Retransmits signals for up to 46 wireless devices.
Secure Communication: Utilises encrypted (AES standard) two-way radio communication in the 868 MHz band.
Interference-Free: Features 4 transmission channels for automatic selection, ensuring clear signals without interference.
Remote Management: Supports remote firmware upgrades.
Status Indicators: LED indicators display the retransmitter's status.
Tamper Protection: Includes safeguards against unauthorised enclosure opening.
Flexible Power:
- Powered by 230V AC with a built-in switching-mode power supply.
- Features short-circuit protection for the power input.
- Includes a battery as an emergency power source.
- Equipped with a battery charging system and discharge monitoring/disconnection.
Controller Compatibility: Supported by ACU-220 and ACU-280 controllers.

Technical Data

Enclosure dimensions	126 x 158 x 32 mm

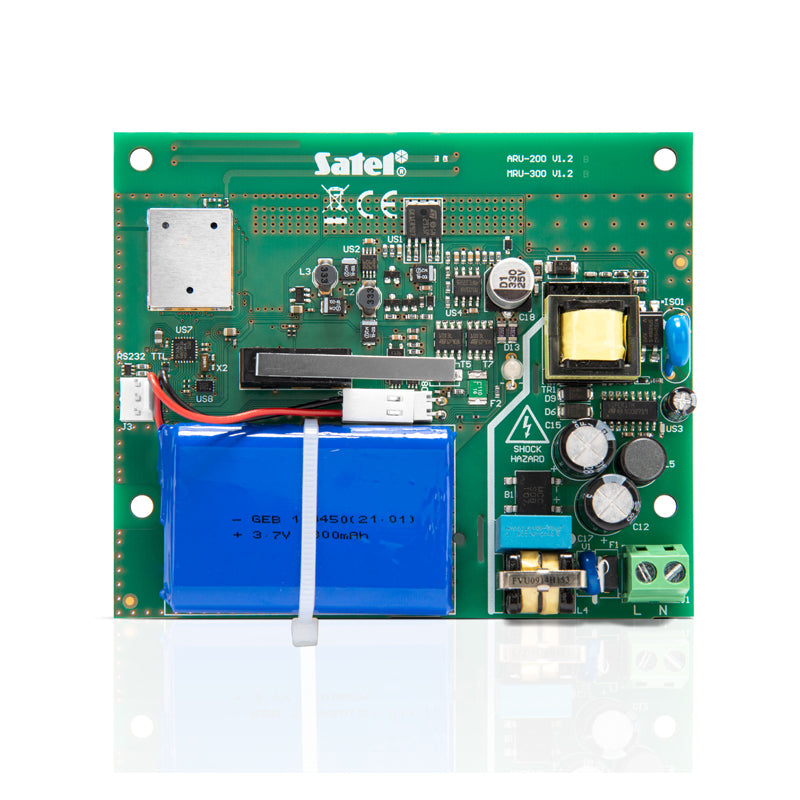

Board dimensions	87 x 104 mm
Operating temperature range	-10°C...+55°C
Standby mode current consumption	8 mA
Max. current consumption	15 mA
Weight	256 g
Maximum humidity	93±3%
Operating frequency band	868,0 ÷ 868,6 MHz
Environmental class according to EN50130-5	II
Supply voltage	230 V AC, 50-60 Hz
Radio communication range (in open area) for ACU-220	up to 2000 m
Radio communication range (in open area) for ACU-280	up to 1600 m
