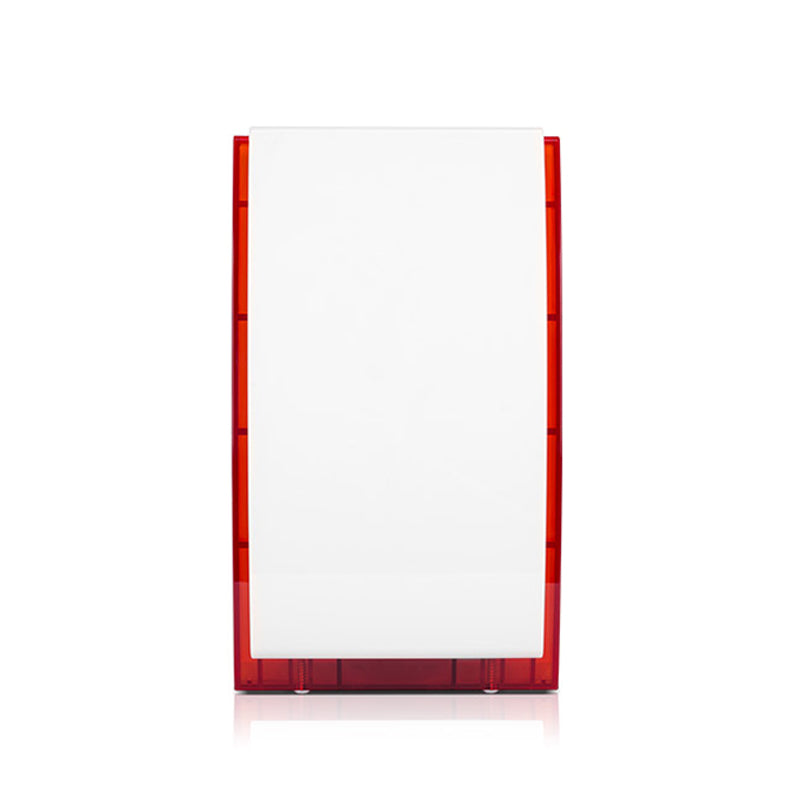

ASP-200 R | Outdoor wireless acoustic-optical siren
The ASP-200 R is a durable outdoor wireless siren designed to deliver loud acoustic alerts and bright LED visual signals during alarm events. Built for the ABAX 2/ABAX wireless system, it offers long-range communication, strong weather resistance, and reliable Grade 2 security performance — making it ideal for protecting homes, businesses, and outdoor areas.
Key Features:
Outdoor wireless siren with both acoustic and optical signaling
Works with ABAX 2 and ABAX two-way wireless systems
EN 50131 Grade 2 certified for security performance
Independent sound + LED light activation
Piezoelectric acoustic transducer with 4 selectable tones
LED indicators for optical signalling
Long wireless range:
ABAX 2: up to 2000 m (ACU-220) / 1600 m (ACU-280)
ABAX: up to 500 m
Remote configuration and firmware updates
AES-encrypted communication (in ABAX 2)
Low power consumption + continuous battery status monitoring
ECO mode (ABAX 2 only) extends battery life up to 4× longer
Powered by BAT-ER-3.6 (3.6 V, 13 Ah) lithium battery
Durable, high-impact polycarbonate enclosure
Weather-protected electronics; operates from -40°C to +55°C
Tamper protection (cover open + removal from mount)
Built-in spirit level for easier installation
Colour options: Red (ASP-200 R) and Blue (ASP-200 BL)
Technical Data:
Battery working time (in years)
up to 2,5
Operating temperature range
-40°C...+55°C
Max. current consumption
480 mA
Weight
762 g
Maximum humidity
93±3%
Operating frequency band
868,0 ÷ 868,6 MHz
Battery
ER34615 3,6V
Standby current consumption
650 µA
Dimensions
148 x 254 x 64 mm
Environmental class according to EN50130-5
IIIA
Complied with standards
EN 50130-4, EN 50130-5, EN 50131-1, EN 50131-4, EN50131-5-3
Sound pressure level at 1m
up to 105 dB
Radio communication range (in open area) for ACU-120
up to 500 m
Radio communication range (in open area) for ACU-270
up to 500 m
Radio communication range (in open area) for ACU-220
up to 2000 m
Radio communication range (in open area) for ACU-280
