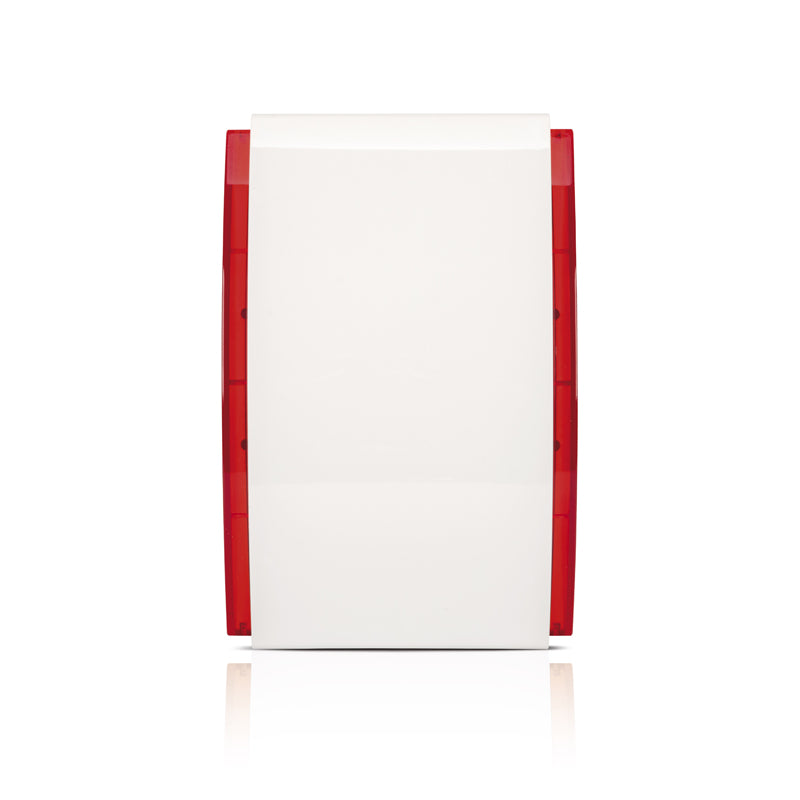

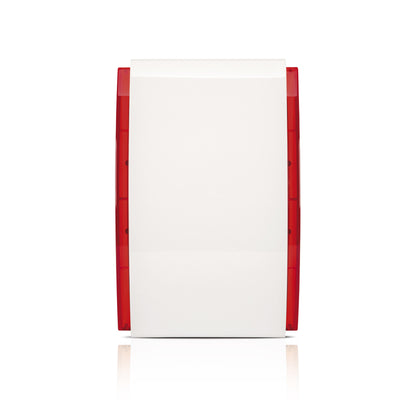

ASP-215 R | Indoor wireless acoustic-optical siren
The ASP-215 R is an EN 50131 Grade 2 compliant wireless siren for ABAX 2/ABAX systems, providing acoustic and optical alarms.
Alarm Output: Features a piezoelectric transducer for three selectable tones and LEDs for independent optical signals.
Remote Management: Supports remote configuration and firmware updates; ABAX 2 communication is AES encrypted.
Power & Efficiency: Powered by a CR123A 3V battery with low consumption and an "ECO" option (ABAX 2 only) for quadrupled battery life. Battery status is continuously monitored.
Durability: Housed in high-impact polycarbonate with tamper protection against opening and removal.
Compatibility: Works with various ABAX 2 (up to 2000m range) and ABAX (up to 500m range) controllers and repeaters. Includes a built-in temperature sensor.
Technical Data
Environmental class according to EN50130-5
II
Security grade according to EN50131-1
Grade 2
Temperature measurement range
-10°C...+55°C
Radio communication range (in open area) for ACU-280
up to 1600 m
Radio communication range (in open area) for ACU-220
up to 2000 m
Radio communication range (in open area) for ACU-270
up to 500 m
Radio communication range (in open area) for ACU-120
up to 500 m
Sound pressure level at 1m
up to 105 dB
Temperature measurement accuracy
±1°C
Complied with standards
EN 50130-4, EN 50130-5, EN 50131-1, EN 50131-4, EN50131-5-3
