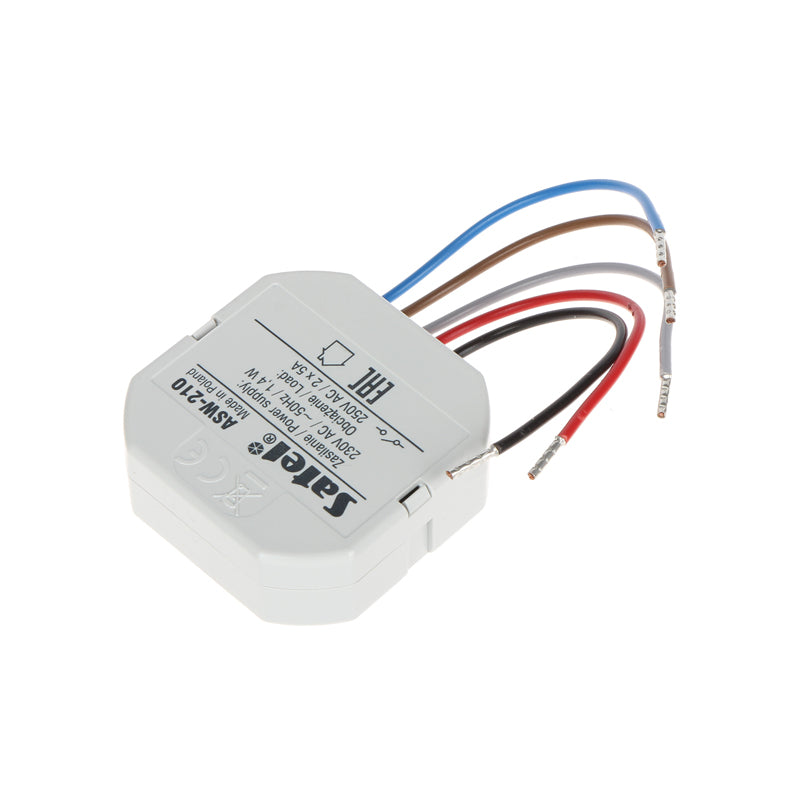

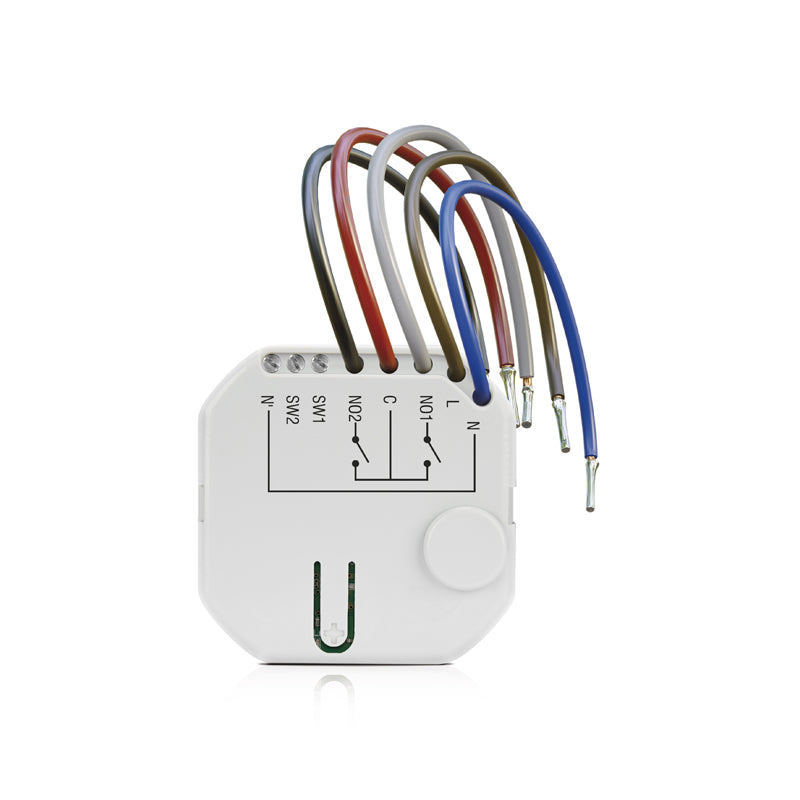

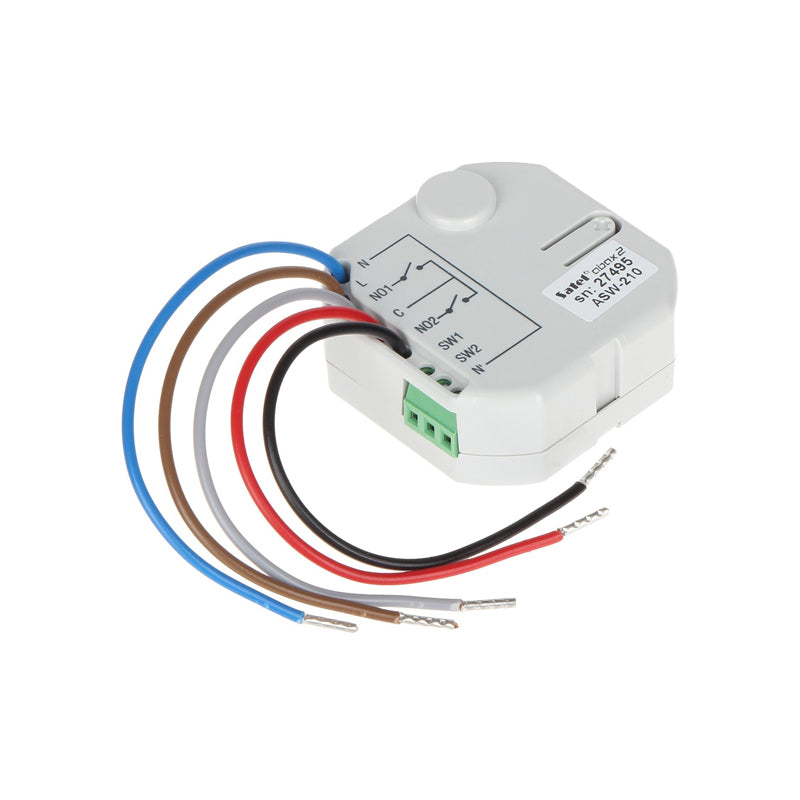

ASW-210 | Wireless two-channel 230 V AC in-wall controller
The ASW-210 is a compact, in-wall wireless module for remote 230V AC device control within ABAX 2/ABAX systems.
Functionality: Enables remote on/off switching of devices and offers two control inputs for external switches (mono- or bistable).
Secure Communication: ABAX 2 communication is AES-encrypted.
Compatibility & Range:
ABAX 2: Works with ACU-220/ACU-280 controllers and ARU-200 repeater, offering up to 1000m range.
ABAX: Compatible with ACU-120/ACU-270/ACU-250/ACU-100 (v4.04+) controllers, INTEGRA 128-WRL, and ARU-100 repeater, with up to 500m range. (ASW-210 must be v1.01+).
Management: Supports remote configuration and firmware updates.
Technical Data
Maximum switching power, AC1
1250 VA
Dimensions (Variant B)
47 x 47 x 22 mm
Dimensions (Variant A)
47 x 47.4 x 22 mm
Supply voltage
230 V AC, 50 Hz
Standby power consumption
0,47 W
Contacts resistance
≤ 100 mΩ
Electrical endurance (number of switching cycles), AC1 (360 cycles/h)
>°10⁵
Minimum switching power
50 mW
Load capacity of relay outputs in AC1 category
5 A / 250 V AC
Rated contact voltage
250 V AC
Radio communication range (in open area) for ABAX
up to 500 m
Operating temperature range
-10°C...+55°C
Contact rating
5 A
Wetting current
10 mA
Radio communication range (in open area) for ACU-280
up to 1000 m
Radio communication range (in open area) for ACU-220
