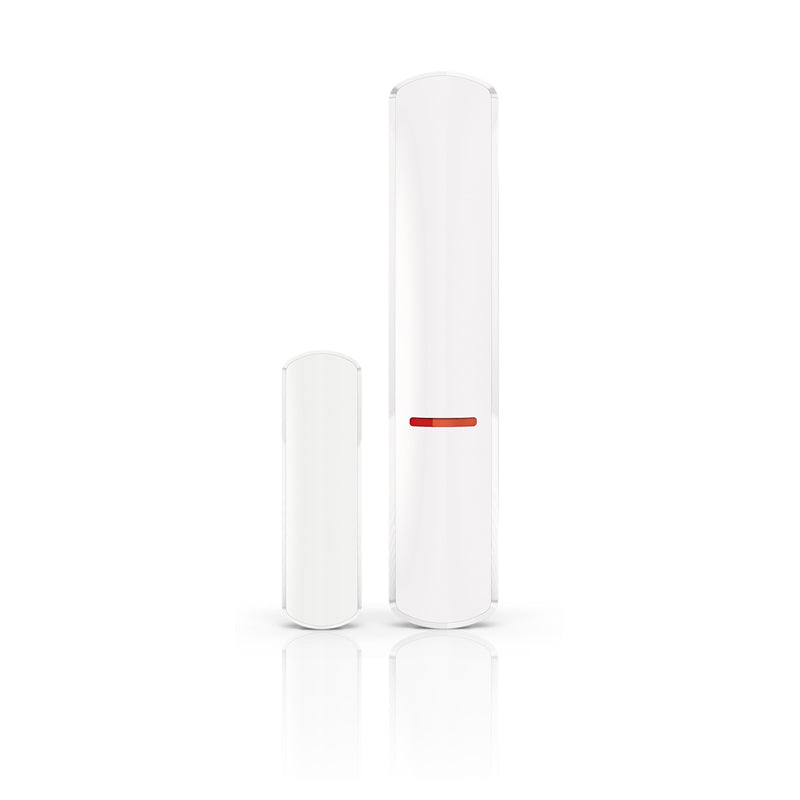

The AXD-200 is an EN 50131 Grade 2 compliant, multifunction wireless detector for ABAX 2/ABAX systems
Versatile Modes: Functions as a magnetic contact (single or dual channel, with expander options), magnetic contact with roller shutter input, shock detector with magnetic contact, reorientation detector, temperature detector, or flood detector (with external probe). Mode selection is flexible during setup
Energy Efficient: Powered by a CR123A 3V lithium battery with low consumption and an "ECO" option (ABAX 2) extending life up to four times.
Remote & Secure: Supports remote configuration and firmware updates.ABAX 2 communication is AES encrypted.
Compatibility & Range: Works with various ABAX 2 (up to 2000m) and ABAX (up to 500m) controllers and repeaters.
Durability: Includes tamper protection.Can be used outdoors with an OPX-1 enclosure and OPXM-1 magnet.Available in white, brown, and dark gray
Technical Data
M1 input sensitivity (NC)
240 ms
Battery
CR123A 3V
Battery working time (in years)
up to 2
Temperature measurement accuracy
±1°C
Environmental class according to EN50130-5
II
Maximum humidity
93±3%
Max. current consumption
7 mA
Weight
59 g
Operating frequency band
868,0 ÷ 868,6 MHz
Standby current consumption
55 µA
Temperature measurement range
-10°C...+55°C
Complied with standards
EN 50130-4, EN 50130-5, EN 50131-1, EN50131-2-6,EN50131-5-3
Security grade according to EN50131-2-6
Grade 2
Maximum gap - surface magnet (magnetic contact)
20 mm
Maximum gap - recessed magnet (magnetic contact)
18 mm
Detector enclosure dimensions
20 x 102 x 23 mm
Magnet enclosure dimensions - surface mounting
15 x 52 x 6 mm
Magnet pad dimensions - recessed mounting
ø10 x 28 mm
Magnet pad dimensions - surface mounting
15 x 52 x 6 mm
Operating temperature range
-10°C...+55°C
Shock detection range (depending on the type of mounting surface)
up to 3 m
Radio communication range (in open area) for ACU-120
up to 500 m
Radio communication range (in open area) for ACU-220
up to 2000 m
Radio communication range (in open area) for ACU-270
up to 500 m
Radio communication range (in open area) for ACU-280
