Satel

B-1M

Suraface-mounted contact

$8.93 NZD

Sale Sold out

Product Dimension: 51 x 9 x 13,5 mm

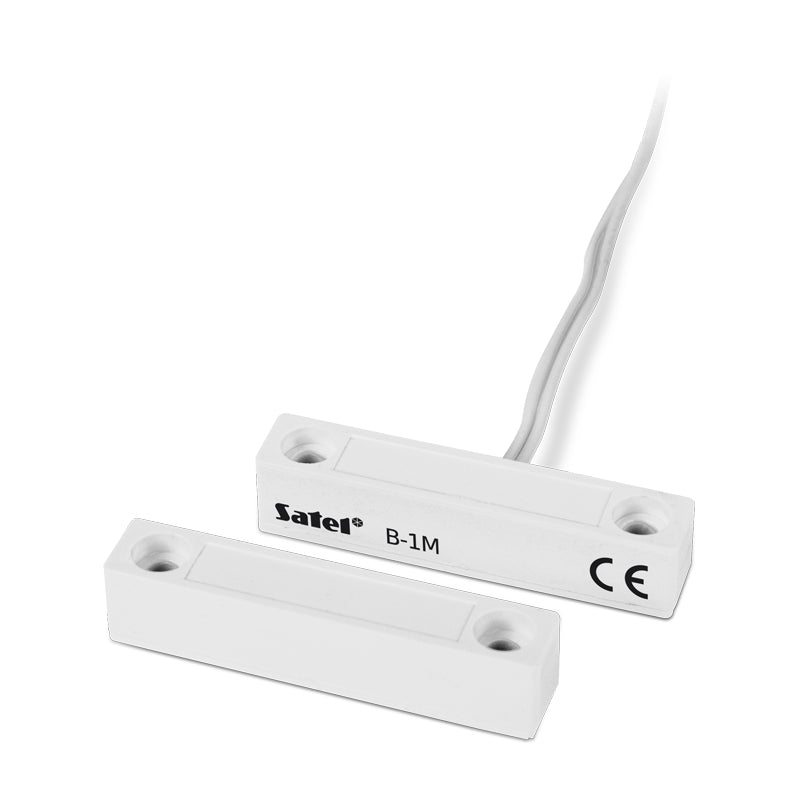

B-1M | Surface-mounted magnetic contact (white)

The B-1M magnetic contacts are essential for perimeter protection, detecting attempts to open doors and windows.

Mounting: Designed for surface mounting, they can be either screwed or adhered.
Design: These are medium-sized, sealed body contacts, available in white and brown.

Technical Data

Max. reed switched voltage	100 V DC
Max. switched current	500 µA
Operating temperature range	-10...+55 °C
Weight	20 g
Maximum humidity	93±3%
Make distance	30 mm
Break distance	33 mm
Dimensions magnet enclosure	51 x 9 x 13,5 mm
Environmental class according to EN50130-5	II
Detector type (outside magnetic field)	NO
Reed switch enclosure dimensions	51 x 9 x 13,5 mm
