Satel

B-4L

B-4L

Gate magnetic contact

Regular price $33.76 NZD
Regular price Sale price $33.76 NZD
Sale Sold out

Product Dimension: 78,5 x 30 x 54 mm

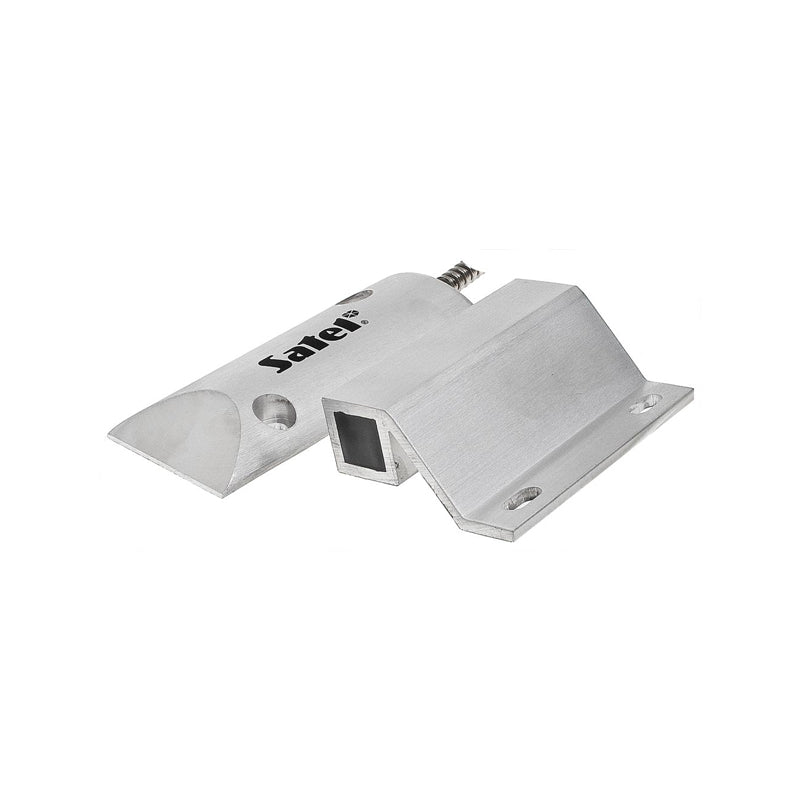

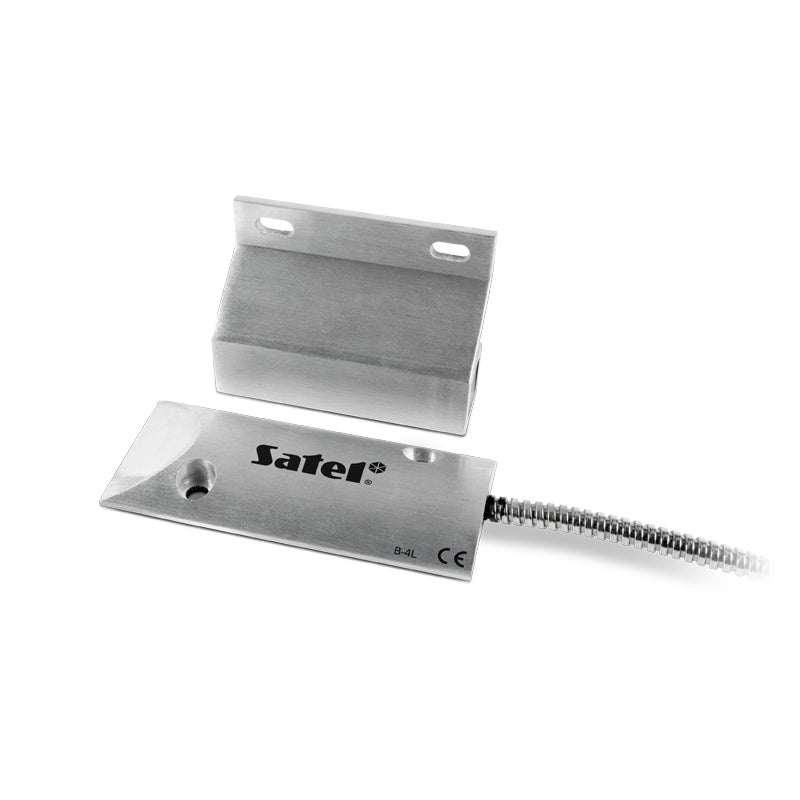

B-4L | Gate magnetic contact (metal housing)

The B-4L magnetic contacts are robust perimeter protection elements, ideal for high-risk areas.

  • Mounting: Designed for durable surface mounting via screws.
  • Rugged Design: Features a large, sealed metal body for enhanced protection.
  • Sabotage Resistance: Includes an armored cable to guard wiring against damage and sabotage, making them suitable for locations prone to mechanical exposure, such as garage gates.

Technical Data

Environmental class according to EN50130-5 II
Maximum humidity 93±3%
Max. switched current 400 mA
Max. reed switched voltage 100 V DC
Weight 270 g
Break distance 80 mm
Make distance 75 mm
Detector type (outside magnetic field) NO
Reed switch enclosure dimensions 104,5 x 44,5 x 11,5 mm
Dimensions magnet enclosure 78,5 x 30 x 54 mm
Operating temperature range -10...+55 °C
