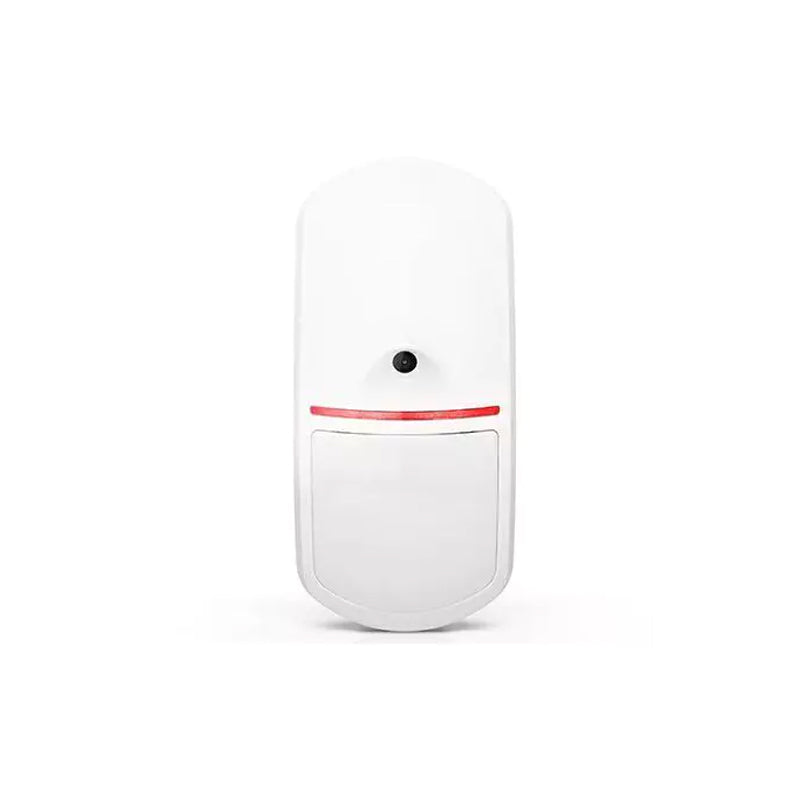

The APCAM-200 Motion Detector Cam is a wireless PIR motion detector with an integrated photo camera designed for both intrusion detection and visual verification. It combines a wide-angle PIR sensor with advanced digital algorithms, AES-encrypted two-way radio communication, and built-in photo capture capabilities for enhanced security. The device ensures reliable operation through transmission channel diversity, remote management features, and compliance with EN 50131 Grade 2 standards. Compact and versatile, it offers secure monitoring with tamper protection, infrared support for low-light conditions, and flexible installation options
Key Features:
PIR motion detection with 15 m x 24 m coverage area, 90° wide-angle lens
Built-in camera: captures 3 photos per alarm, infrared illumination, B/W mode in poor light, 640×480 px resolution
Works in the 868 MHz band with 4 transmission channels and AES-encrypted two-way communication
Remote settings programming and firmware updates; supports photo requests when protection is off
Battery-powered (CR123A, up to 2 years) with external 5–12 V DC option; battery status monitoring
Environmental resilience: –10°C to +55°C, up to 93% humidity, EN 50131-1/5 compliance
Dimensions: 62 × 137 × 43 mm, weight 159 g; includes bracket and mounting tape for wall or ceiling installation
Safety features: tamper protection, digital temperature compensation, optional creep zone coverage, LED indicator
