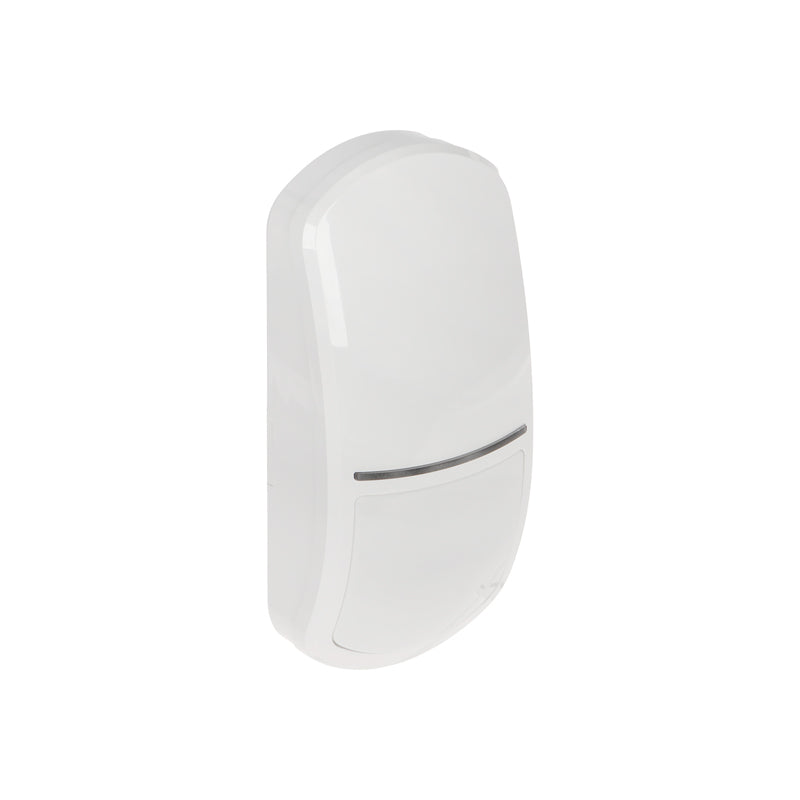

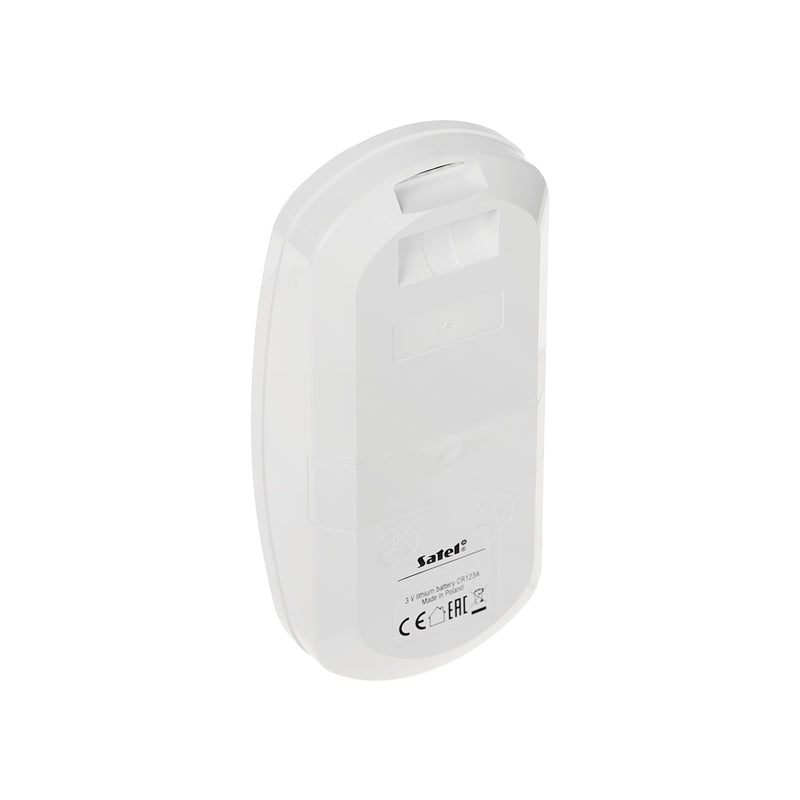

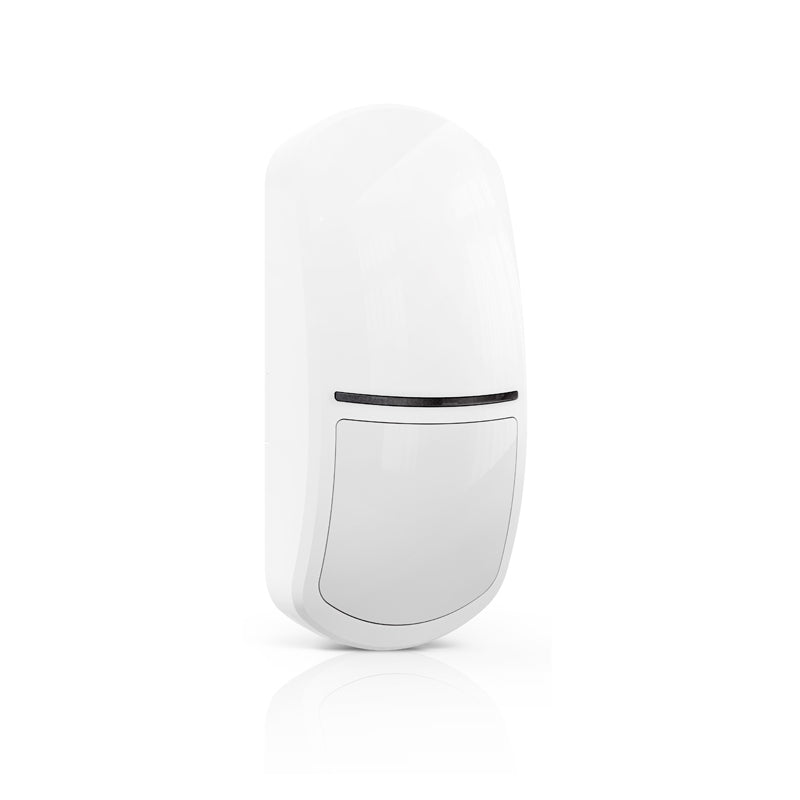

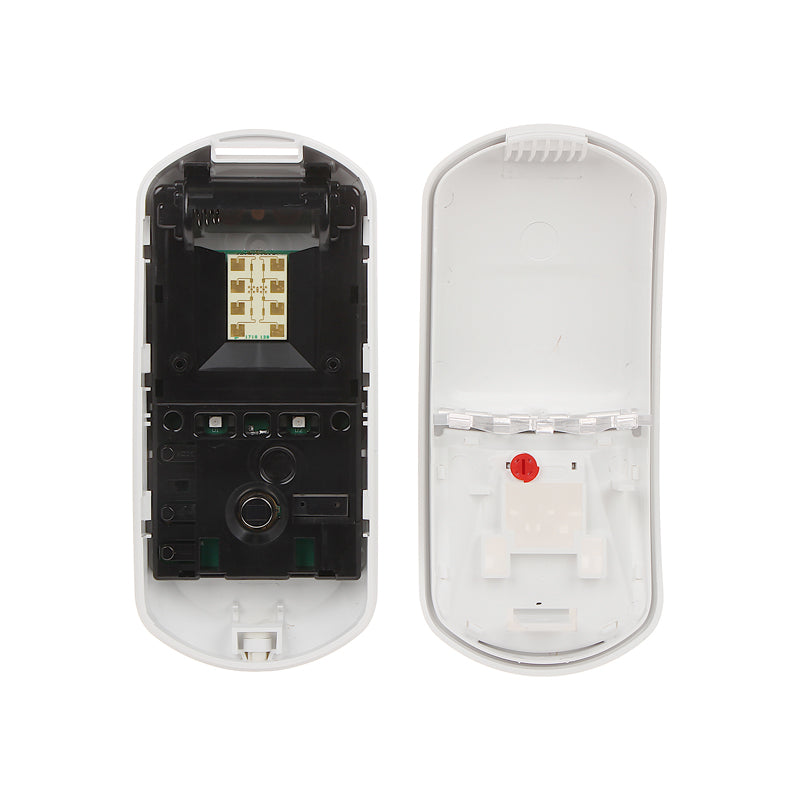

The Motion Detector Plus is a wireless dual-technology (PIR + microwave) motion sensor designed for reliable detection in challenging indoor environments, such as garages and vestibules.
Key Features:
Dual-sensor (PIR + microwave) for reduced false alarms
90° field of view with coverage up to 15 × 24 m
Optional creep-zone detection for monitoring below the unit
Built-in temperature sensor for smart automation (e.g., lighting, HVAC)
Wireless communication with extended range and auto-updates via Smart HUB
Tamper protection triggers alarms and notifications
Easy installation with adhesive or screws
Compatible with adjustable BRACKET D for flexible mounting
Technical Data
Environmental class according to EN50130-5
II
Maximum detection area
15 m x 24 m, 90°
Security grade according to EN50131-2-4 (detector mounted directly to the wall)
Grade 2
Temperature measurement range
-10°C...+55°C
Radio communication range (in open area) for ACU-280
up to 1600 m
Radio communication range (in open area) for ACU-220
up to 2000 m
Radio communication range (in open area) for ACU-270
up to 500 m
Radio communication range (in open area) for ACU-120
