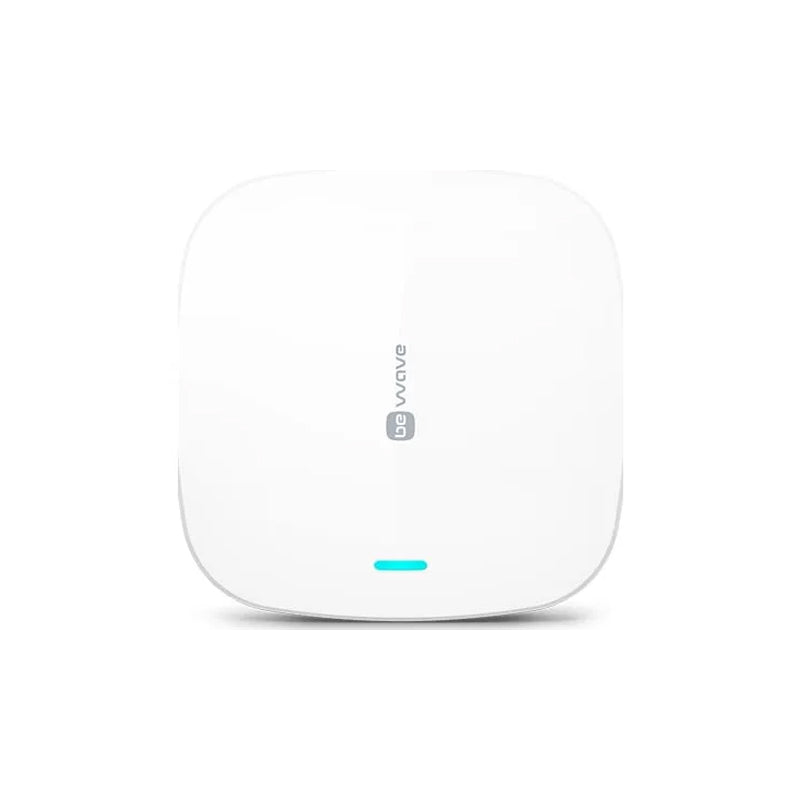

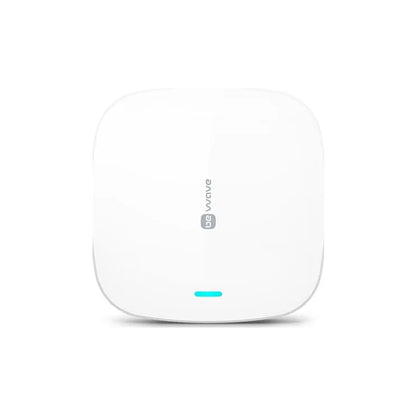

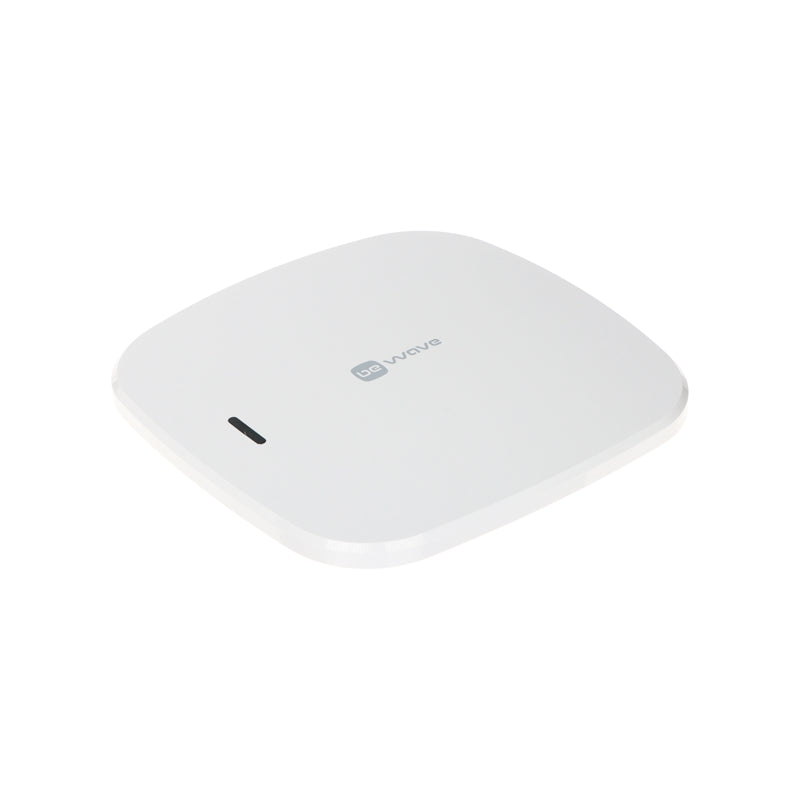

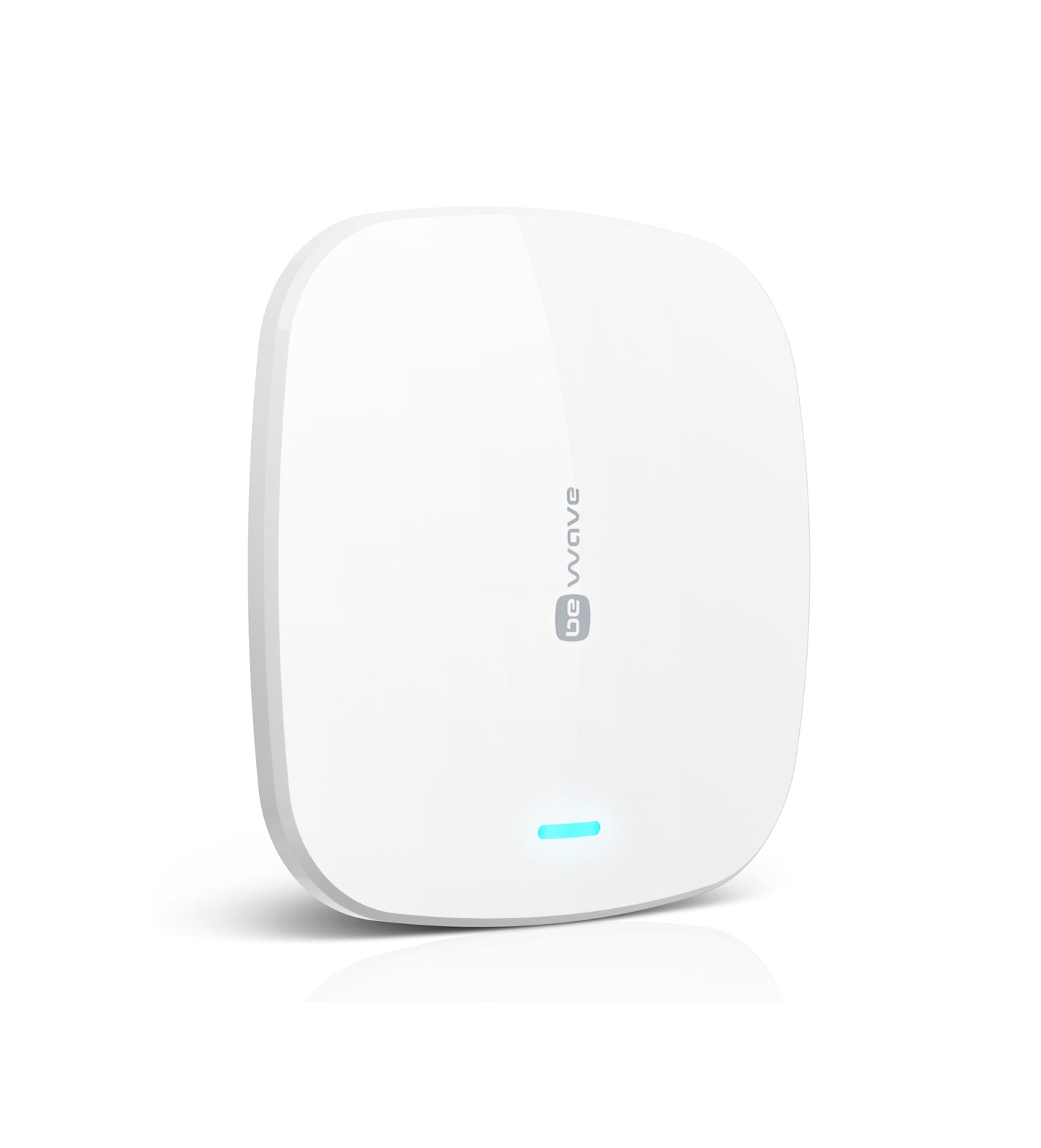

The Smart HUB is the central controller for the BE WAVE system, managing up to 128 wireless devices for home automation and security with encrypted communication and reliable reporting.
Key Features:
Supports Ethernet, WiFi, and (in Smart HUB Plus) 2G/4G dual-SIM communication
Connects up to 128 BE WAVE devices via AES-encrypted 868 MHz transmission
Logs up to 8,000 events; supports microSD for backup and data storage
Dual-path reporting ensures alert delivery via internet and mobile networks
Automatic firmware updates with AES-256 encryption
Built-in rechargeable battery for power backup
Smart HUB Plus LV version supports 9–28 V DC installations
Technical Data
Operating frequency band
868.0 MHz ÷ 868.6 MHz
Supply voltage
230 V AC, 50–60 Hz
Rechargeable battery
3.6 V / 3200 mAh
Standby power consumption
1.82 W
Maximum power consumption
2.65 W
Standby current consumption (battery)
252 mA
Battery charging current
250 mA
Low battery voltage threshold
3.2 V
Battery cut-off voltage
2.8 V
Battery operating temperature (discharge)
-10°C ÷ +60°C
Battery operating temperature (charge)
0°C ÷ +45°C
Supported memory cards
microSD, microSDHC
Complied with standards
EN 50130-4, EN 50130-5, EN 50131-1, EN 50131-3, EN 50131-5-3
