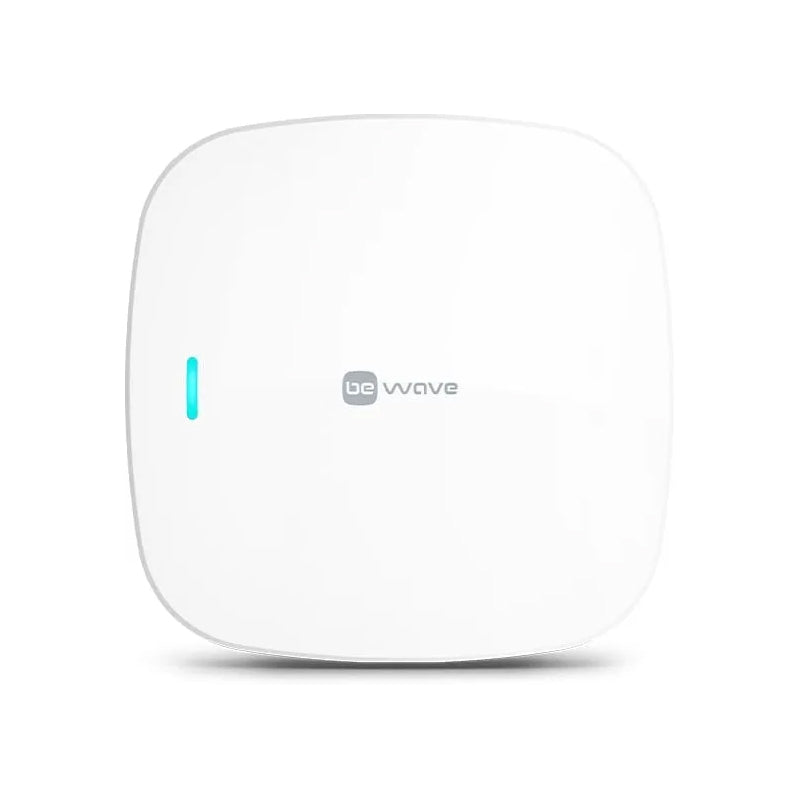

The Smart HUB Plus is an advanced controller for the BE WAVE system, offering full automation, security management, and extended connectivity, including mobile network support for reliable remote access.
Key Features:
Manages up to 128 wireless devices with AES-encrypted 868 MHz communication
Dual SIM support for 2G/4G backup alongside Ethernet and WiFi
Logs up to 8,000 events with optional microSD data storage
Ensures dual-path reporting for uninterrupted alerts
Automatic firmware updates via encrypted connection
Rechargeable battery for backup power
Smart HUB Plus LV variant supports 9–28 V DC installations (ideal for mobile or off-grid setups)
Technical Data
Operating frequency band
868.0 MHz ÷ 868.6 MHz
Supply voltage
230 V AC, 50–60 Hz
Rechargeable battery
3.6 V / 3200 mAh
Standby power consumption
1.85 W
Maximum power consumption
2.8 W
Standby current consumption (battery)
272 mA
Battery charging current
250 mA
Low battery voltage threshold
3.2 V
Battery cut-off voltage
2.8 V
Battery operating temperature (discharge)
-10°C ÷ +60°C
Battery operating temperature (charge)
0°C ÷ +45°C
Supported memory cards
microSD, microSDHC
Complied with standards
EN 50130-4, EN 50130-5, EN 50131-1, EN 50131-3, EN 50131-5-3
