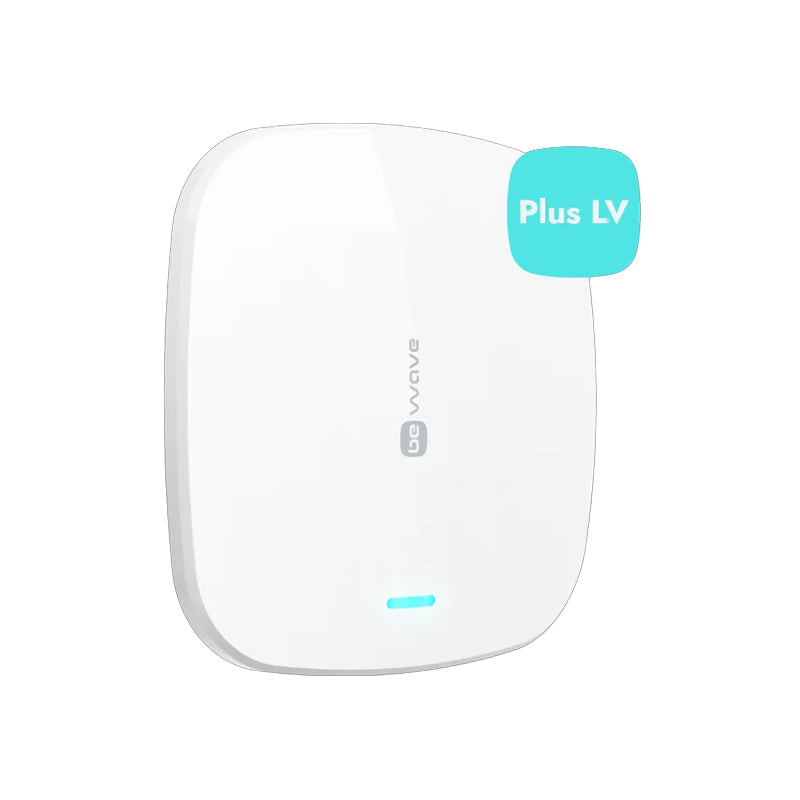

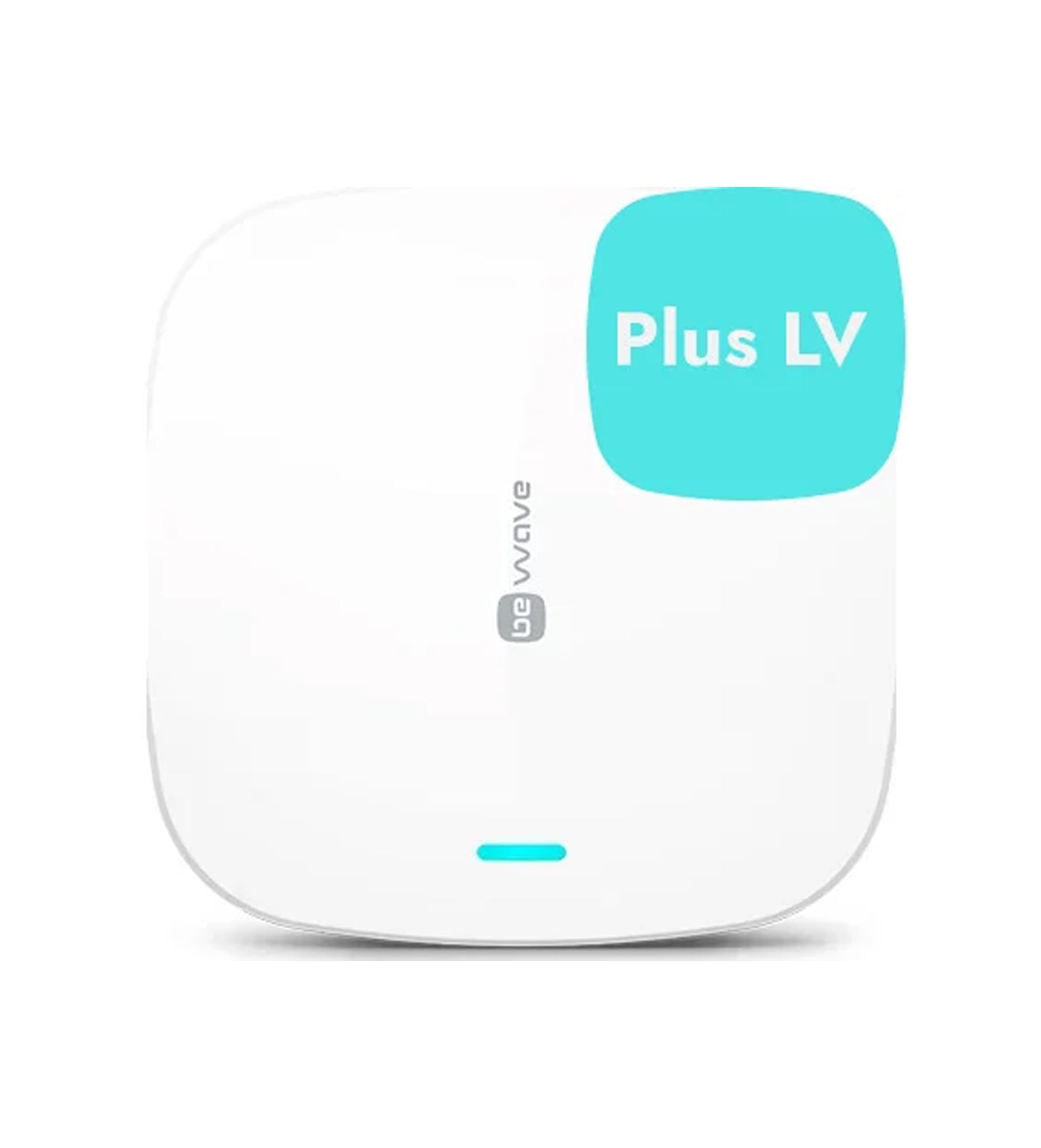

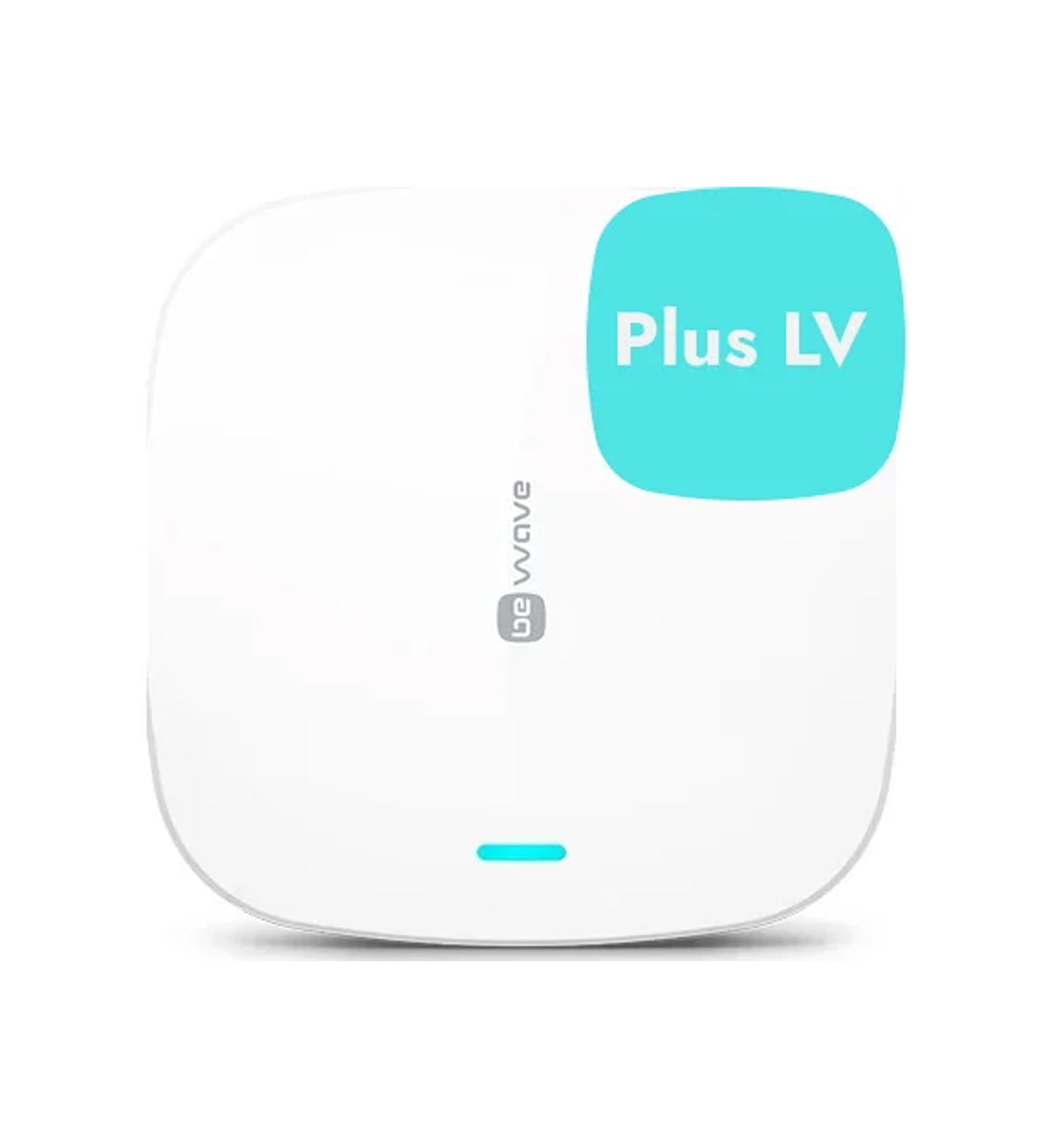

The Smart HUB Plus LV is a low-voltage central controller for the BE WAVE system, ideal for mobile and off-grid installations such as vehicles, cabins, or construction sites.
Key Features:
Supports up to 128 wireless devices via encrypted 868 MHz communication
Dual SIM 2G/4G, WiFi, and Ethernet for secure dual-path reporting
Operates on 9–28 V DC—perfect for low-voltage environments
Built-in rechargeable battery with smart discharge protection
Logs up to 8,000 events; supports remote firmware updates
Fully controllable via the BE WAVE mobile app
Technical Data
Operating frequency band
868.0 MHz ÷ 868.6 MHz
Radio communication range (open area)
up to 2000 m
Supply voltage
9…28 V DC
Rechargeable battery
18650 3.6 V / 3200 mAh
Standby current consumption (9 V)
113 mA
Standby current consumption (28 V)
42 mA
Maximum current consumption (9 V)
240 mA
Maximum current consumption (28 V)
60 mA
Standby current consumption (battery)
220 mA
Battery charging current
205 mA
Low battery voltage threshold
3.2 V
Battery cut-off voltage
2.7 V
Battery operating temperature (discharge)
-10°C ÷ +60°C
Battery operating temperature (charge)
0°C ÷ +45°C
Supported memory cards
microSD, microSDHC
Security grade (EN 50131-1)
Grade 2
Complied with standards
EN 50130-4, EN 50130-5, EN 50131-1, EN 50131-3, EN 50131-5-3
