Satel

Be Wave - ATX-200

Be Wave - ATX-200

Smart Switch Controller ATX-200

Regular price $87.15 NZD
Regular price Sale price $87.15 NZD
Sale Sold out

Product Dimension: 47 × 47 × 22 mm

Be Wave - Smart Switch Controller ATX-200

The Smart Switch Controller is a wireless under‑plaster module that enables standard wall buttons or switches to trigger actions within the BE WAVE automation and security system. It supports up to four switches and delivers smart-home control without requiring mains power or rewiring.

Key Features:

  • Connects up to four independent push-buttons or wall switches
  • Supports multi-click sequences per switch (single, double, triple click, hold/release)
  • Triggers BE WAVE scenes, routines, or emergency alerts

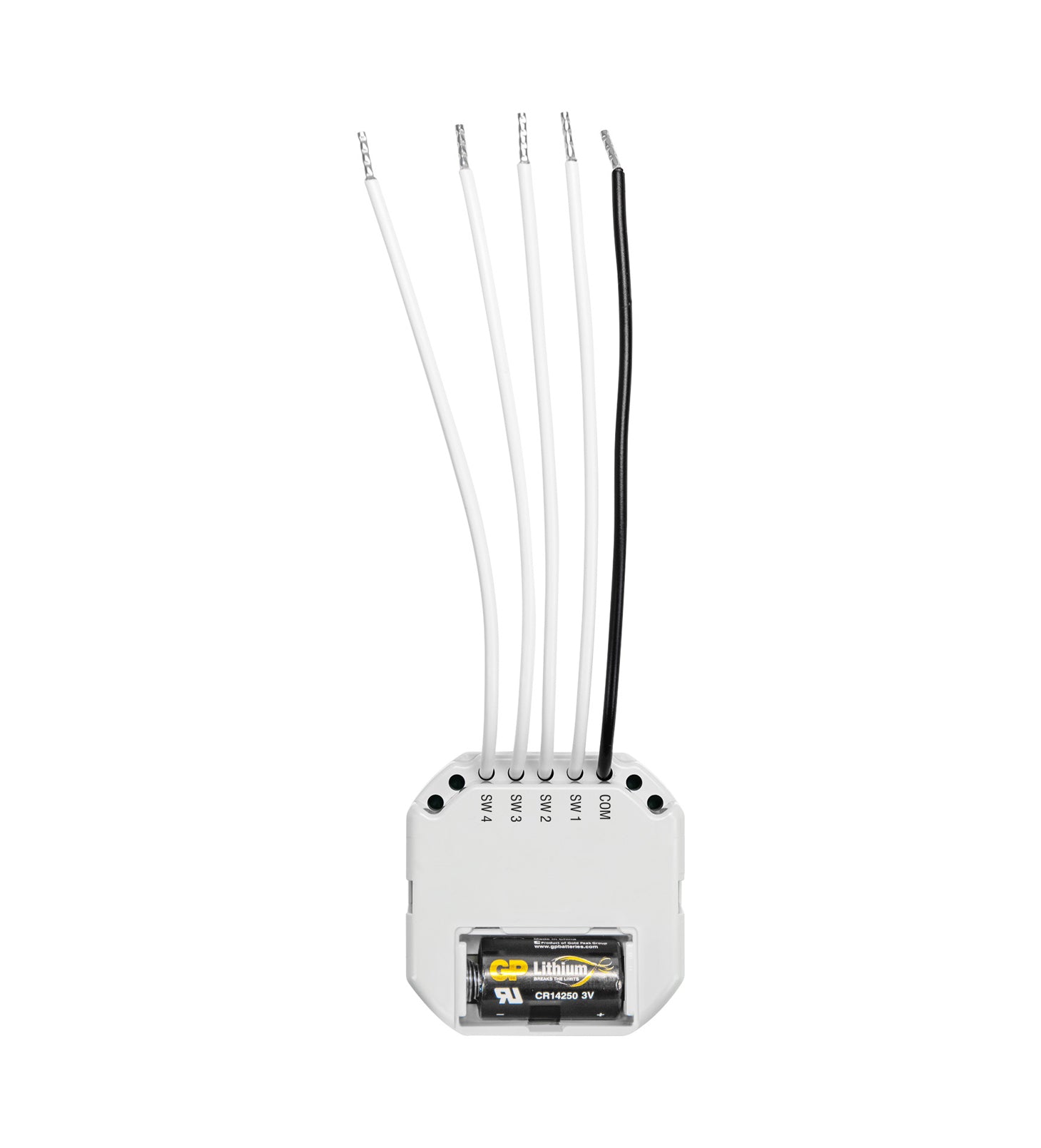

  • Battery-powered using a CR14250 3 V cell with low-battery notifications
  • Installs in standard flush or surface-mounted electrical boxes
  • Seamless integration and programming via the BE WAVE app

Technical Data

Operating frequency band 868.0 MHz ÷ 868.6 MHz
Radio communication range (open area) up to 1700 m
Battery CR14250 3 V
Expected battery life  up to 3 years
Standby mode current consumption 7 µA
Low battery voltage 2.75 V
Complied with standards EN 50130-4, EN 50130-5
Environmental class (EN 50130-5) II
Operating temperature range -10°C ÷ +55°C
Maximum humidity 93 ± 3%
Dimensions 47 × 47 × 22 mm
Weight 40 g
View full details
