Satel

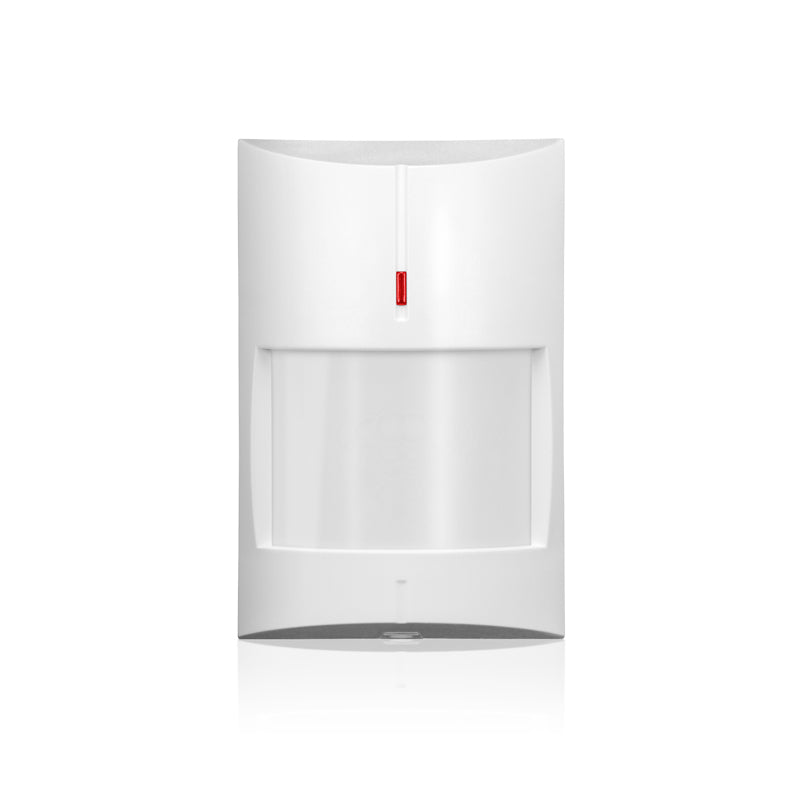

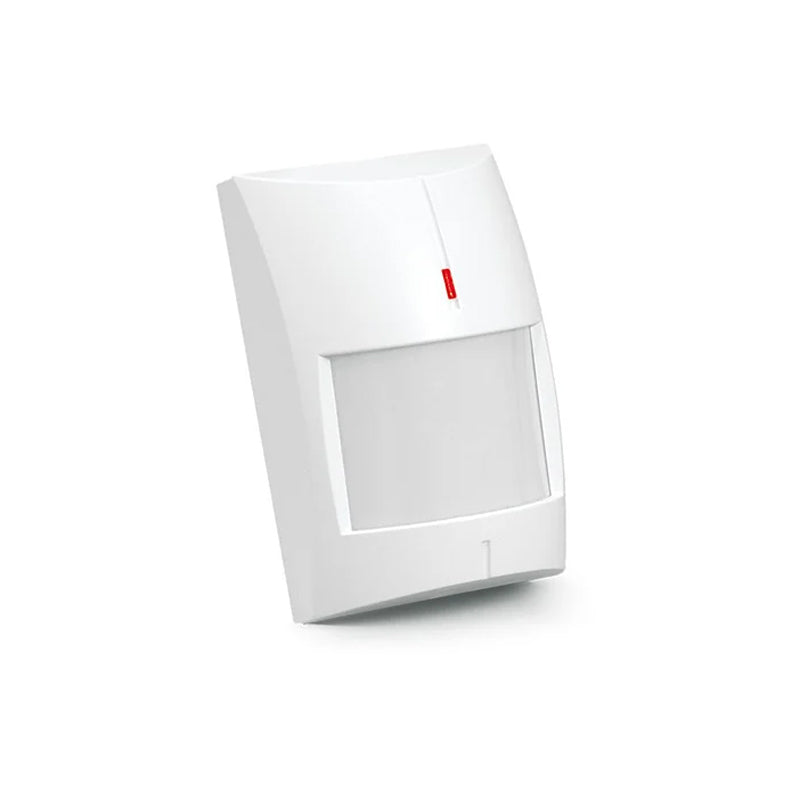

GREY Plus

PIR+MW detector with MW antimask

$56.16 NZD

Sale Sold out

Product Dimension: 63 x 96 x 49 mm

GREY Plus | Compact dual technology PIR+MW detector with MW antimask

The GREY is a dual-technology (PIR + microwave) motion detector, ideal for rooms with challenging environmental conditions like drafts or intensive convection.

Reliable Detection: Combines PIR with a 24GHz microwave sensor for high reliability, even in harsh conditions (e.g., rooms with fireplaces or hot-air heating).
Advanced Features: Includes microwave antimask, ambient temperature compensation, remote test mode, and alarm memory.
Pet Immunity: Offers a PET immune mode for animals up to 15 kg.
Easy Installation: Features built-in end-of-line resistors (2EOL: 2 x 1.1 kΩ).
Compact Design: Its compact size allows it to fit into a typical PIR enclosure, maintaining discreet aesthetics crucial for interior installations.

Technical Data

Complied with standards	EN 50131-1, EN 50131-2-4, EN 50130-4, EN 50130-5
Coverage area (PET option on)	13 m x 11 m, 81°
Coverage area (PET option off)	15 m x 11 m, 89°
Relay contact resistance (anti-masking output)	34 Ω
Relay contact resistance (alarm output)	34 Ω
Anti-masking outputs (NC relay, resistive load)	40 mA / 24 V DC
Tamper outputs (NC)	100 mA / 30 V DC
Alarm outputs (NC relay, resistive load)	40 mA / 16 V DC
Warm-up period	35 s
Security grade according to EN50131-2-4	Grade 2
Microwave frequency	24 GHz
Supply voltage	12 V DC
Alarm signaling time	2 s
Environmental class according to EN50130-5	II
Dimensions	63 x 96 x 49 mm
Maximum humidity	93±3%
Weight	100 g
Max. current consumption	18 mA
Standby mode current consumption	15 mA
Recommended mounting height	2,4 m
Operating temperature range	-10...+55 °C
Detected target velocity	0,3...3 m/s
