Satel

INT-E

Zone expansion module

$65.86 NZD

Sale Sold out

Product Dimension: 80 x 57 mm

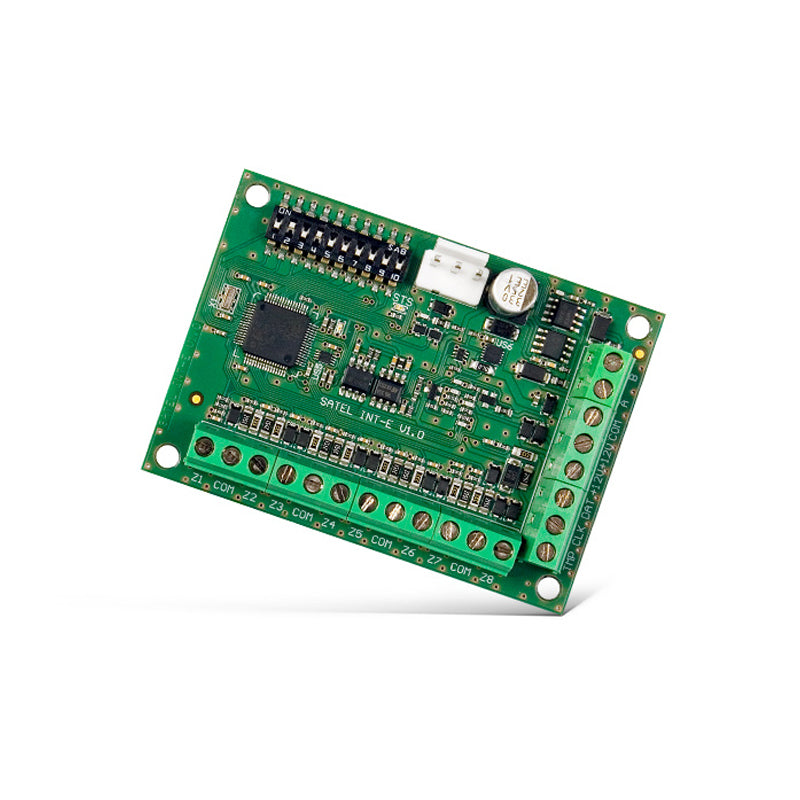

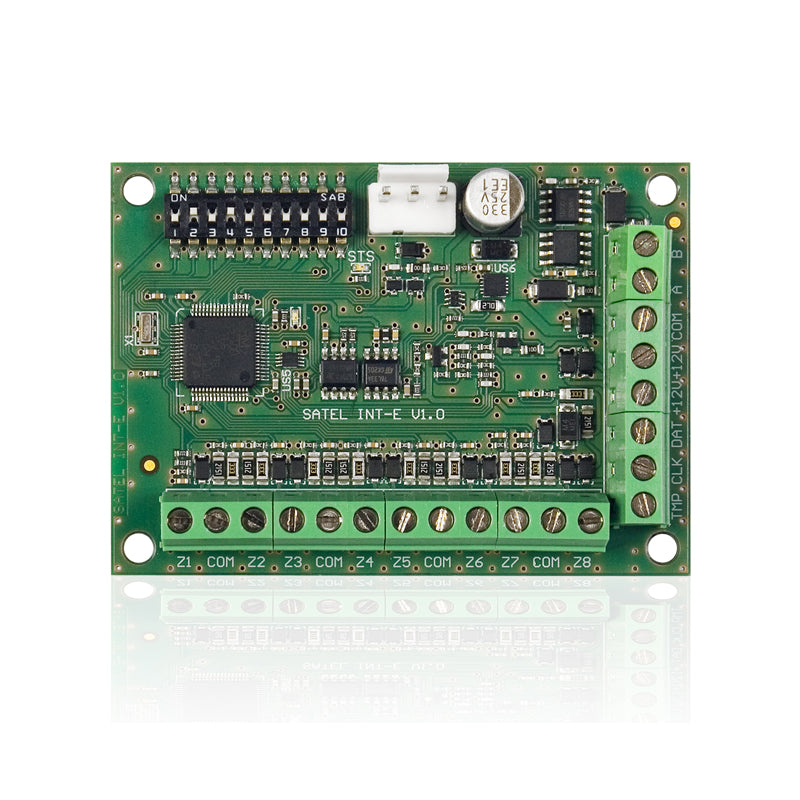

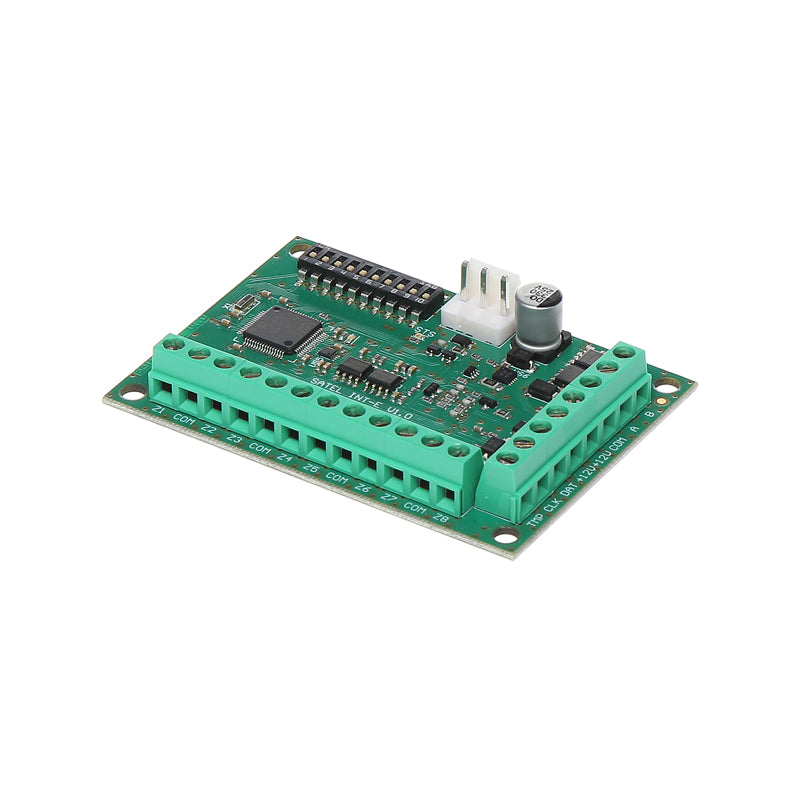

INT-E | Zone expansion module

The INT-E module expands INTEGRA, INTEGRA Plus, VERSA, VERSA Plus, and PERFECTA control panels, plus the ACCO-NT2 access control panel, replacing older CA-64 E/EPS modules.

Zone Expansion: Adds 8 wired zones to the system.
Detector Support: Directly supports vibration and roller shutter detectors (alarm panels only).
Flexible Configurations: Compatible with NO, NC, EOL, 2EOL/NO, 2EOL/NC (alarm panels), and 3EOL (INTEGRA Plus only). Programmable EOL resistance is available for most alarm panels.
Tamper Protection: Includes an additional tamper input for enclosure security.
Connectivity: Connects via RS-485 bus, allowing firmware updates through the bus.

Technical Data

Supply voltage	12 V DC
Operating temperature range	-10 °C...+55 °C
Standby mode current consumption	35 mA
Max. current consumption	80 mA
Weight	47 g
Maximum humidity	93±3%
Dimensions	80 x 57 mm
Environmental class according to EN50130-5	II
+12 V output rating	2,5 A / 12 V DC
Security grade acc. to EN 50131 (without power supply)	Grade 3
Security grade acc. to EN 50131 (with APS-412 power supply)	Grade 2
