Satel

INT-KLCDL-BL

LCD keypad for INTEGRA control panels

$161.86 NZD

Sale Sold out

Product Dimension: 145 x 115 x 26 mm

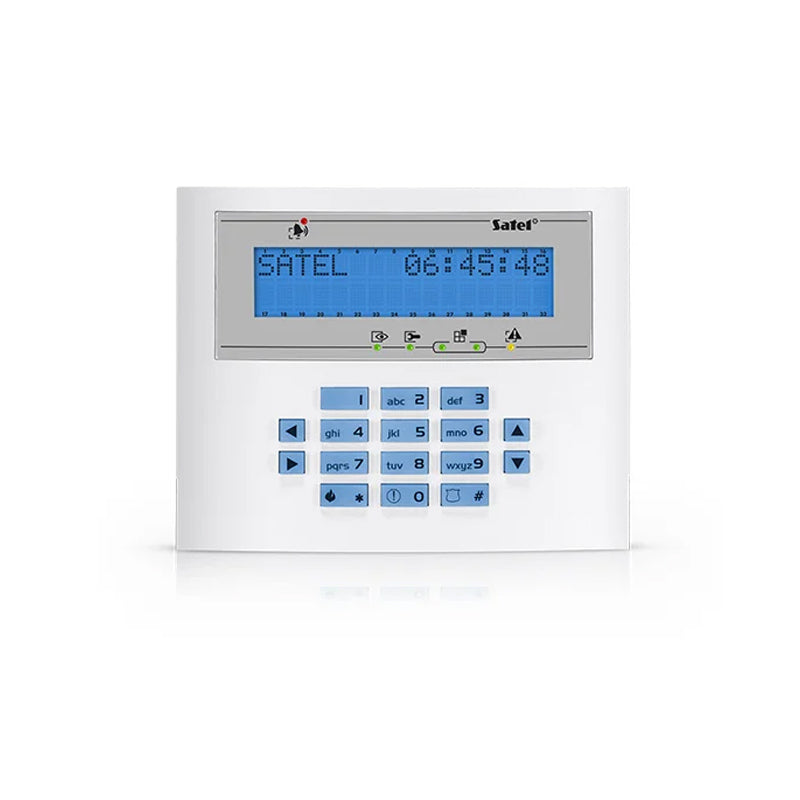

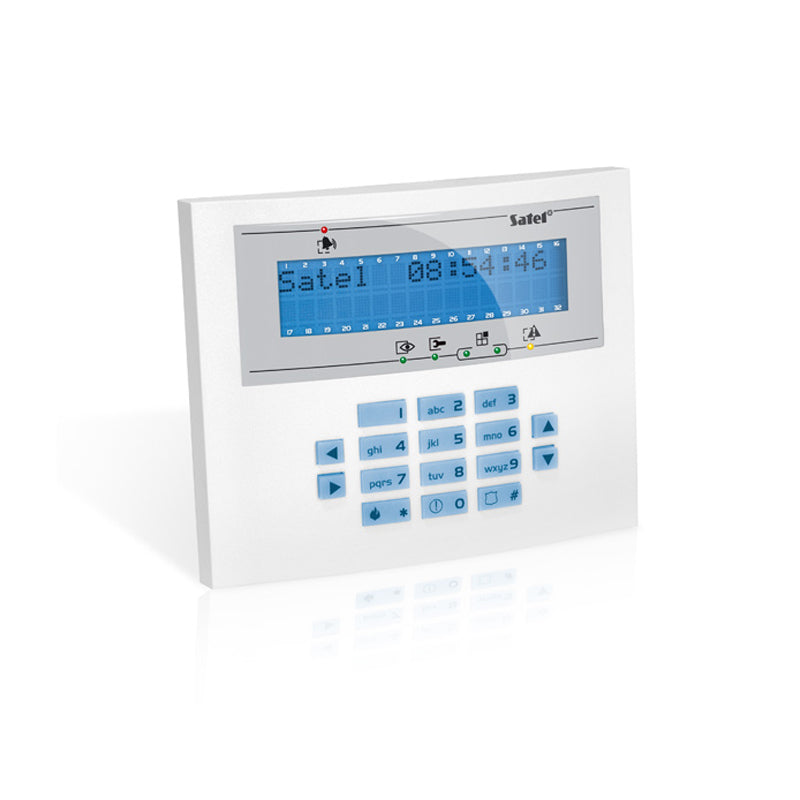

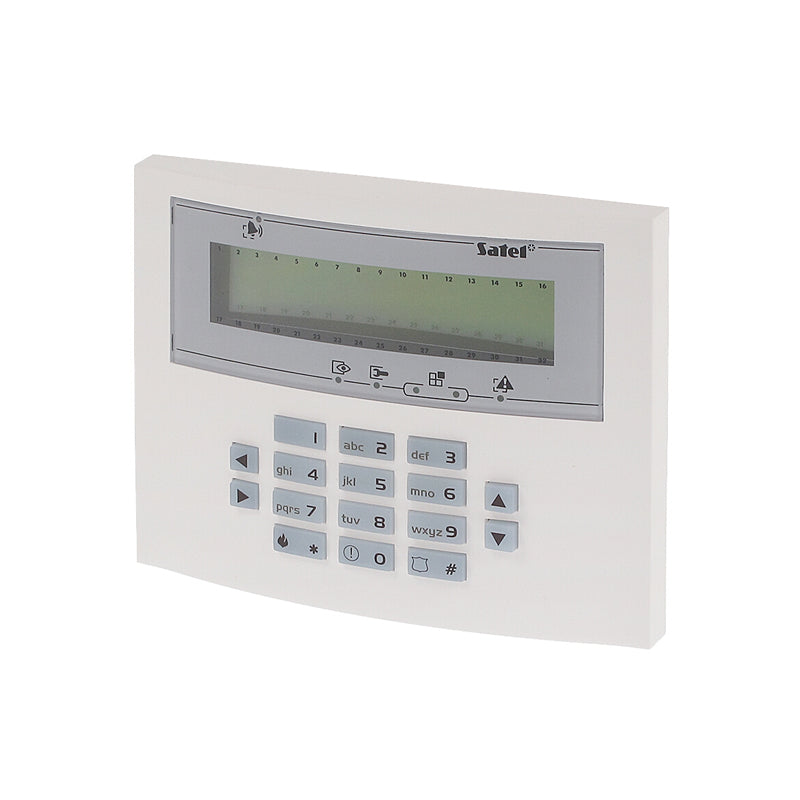

INT-KLCDL-BL | LCD keypad for INTEGRA control panels

The INT-KLCDL keypads simplify daily operation of INTEGRA systems with a clear text display.

User Interface: Features a blue backlit keypad and display (green option available: INT-KLCDL-GR).
Status Indication: LEDs show system status.
Emergency Functions: Dedicated keys trigger PANIC, FIRE, and AUX alarms when held.
Feedback: A buzzer provides acoustic signaling.
Connectivity: Includes 2 zones and an RS-232 port for use with GUARDX software.
Reliability: Indicates communication loss with the control panel.

Technical Data

Environmental class	II
Supply voltage	12 V DC
Enclosure dimensions	145 x 115 x 26 mm
Operating temperature range	-10…+55 °C
Standby mode current consumption	61 mA
Max. current consumption	147 mA
