Satel

INT-KLFR-B

INTEGRA alarm system keypad

$191.74 NZD

Sale Sold out

Product Dimension: 145 x 143 x 25 mm

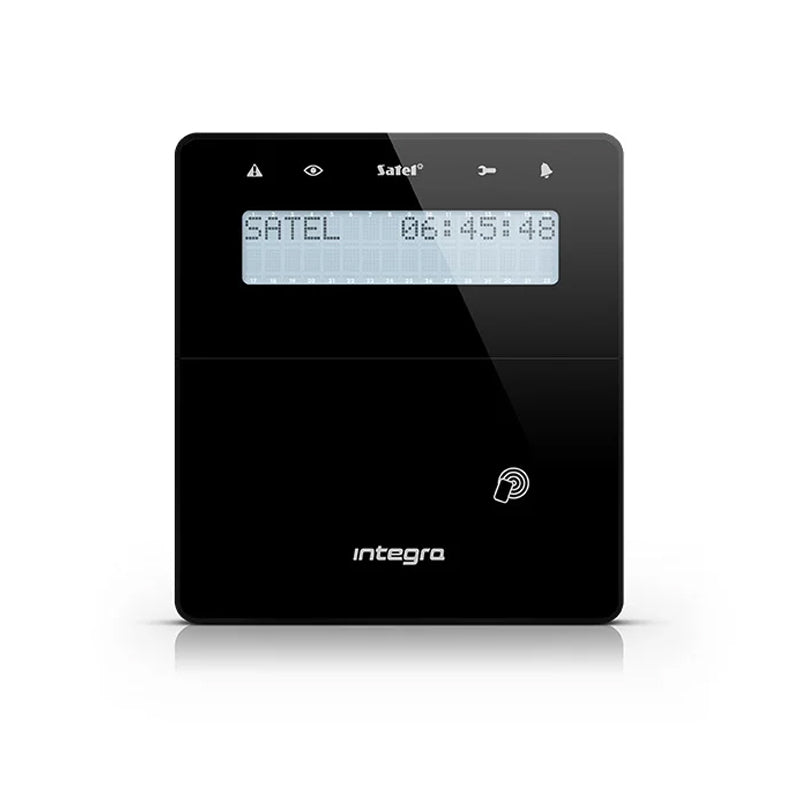

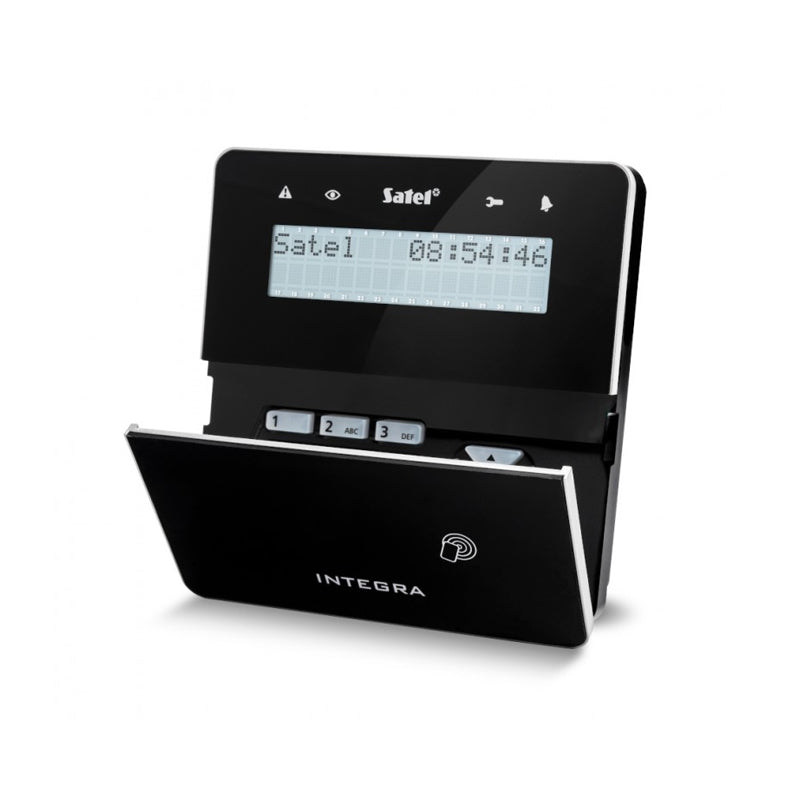

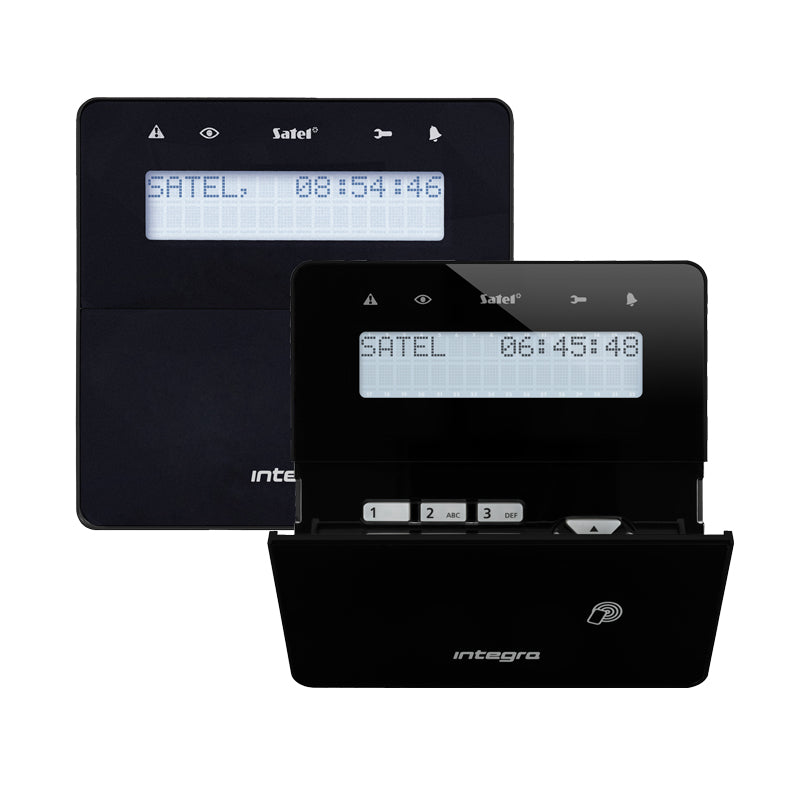

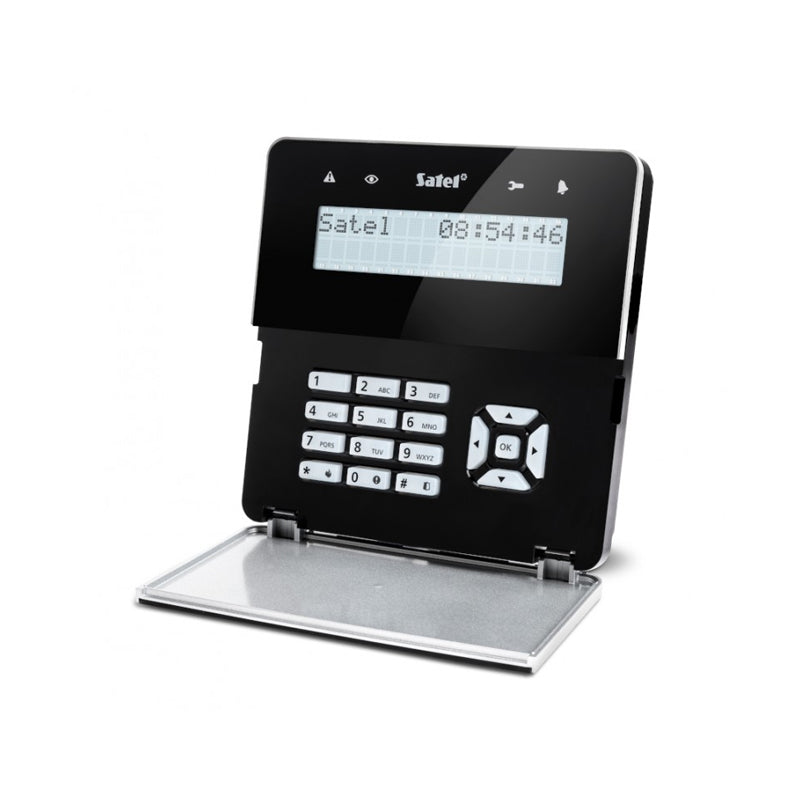

INT-KLFR-B | INTEGRA alarm system keypad

The INT-KLFR keypad offers a traditional, yet attractive, interface for alarm system operation.

User-Friendly: Features backlit keys and display for clear visibility, with LED indicators showing system status.
Convenient Arming: A built-in proximity card reader allows for system operation without needing passwords.
Emergency Functions: Dedicated keys trigger PANIC, FIRE, and MEDICAL (AUX) alarms.
Acoustic Feedback: Provides audible signals for selected system events.
Expandability: Includes 2 programmable zones with 3EOL configuration support.
Connectivity: Equipped with an RS-232 connector for GUARDX software interfacing.
Color Options: Available in white (INT-KLFR-W) and black (INT-KLFR-B).

Technical Data

Supply voltage	12 V DC
Enclosure dimensions	145 x 143 x 25 mm
Operating temperature range	-10…+55°C
Standby mode current consumption	60 mA
Max. current consumption	110 mA
Weight	346 g
Maximum humidity	93±3%
Environmental class according to EN50130-5	II
