Satel

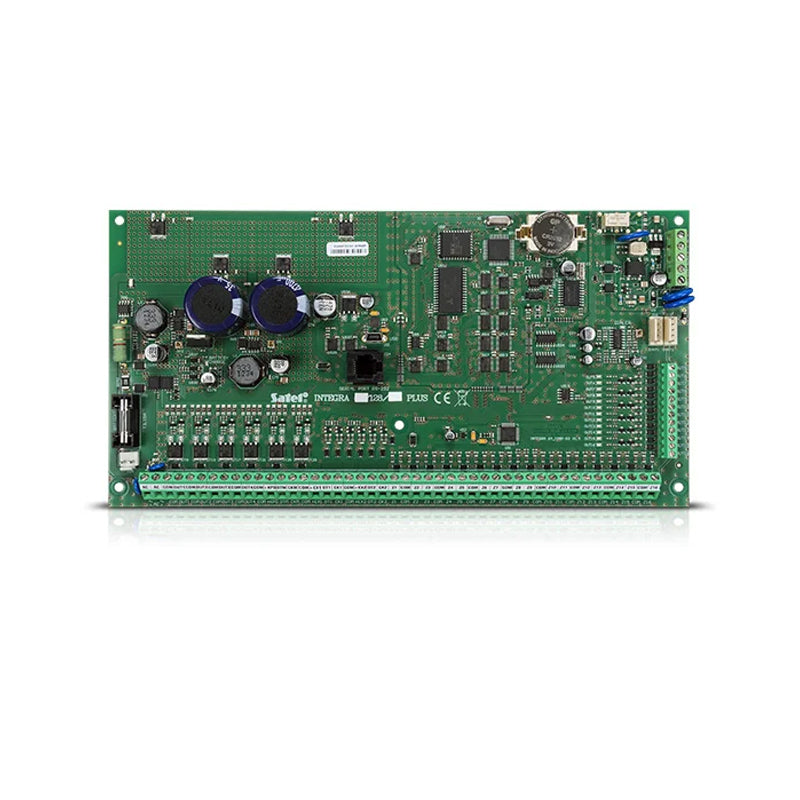

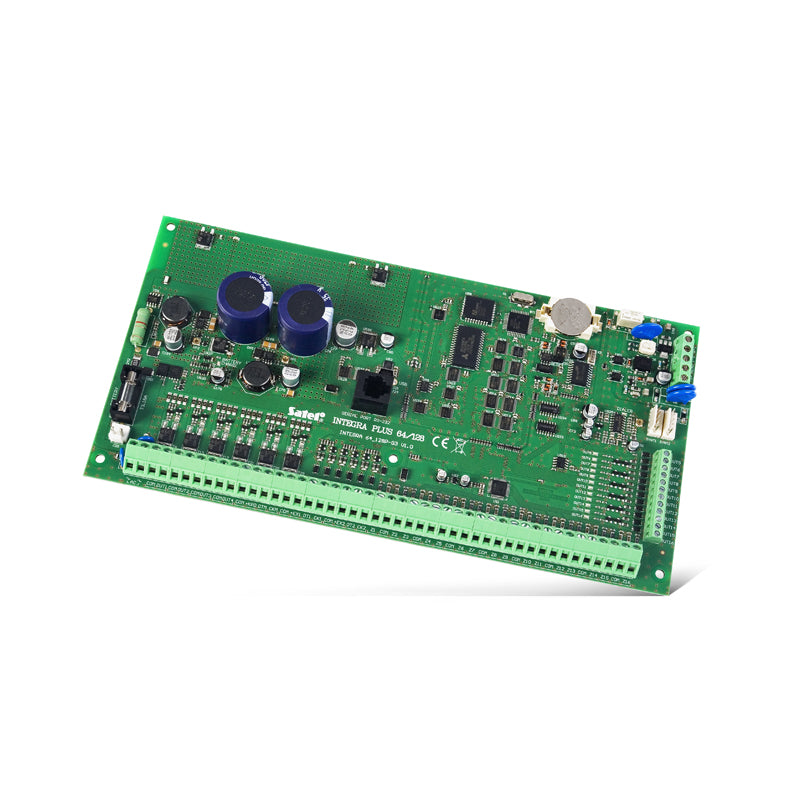

INTEGRA 128 Plus

Alarm control panel main board

$354.43 NZD

Sale Sold out

Product Dimension: 264 x 134 mm

INTEGRA 128 Plus | EN50131 Grade 3 compliant alarm control panel main board, with 16 up to 128 zones and outputs

The INTEGRA Plus control units offer advanced security for high-risk locations, fully complying with EN50131 Grade 3.

Robust Security: Ideal for banks or public facilities, they support up to 128 zones (3 EOL support) and 128 programmable outputs.
Integrated Power: Features a built-in 2A+1.5A power supply with autodiagnostics.
Flexible Control: Manage via touchscreens, LCD/partition keypads, keyfobs, proximity cards, PC, smartphone, or voice menu.
Automation & Access: Includes access control and home automation features with 64 independent timers.
Logging: Stores 22,527 events with on-line printing.
Capacity: Supports 240+8+1 user codes.
Connectivity: Dedicated buses for keypads/modules, USB for PC programming, and remote firmware upgrades.

Technical Data

Programmable wired outputs	16
Users + Administrators	240 + 8
Maximum current consumption from the battery	200 mA
Maximum battery charging current	1500 mA
Power supply current efficiency (supplying devices + charging batteries)	2000 + 1500 mA
Power supply output voltage	10,5…14 V DC
Carrying capacity of the +KPD output (±10%)	3000 mA
Carrying capacity of the +EX1 and +EX2 outputs (±10%)	3000 mA
Programmable wired inputs	16
Maximum number of programmable inputs	128
Maximum current consumption from the 230V network	400 mA
Maximum number of programmable outputs	128
Supplying outputs	3
Communication buses	1 + 2
Keypads	up to 8
Extender circuits	up to 64
Telephone numbers for notification (voice/PAGER + SMS)	16 + 16
Installer-defined text messaged	64
Security grade according to EN 50131	Grade 3
Supply voltage (±15%)	20 V AC, 50-60 Hz
Low current programmable outputs rating	50 mA
High current programmable outputs rating	3000 mA
Event log	22527
Objects	8
Partitions	32
Timers	64
Board dimensions	264 x 134 mm
Operating temperature range	-10…+55 °C
Voice messages	32
Weight	320 g
Maximum humidity	93±3%
Current consumption from battery - standby	130 mA
Recommended transformer type	75 VA
Battery failure voltage threshold (±10%)	11 V
Battery cut-off voltage (±10%)	10,5 V
Environmental class according to EN50130-5	II
Current consumption from the 230V network in standby	135 mA
