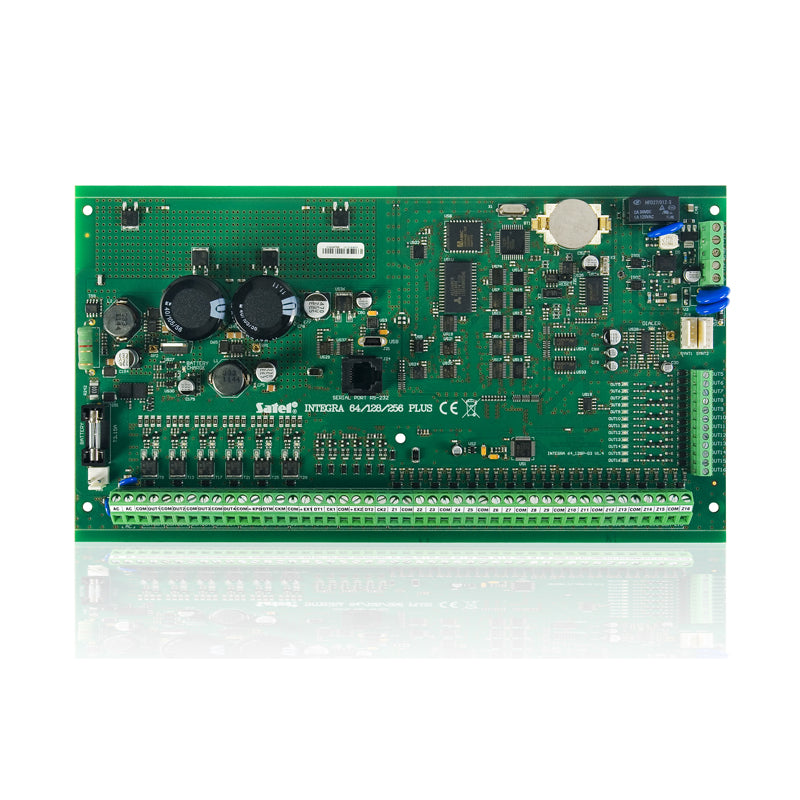

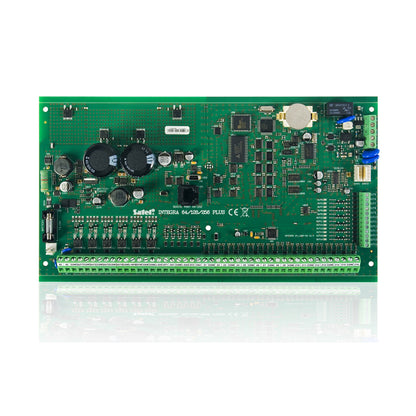

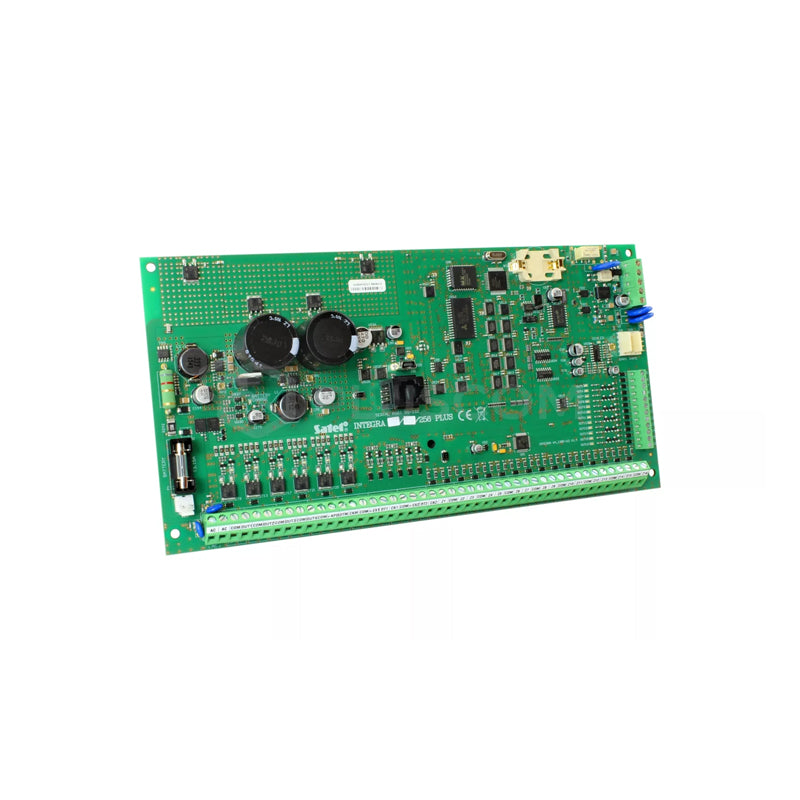

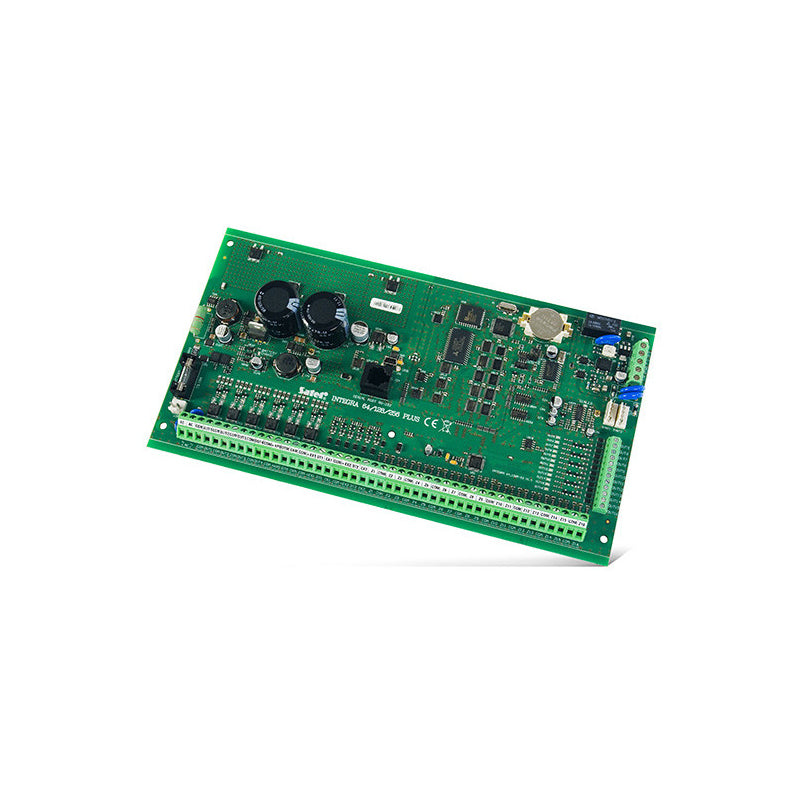

INTEGRA 256 Plus | Alarm control panel mainboard, from 16 to 256 zones and outputs, compliant with the GRADE 3 standard
The INTEGRA Plus control panels, fully compliant with EN50131 Grade 3, are ideal for high-security environments like jewelry shops or public buildings.
Robust Security: Supports up to 256 zones (with 3EOL support) and 256 programmable outputs. Features an advanced 2A+1.5A power supply with diagnostics.
System Management: Divides into 32 partitions/8 objects. Control via touchscreens, keypads, keyfobs, proximity cards, PC, or mobile. Includes an integrated phone communicator for reporting and remote control.
Automation & Access: Offers access control and smart building functions with 64 independent timers.
Logging & Users: Stores 24,575 events and supports 240+8+1 users.
Connectivity: USB for PC programming, communication buses for modules, and firmware updates.
Technical Data
Installer-defined text messaged
64
Extender circuits
up to 64
Environmental class according to EN50130-5
II
Voice messages
32
Communication buses
1+2
Maximum number of programmable inputs
256
Maximum number of programmable outputs
256
Maximum humidity
93±3%
Maximum current consumption from the battery
200 mA
Maximum current consumption from the 230V network
400 mA
Maximum battery charging current
1500 mA
Keypads
up to 8
Weight
320 g
Battery cut-off voltage (±10%)
10,5 V
Power supply output voltage
10,5…14 V DC
Supply voltage (±15%)
20 V AC, 50-60 Hz
Battery failure voltage threshold (±10%)
11 V
Telephone numbers for notification (voice/PAGER + SMS)
16+16
Carrying capacity of the +EX1 and +EX2 outputs (±10%)
3000 mA
Low current programmable outputs rating
50 mA
High current programmable outputs rating
3000 mA
Carrying capacity of the +KPD output (±10%)
3000 mA
Event log
24575
Objects
8
Current consumption from the 230V network in standby
135 mA
Current consumption from battery - standby
130 mA
Security grade according to EN 50131
Grade 3
Partitions
32
Timers
64
Users + Administrators
240+8
Programmable wired inputs
16
Power supply current efficiency (supplying devices + charging batteries)
