Satel

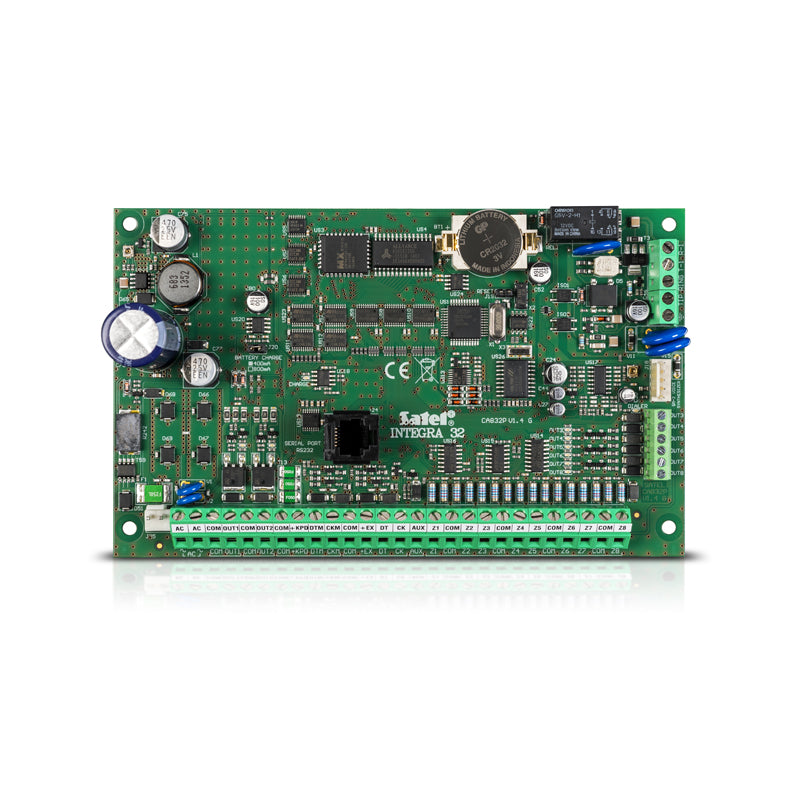

INTEGRA 32

Advanced control panel

$174.30 NZD

Sale Sold out

Product Dimension: 173 x 106 mm

INTEGRA 32 | Advanced control panel with 8 up to 32 zones

The INTEGRA control units are advanced alarm systems adaptable for home automation and access control, suitable for various installation sizes.

Scalable Security: Expandable from 8 to 32 zones and 8 to 32 programmable outputs, supporting 16 partitions and 4 objects.
Integrated Communication: Features a built-in telephone dialer for monitoring, voice messaging, and remote control. Compatible with GSM and TCP/IP modules for enhanced connectivity.
Flexible Operation: Control via touchscreen/LCD keypads, keyfobs, proximity cards, PC, or mobile phone.
Automation: Includes 28 independent timers for automated functions, plus access control and home automation features.
Logging & Power: Maintains a 439-entry event log. Powered by a built-in 1.2A switching mode backup supply with battery charging and diagnostics. Supports flash firmware upgrades via PC.

Technical Data

Environmental class	II
Protection class	S
Max. battery capacity	18 Ah
Control panels	13,8 V DC
Low current programmable outputs rating	50 mA
High current programmable outputs rating	2000 mA
Power supply rating	1,2 A
Board dimensions	173 x 106 mm
Operating temperature range	-10…+55 °C
Main board supply voltage (±15%)	18 V AC, 50-60 Hz
Standby mode current consumption	127 mA
Max. current consumption	234 mA
