Satel

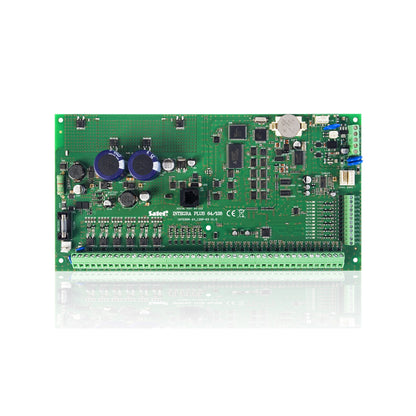

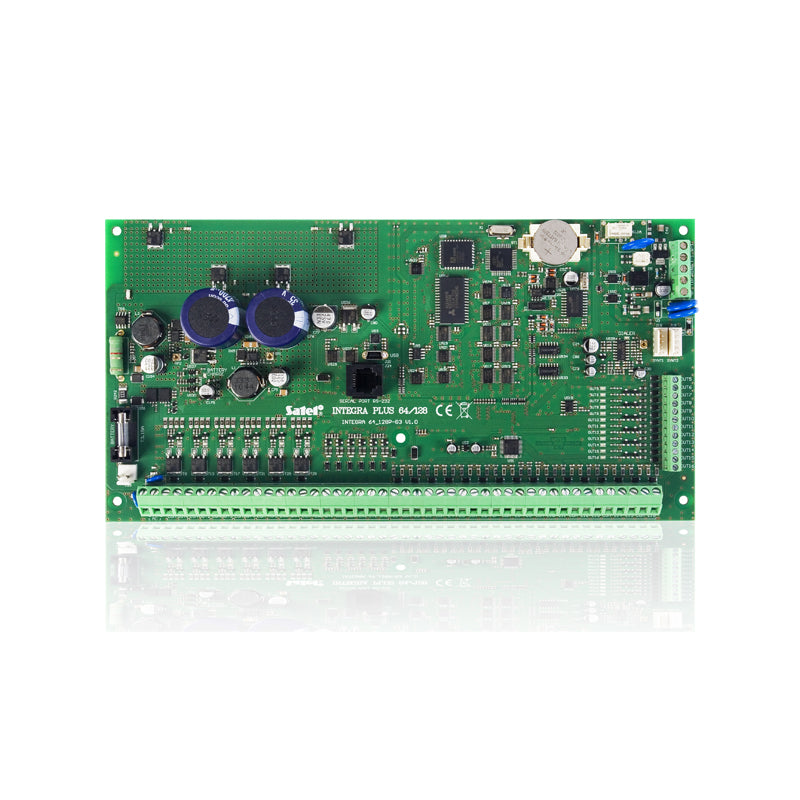

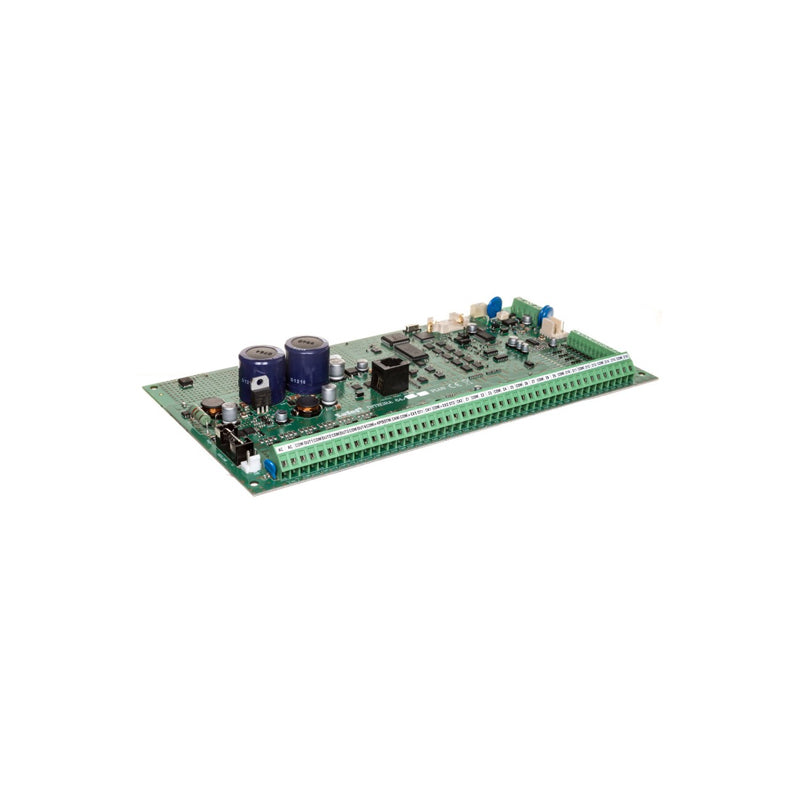

INTEGRA 64 Plus

Alarm control panel main board

$323.44 NZD

Sale Sold out

Product Dimension: 264 x 134 mm

INTEGRA 64 Plus | EN50131 Grade 3 compliant alarm control panel main board, with 16 up to 64 zones and outputs

The INTEGRA Plus control units offer advanced, Grade 3 (EN50131) compliant security for high-risk sites like banks.

Security & Scalability: Supports up to 64 zones (with 3 EOL), 32 partitions, 8 objects, and 64 programmable outputs.
Integrated Power: Features a built-in 2A+1.5A power supply with comprehensive autodiagnostics.
Flexible Control: Manage the system via touchscreens, keypads, keyfobs, proximity cards, PC, smartphone, or voice menu.
Automation & Access: Includes 64 independent timers for automated control, plus access control and home automation functionalities.
Logging & Users: Maintains a non-volatile event log of 5631 entries with printing support, and accommodates 192+8+1 user codes.
Connectivity: Offers USB for PC programming, dedicated expansion buses, and remote firmware upgrades.

Technical Data

Installer-defined text messaged	64
Extender circuits	up to 64
Environmental class according to EN50130-5	II
Voice messages	16
Communication buses	1+2
Maximum number of programmable inputs	64
Maximum number of programmable outputs	64
Maximum humidity	93±3%
Maximum current consumption from the battery	200 mA
Maximum current consumption from the 230V network	400 mA
Maximum battery charging current	1500 mA
Keypads	up to 8
Weight	320 g
Battery cut-off voltage (±10%)	10,5 V
Power supply output voltage	10,5…14 V DC
Supply voltage (±15%)	20 V AC, 50-60 Hz
Battery failure voltage threshold (±10%)	11 V
Telephone numbers for notification (voice/PAGER + SMS)	16+16
Carrying capacity of the +EX1 and +EX2 outputs (±10%)	3000 mA
Low current programmable outputs rating	50 mA
High current programmable outputs rating	3000 mA
Carrying capacity of the +KPD output (±10%)	3000 mA
Event log	5631
Objects	8
Current consumption from the 230V network in standby	135 mA
Current consumption from battery - standby	130 mA
Security grade according to EN 50131	Grade 3
Partitions	32
Timers	64
Users + Administrators	192 + 8
Programmable wired inputs	16
Power supply current efficiency (supplying devices + charging batteries)	2000 + 1500 mA
Programmable wired outputs	16
Supplying outputs	3
Board dimensions	264 x 134 mm
Operating temperature range	-10…+55 °C
Recommended transformer type	75 VA
