Satel

OPAL

Outdoor PIR + MW

$97.12 NZD

Sale Sold out

Product Dimension: 65 x 138 x 58 mm

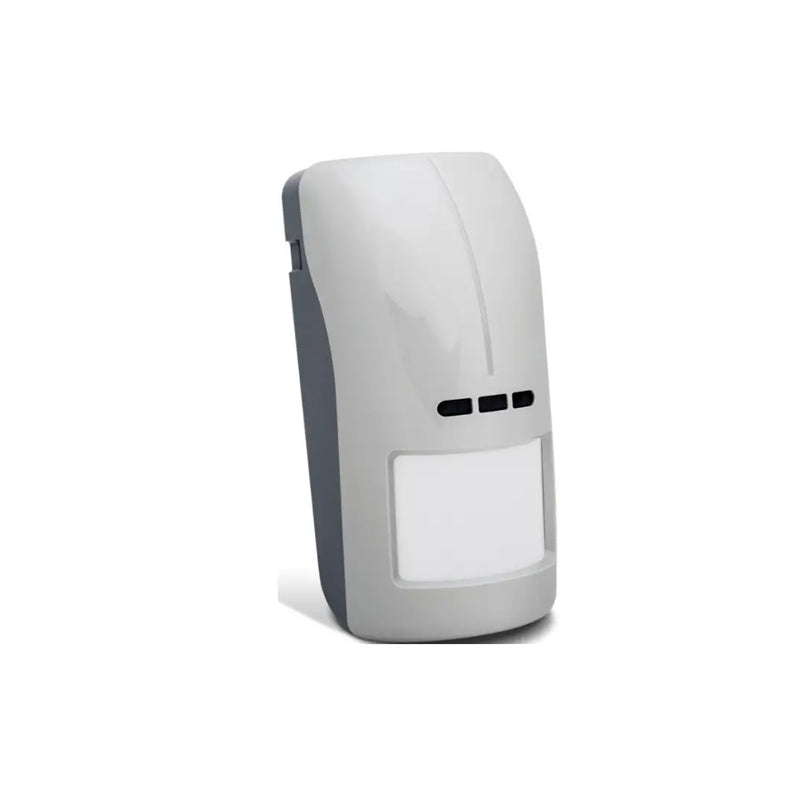

OPAL | Outdoor PIR + MW dual technology motion detector

The OPAL is an outdoor dual-technology (PIR and microwave) motion detector, ideal for harsh environments both outdoors and challenging indoor spaces.

Reliable Detection: Combines PIR and MW with microwave anti-masking, auto-tuning, and digital temperature compensation for high false alarm immunity in conditions like rain, snow, or strong wind, operating from -40°C to +55°C.
Wide Coverage: Offers a 100-degree detection angle, over 15-meter reach, and protected look-down zone. Pet immunity (up to 20kg) prevents false alarms from small animals.

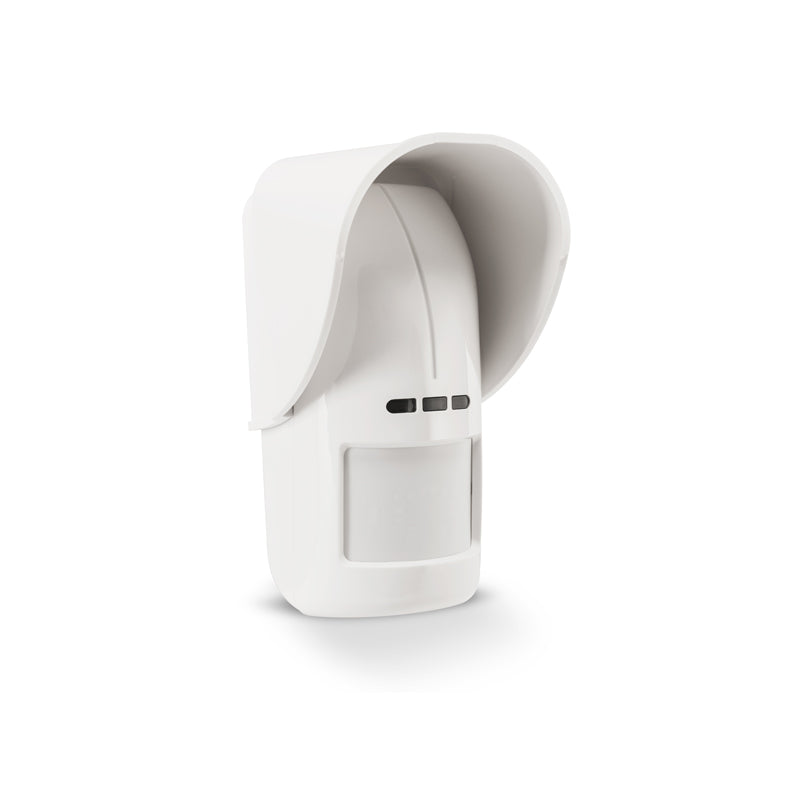

Durable Design: Features a splash-proof (IP54), high-strength, UV-resistant polycarbonate enclosure with tamper protection. Optional HOOD C cover provides additional weather and dirt protection.
Flexible Installation: Mounts directly or using BRACKET C (angle/ball-joint) and BRACKET E modular sets for varied positioning. Available in white and gray.

Technical Data

Microwave frequency	24 GHz
D/N dusk sensor output (OC-type output)	50 mA / 12 V DC
Relay contact resistance (anti-masking output)	34 Ω
Relay contact resistance (alarm output)	34 Ω
Anti-masking outputs (NC relay, resistive load)	40 mA / 24 V DC
Tamper outputs (NC)	100 mA / 30 V DC
Alarm outputs (NC relay, resistive load)	40 mA / 24 V DC
Detector weight (without bracket)	176 g
IP code	IP54
Warm-up period	40 s
Security grade according to EN50131-2-4	Grade 2
Supply voltage	12 V DC
Complied with standards	EN50131-1, EN 50131-2-4, EN50130-4, EN50130-5
Alarm signaling time	2 s
Environmental class according to EN50130-5	IIIa
Dimensions	65 x 138 x 58 mm
Maximum humidity	93±3%
Max. current consumption	20 mA
Standby mode current consumption	15 mA
Recommended mounting height	2,4 m
Operating temperature range	-40...+55 °C
Detected target velocity	0,3...3 m/s
