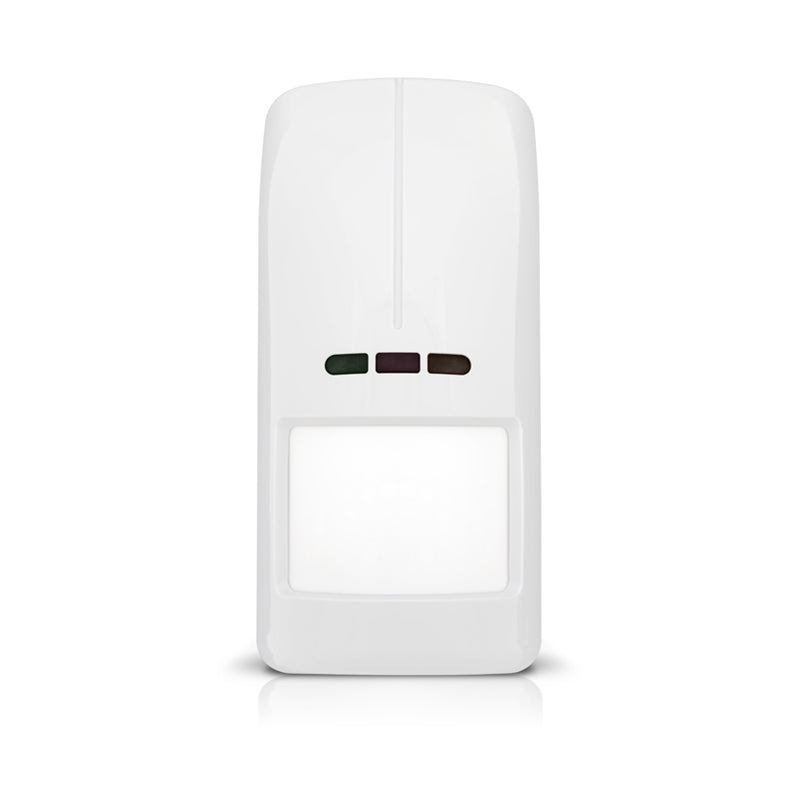

OPAL Plus GY Set | Outdoor PIR + MW dual technology motion detector
The OPAL Plus is an advanced outdoor dual-technology (PIR and microwave) motion detector, optimized for challenging indoor and outdoor environments.
Reliable Detection: Combines PIR and MW with microwave anti-masking and auto-tuning for high false alarm immunity in harsh weather (-40°C to +55°C). It offers a 100-degree, 15+ meter detection range with creep zone protection and pet immunity (up to 20kg).
Home Automation Integration: Features a built-in dusk sensor (OC output) for automating lights, roller shutters, gates, etc., without additional detectors. It can interface with KNX systems via INTEGRA control panels.
Convenient Configuration: Remote sensitivity adjustment for all detection circuits and the dusk sensor is possible using an OPT-1 keyfob, eliminating the need to open the enclosure.
Durable Design: IP54-rated, splash-proof polycarbonate enclosure with high mechanical strength, UV resistance, and tamper protection. Optional HOOD C cover enhances weather protection.
Flexible Installation: Mounts directly or using BRACKET C (angle/ball-joint) and BRACKET E modular sets.
