Satel

OPAL Plus SET

Outdoor PIR + MW

$133.09 NZD

Sale Sold out

Product Dimension: 65 x 138 x 58 mm

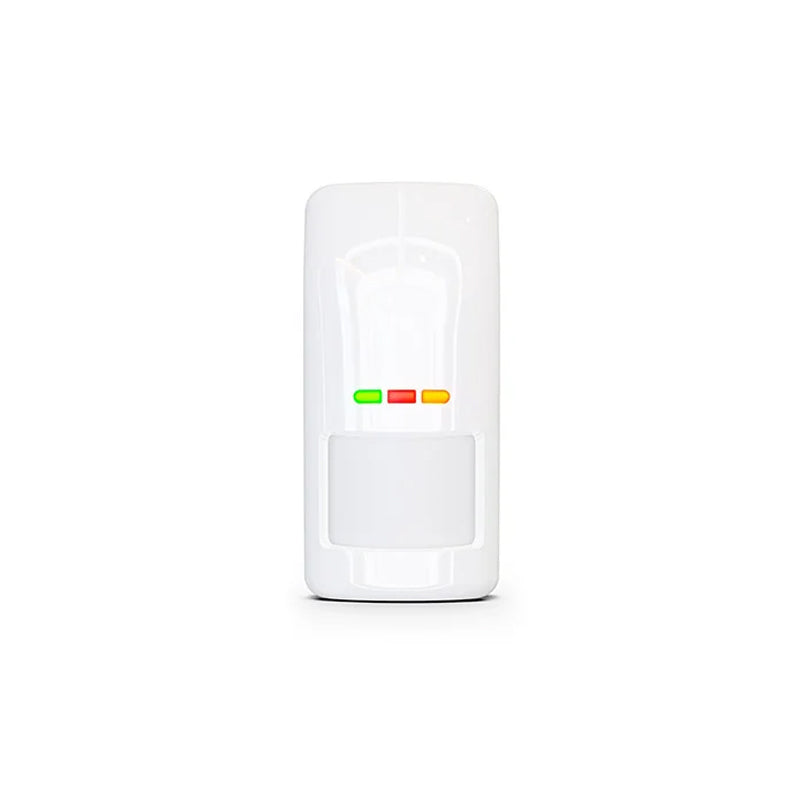

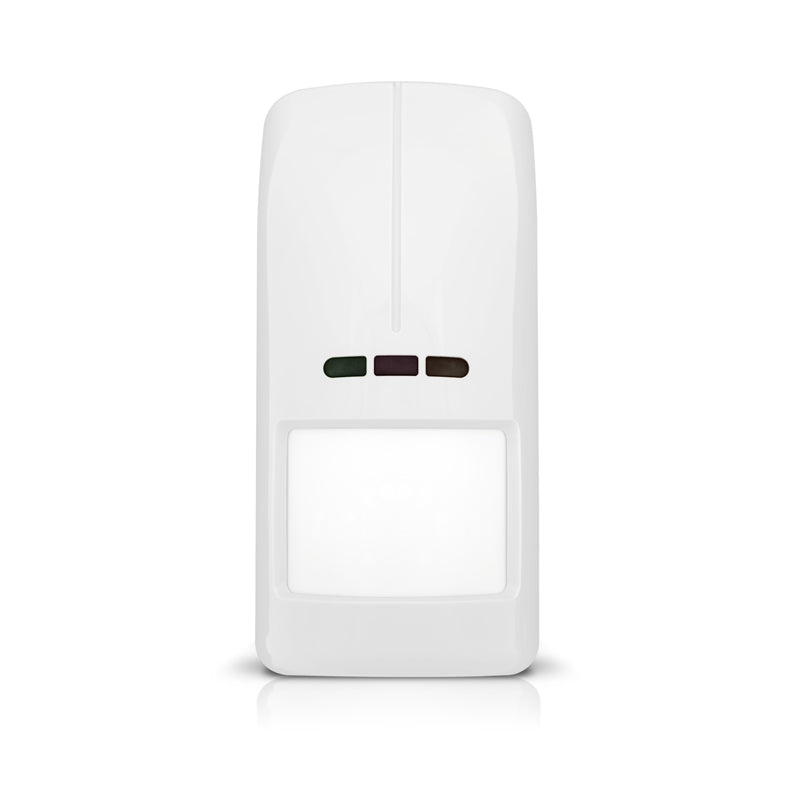

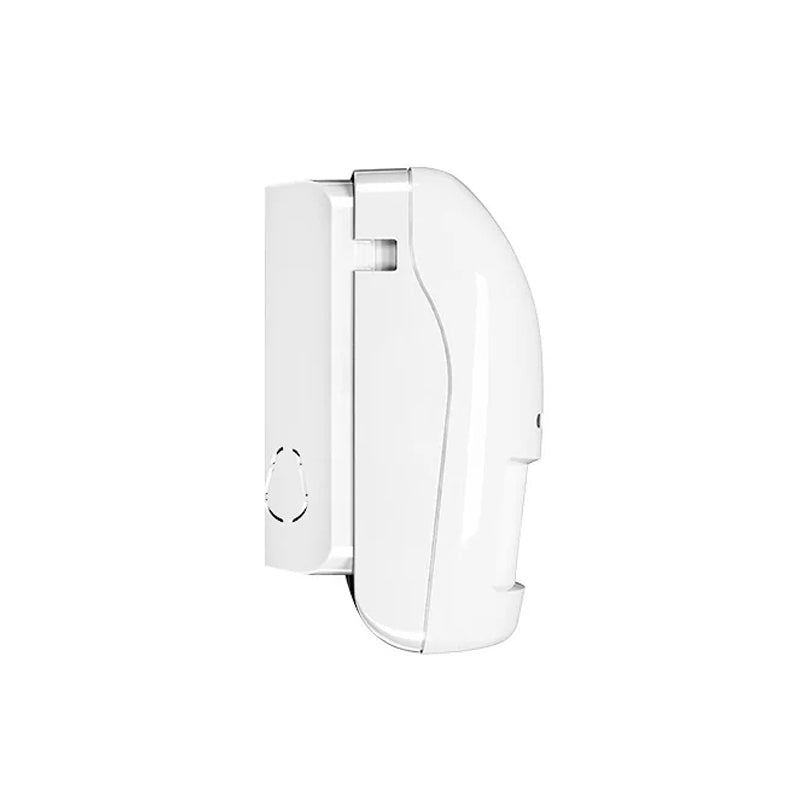

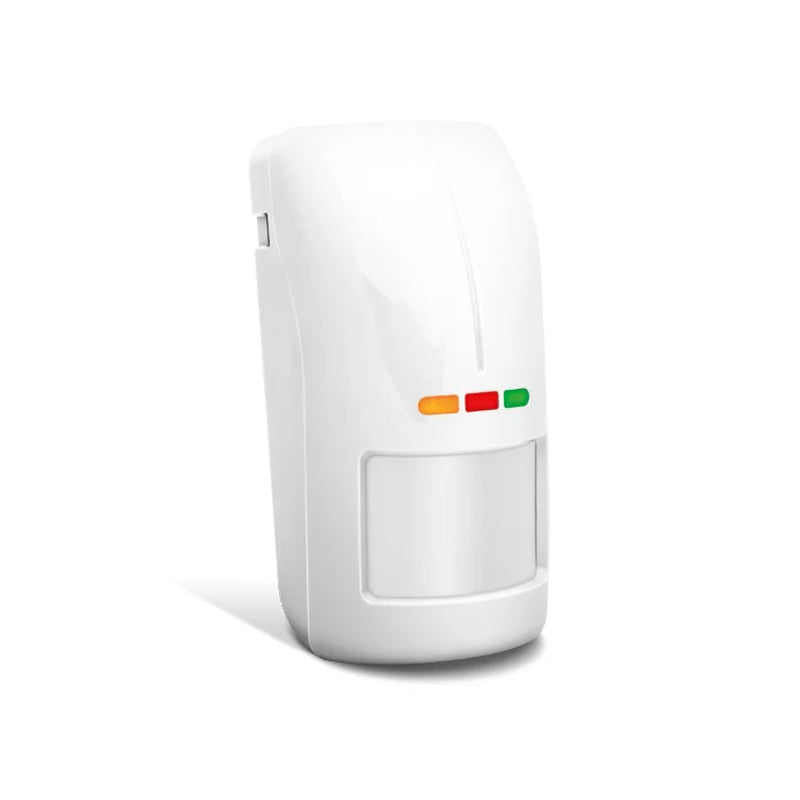

OPAL Plus SET | Outdoor PIR + MW dual technology motion detector

The OPAL Plus is a robust outdoor motion detector combining PIR and microwave technologies for high reliability in extreme weather. Designed for security and automation, it offers precise detection, anti-masking, and pet immunity, with remote configuration and versatile mounting options.

Key Features:

Dual tech: PIR + microwave with anti-masking
Weatherproof (-40°C to +55°C), IP54 rated
100° detection, 15m range, look-down zone
Small pet immunity (up to 20kg)
Built-in dusk sensor for automation
KNX system integration via INTEGRA
Remote setup via OPT-1 keyfob
UV-resistant housing
Flexible brackets & HOOD cover options
Available in white and gray

Technical Data

Microwave frequency	24 GHz
D/N dusk sensor output (OC-type output)	50 mA / 12 V DC
Relay contact resistance (anti-masking output)	34 Ω
Relay contact resistance (alarm output)	34 Ω
Anti-masking outputs (NC relay, resistive load)	40 mA / 24 V DC
Tamper outputs (NC)	100 mA / 30 V DC
Alarm outputs (NC relay, resistive load)	40 mA / 24 V DC
Detector weight (without bracket)	176 g
IP code	IP54
Warm-up period	40 s
Security grade according to EN50131-2-4	Grade 2
Supply voltage	12 V DC
Complied with standards	EN50131-1, EN 50131-2-4, EN50130-4, EN50130-5
Alarm signaling time	2 s
Environmental class according to EN50130-5	IIIa
Dimensions	65 x 138 x 58 mm
Maximum humidity	93±3%
Max. current consumption	20 mA
Standby mode current consumption	15 mA
Recommended mounting height	2,4 m
Operating temperature range	-40...+55 °C
Detected target velocity	0,3...3 m/s
