Satel

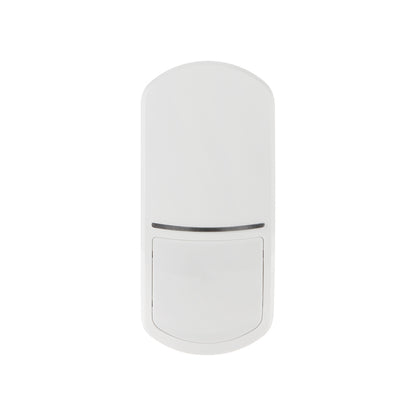

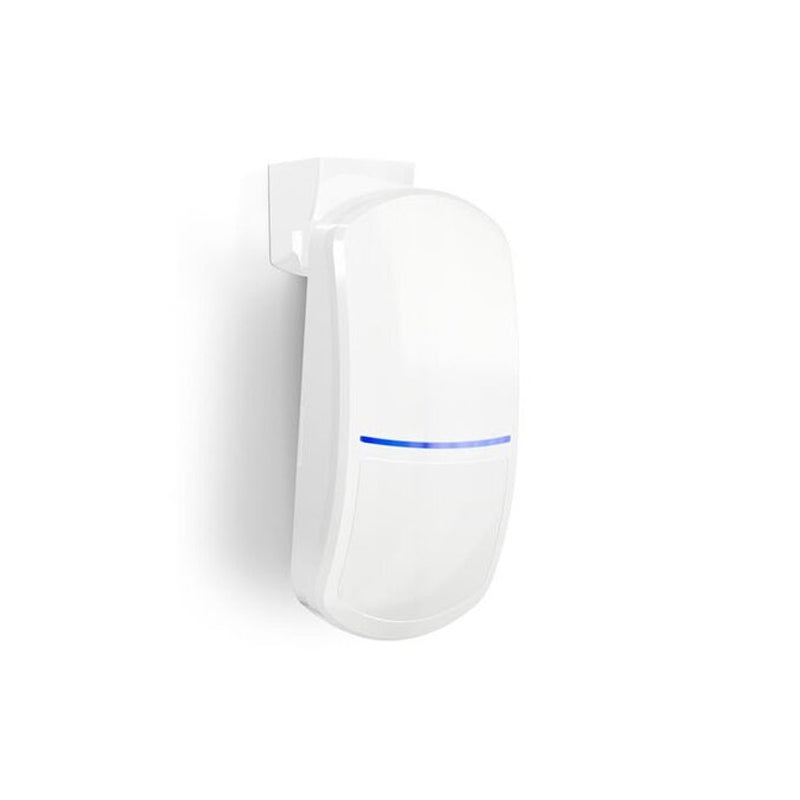

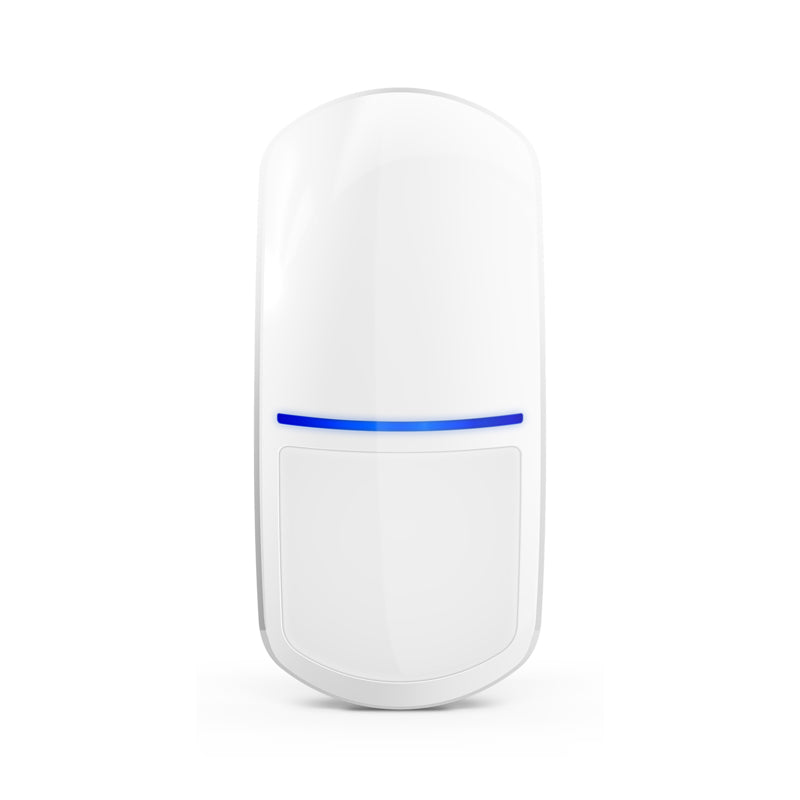

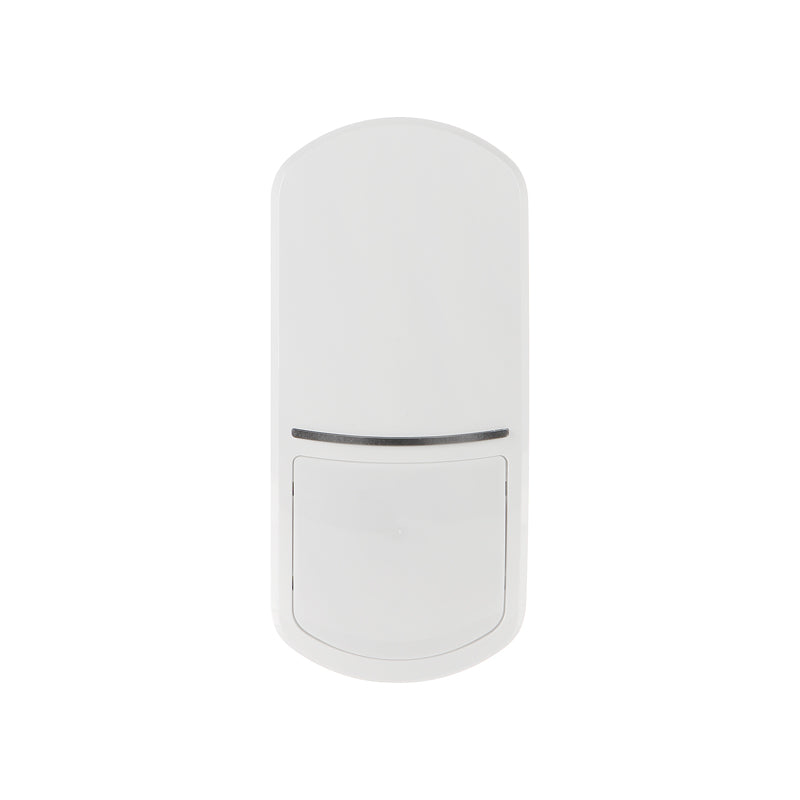

SLIM-DUAL-PRO

Dual-tech PIR+MW

$106.24 NZD

Sale Sold out

Product Dimension: 62 x 137 x 42 mm

SLIM-DUAL-PRO | Dual-tech PIR+MW motion detector with IR anti-masking function

The SLIM‑DUAL‑PRO is a sleek indoor dual-technology (PIR + microwave) motion detector with active IR anti-masking, designed to meet Grade 3 security requirements and ensure reliable detection in professional-grade alarm systems.

Key Features:

Dual-trigger detection using PIR and microwave sensors
Active IR anti-masking (Grade 3 certified)
Coverage up to 20 × 24 m with a 90° detection angle
Interchangeable lenses: wide-angle, curtain, long-range
Digital temperature compensation and lighting/airflow filter
Built-in EOL resistors (1.1 kΩ / 4.7 kΩ / 5.6 kΩ)
Adjustable sensitivity via buttons or OPT-1 keyfob
Tamper protection against opening and wall removal
LED indicator control and supervision outputs
Compact size: 62 × 137 × 42 mm; 12 V DC operation

Technical Data

Microwave frequency	24,125 GHz
Relay contact resistance (anti-masking output)	26 Ω
Relay contact resistance (tamper output)	26 Ω
Permissible installation height	up to 4 m
Relay contact resistance (alarm output)	26 Ω
Anti-masking outputs (NC relay, resistive load)	40 mA / 24 V DC
Tamper outputs (NC relay, resistive load)	40 mA / 24 V DC
Alarm outputs (NC relay, resistive load)	40 mA / 24 V DC
Detection area	20 m x 24 m, 90°
Warm-up period	30 s
EOL resistors	2 x 1.1 kΩ / 2 x 4.7 kΩ / 2 x 5.6 kΩ
Security grade according to EN50131-2-4	Grade 3
Supply voltage	12 V DC
Complied with standards	EN 50131-1, EN 50131-2-4, EN 50130-4, EN 50130-5
Alarm signaling time	2 s
Environmental class according to EN50130-5	II
Dimensions	62 x 137 x 42 mm
Maximum humidity	93±3%
Weight	144 g
Max. current consumption	85 mA
Recommended mounting height	2,4 m
Operating temperature range	-10°C...+55°C
Detected target velocity	0,2...3 m/s
