Satel

SO-MF3-B

MIFARE® proximity card reader

$124.22 NZD

Sale Sold out

Product Dimension: 45 x 128 x 21 mm

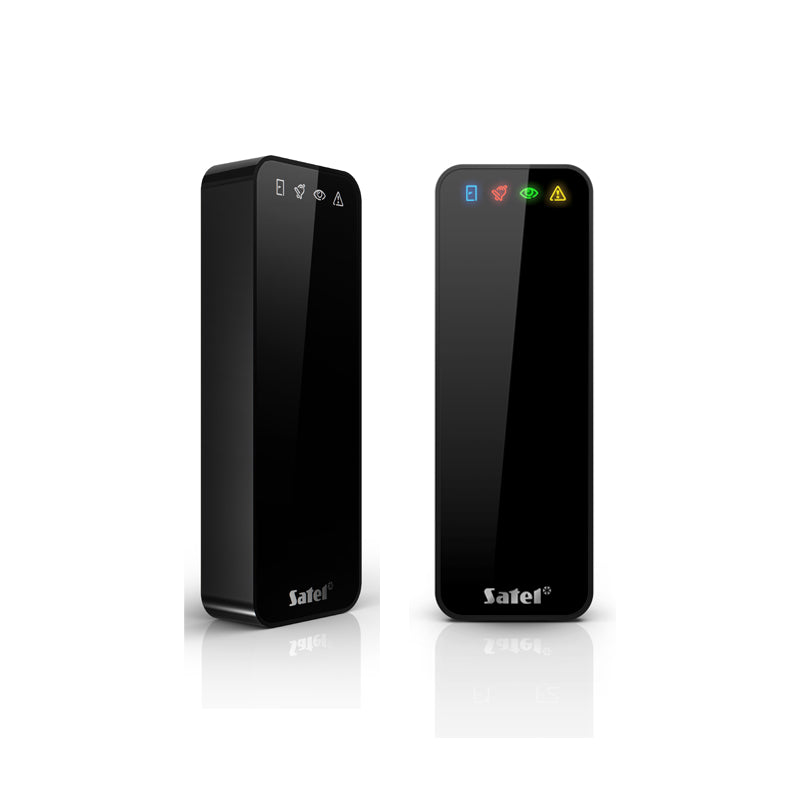

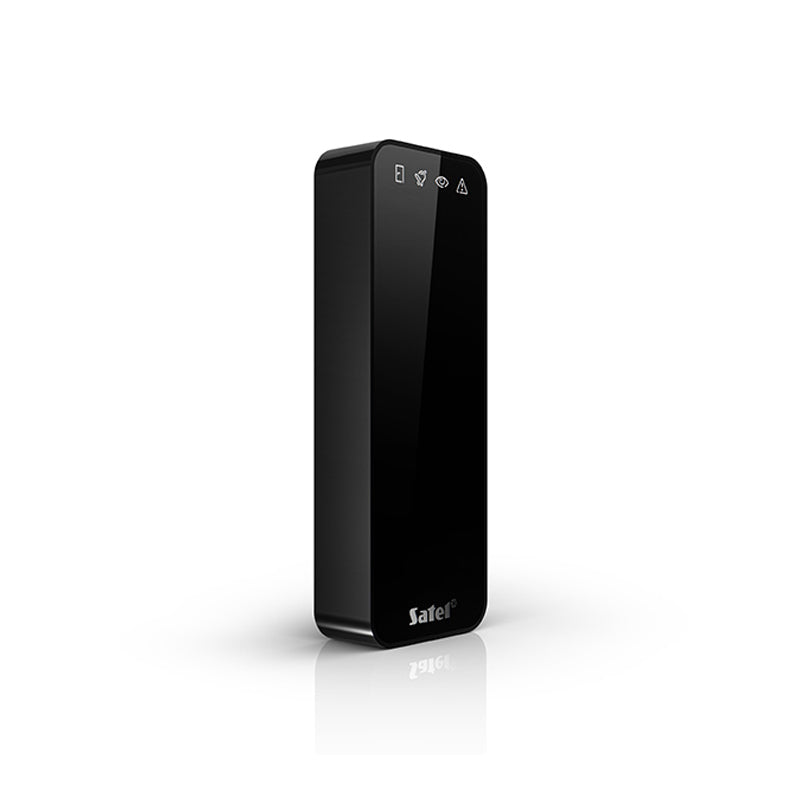

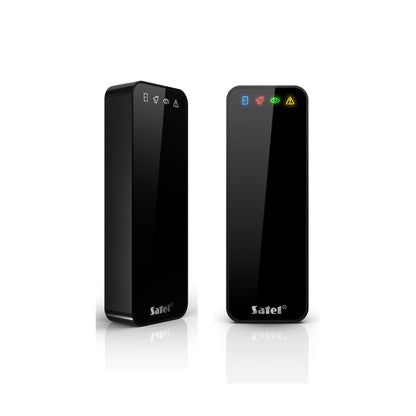

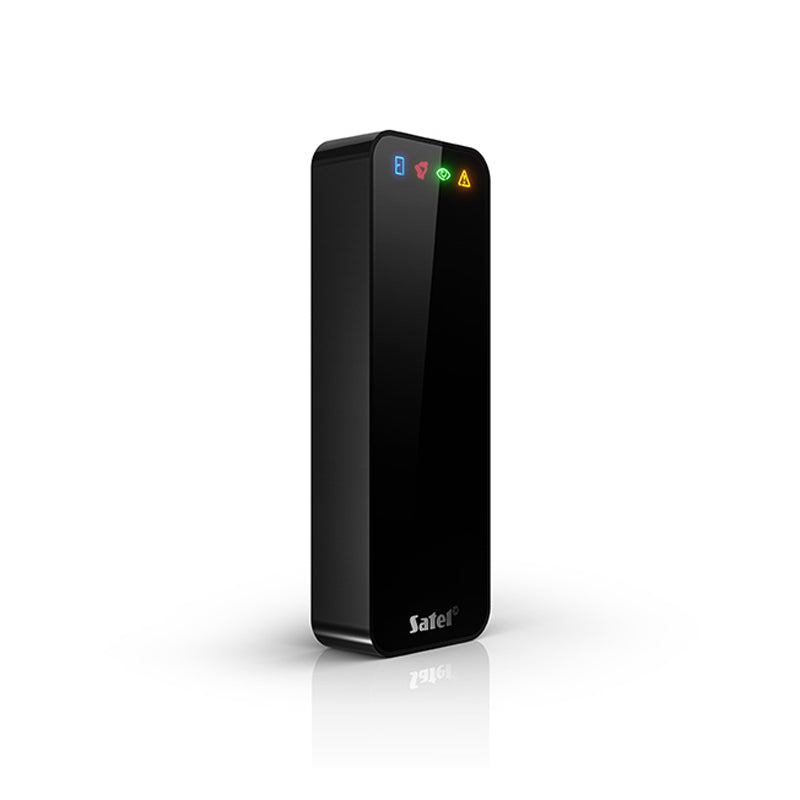

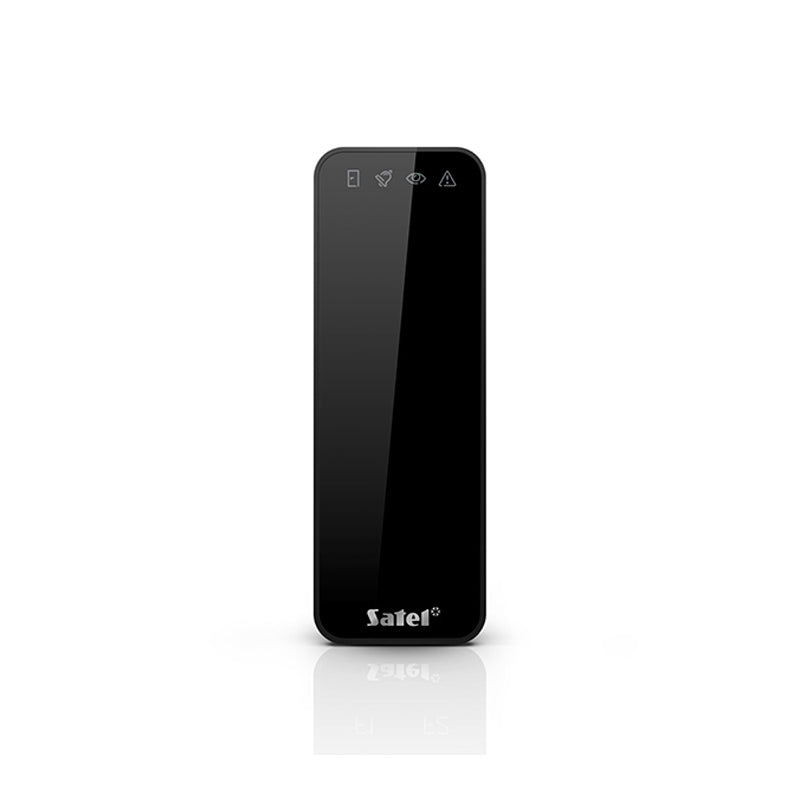

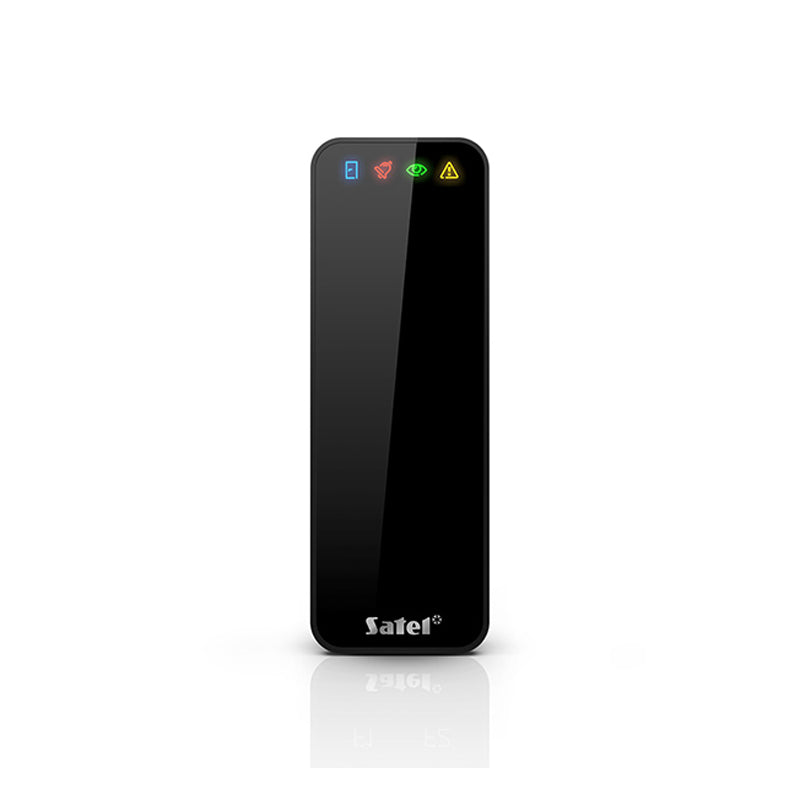

SO-MF3-B | MIFARE® proximity card reader

The CR-MF3 is a versatile proximity card reader that supports integration with INTEGRA, ACCO NET, ACCO, third-party systems (OSDP, Wiegand), or standalone operation for door control.

Key Features:

MIFARE® card support: Ultralight, Classic, DESFire (EV1/EV2/EV3)
Interfaces: RS-485 (OSDP v2.2), Wiegand, EM-Marin
Modes:
- INTEGRA: arming/disarming, door control
- ACCO/ACCO NET: door access, blocking
- 3rd-party: OSDP/Wiegand compatibility
- Standalone: 128 users, relay output, usage limits
LED indicators (×4), adjustable buzzer
Optical tamper protection
Program via CR Soft or MC-SRV-8 card
Colors: white (SO-MF3-W), black (SO-MF3-B)

Technical Data

Supply voltage	12 V DC
Operating temperature range	-25°C...+55°C
Standby mode current consumption	63 mA
Weight	87 g
Maximum humidity	93±3%
Dimensions	45 x 128 x 21 mm
Relay output (resistive load)	1 A / 30 V DC
Reader operating frequency	13,553...13,567 MHz
Reading range for the MC-DF3-2 encrypted card	up to 55 mm
