Satel

SO-MF3-W

MIFARE® proximity card reader

$124.22 NZD

Sale Sold out

Product Dimension: 45 x 128 x 21 mm

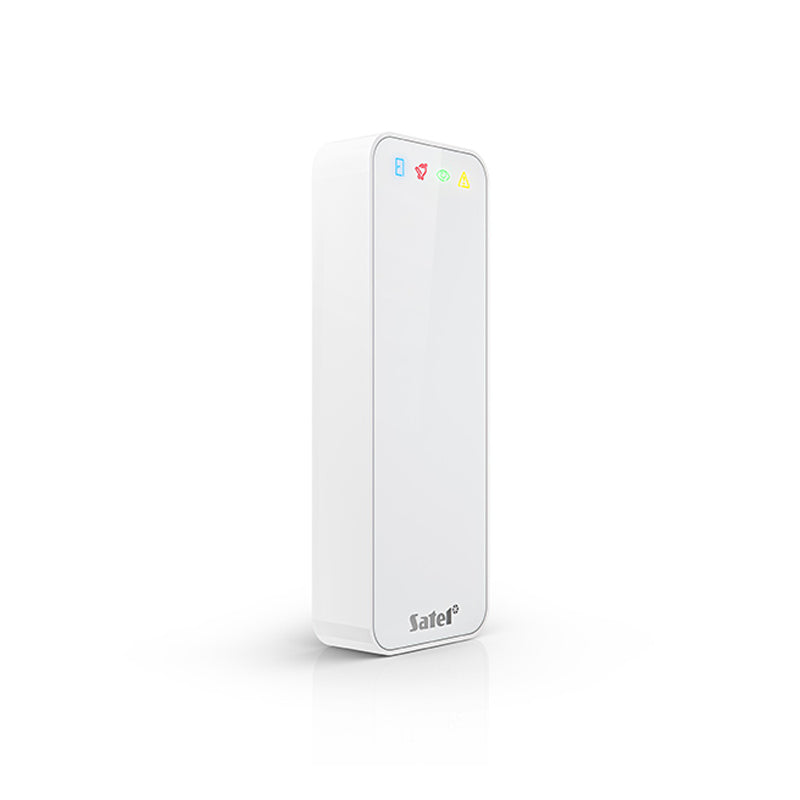

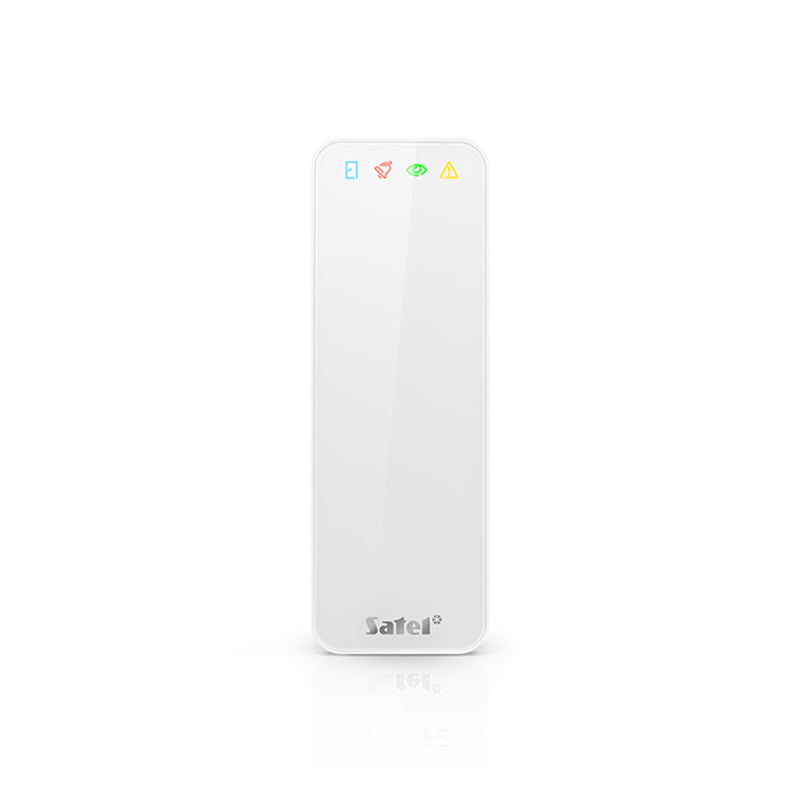

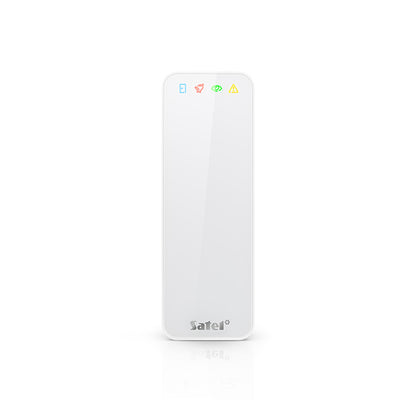

SO-MF3-W | MIFARE® proximity card reader

The CR-MF3 is a multi-mode proximity card reader supporting MIFARE® cards, ideal for integration with INTEGRA, ACCO, third-party systems (OSDP/Wiegand), or as a standalone access controller.

Key Features:

Operates with INTEGRA, ACCO NET, ACCO, 3rd-party systems, or standalone
Reads MIFARE Ultralight, Classic, DESFire (EV1/EV2/EV3)
Communication: OSDP (RS-485), Wiegand, EM-Marin
INTEGRA: arming, disarming, door control via INT-R
ACCO: door access and locking via ACCO-KP
Standalone: 128 users, relay output, RTE & door status input
LED indicators ×4, buzzer, optical tamper protection
Program via CR Soft or MC-SRV-8 card

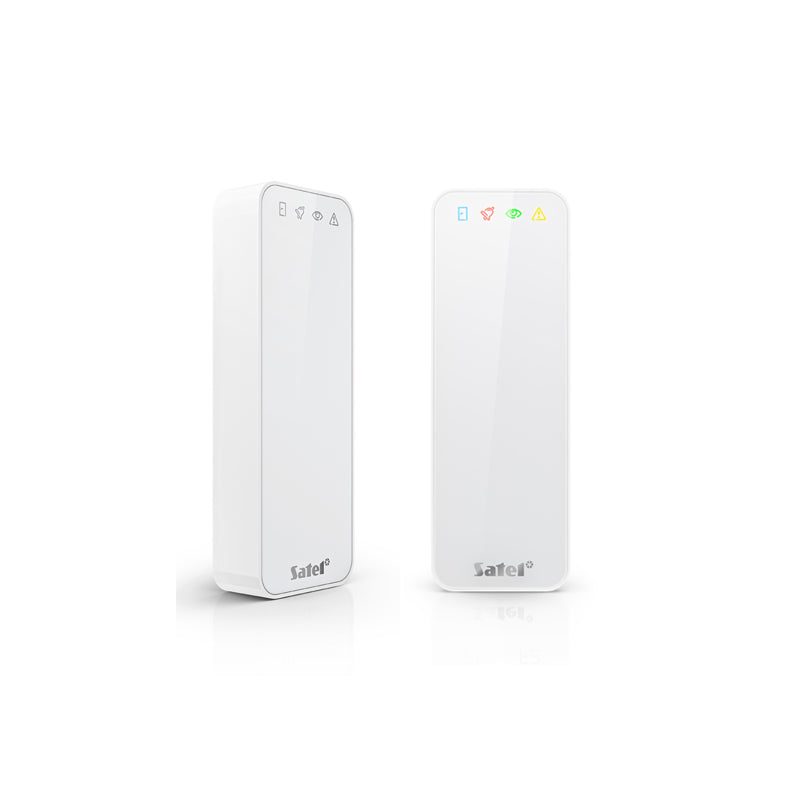

Available in white (SO-MF3-W) and black (SO-MF3-B)

Technical Data

Supply voltage	12 V DC±15% V DC
Operating temperature range	-25°C...+55°C
Standby mode current consumption	63 mA
Max. current consumption	112 mA
Weight	87 g
Maximum humidity	93±3%
Dimensions	45 x 128 x 21 mm
Relay outputs (resistive load)	1 A / 30 V DC
Reader operating frequency	13,553...13,567 MHz
Reading range for the MC-DF3-2 encrypted card	up to 55 mm
