Satel

SO-MF5-B

Keypad with MIFARE

$146.64 NZD

Sale Sold out

Product Dimension: 45 x 128 x 21 mm

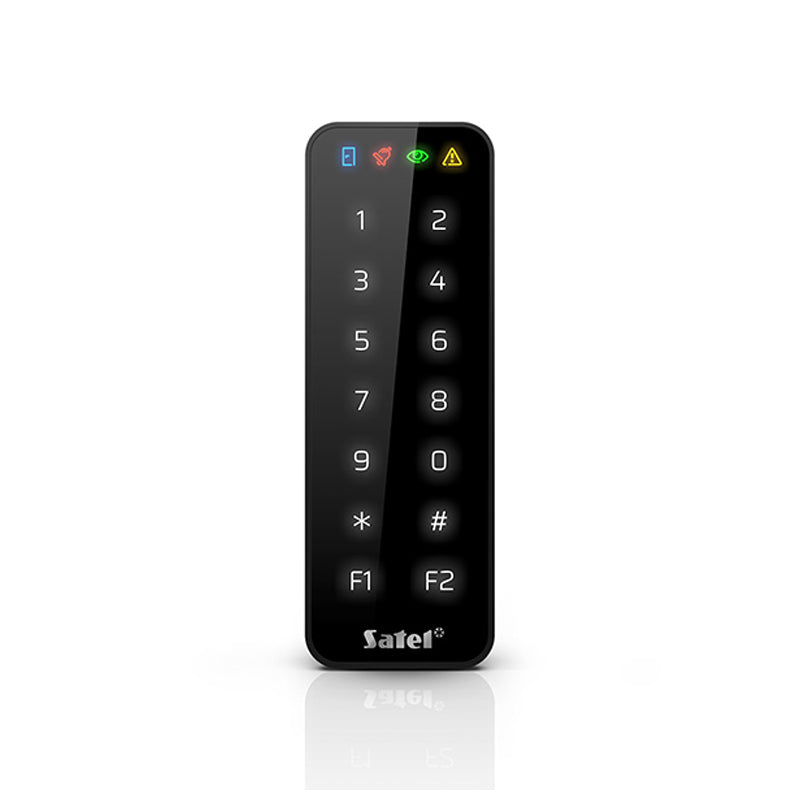

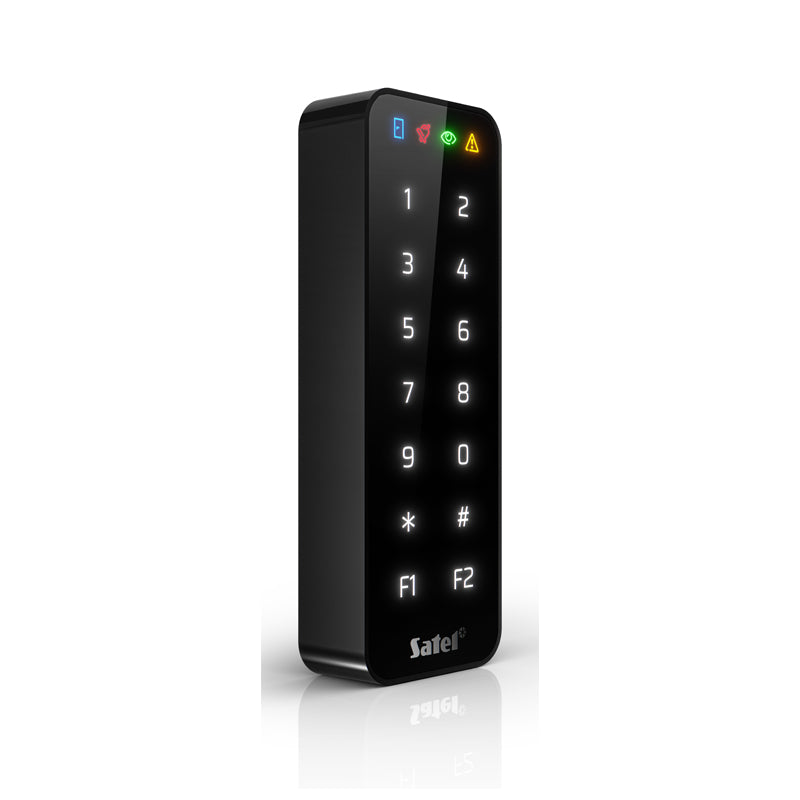

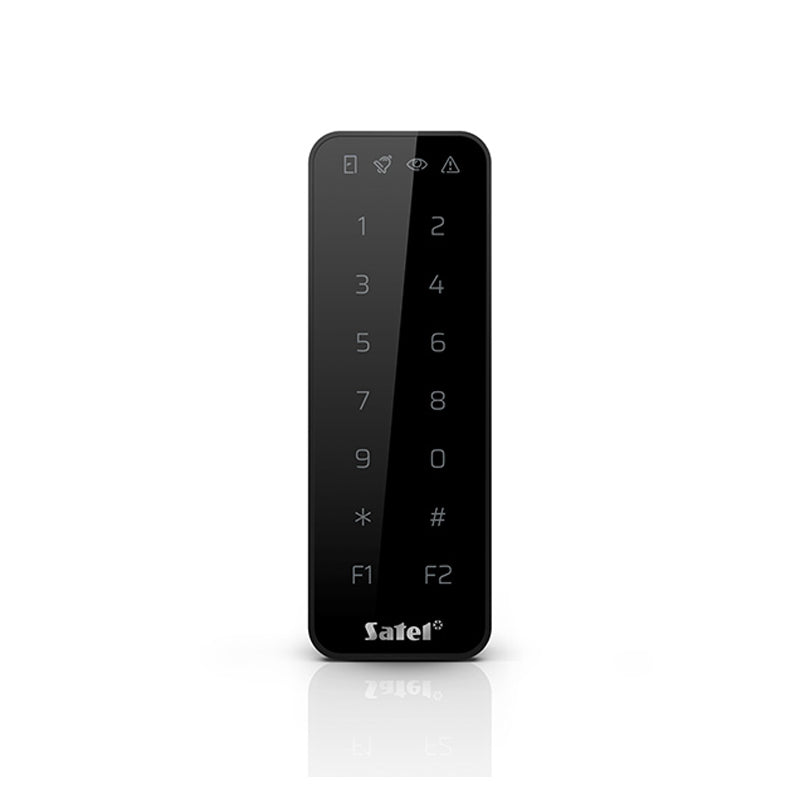

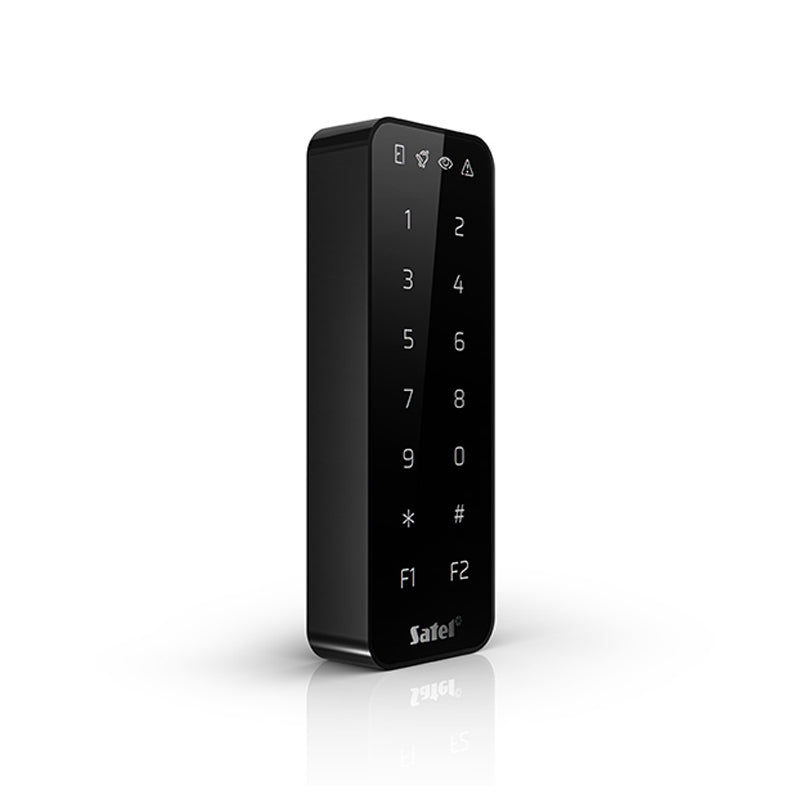

SO-MF5-B | Keypad with MIFARE® proximity card reader

The SO-MF5 is a multi-mode access control keypad with MIFARE® card reader, supporting INTEGRA, ACCO, third-party, or standalone operation.

Key Features:

Operates as:
- INT-SCR keypad for INTEGRA
- ACCO-SCR keypad for ACCO/ACCO NET
- 3rd-party keypad via OSDP/Wiegand
- Standalone door controller
Code and/or MIFARE® card authentication
12 backlit keys, F1/F2 function buttons
Relay output, door status, and RTE inputs
Supports 128 codes/cards in standalone mode
Tamper protection, buzzer, and LED indicators
Programmable via CR Soft or MC-SRV-8
Available in white (SO-MF5-W) and black (SO-MF5-B)

Technical Data

Supply voltage	12 V DC ±15% V DC
Operating temperature range	-25°C...+55°C
Standby mode current consumption	65 mA
Max. current consumption	120 mA
Weight	93 g
Maximum humidity	93±3%
Dimensions	45 x 128 x 21 mm
Relay output (resistive load)	1 A / 30 V DC
BELL output, OC type	30 mA / 12 V DC
Reader operating frequency	13,553...13,567 MHz
Reading range for the MC-DF3-2 encrypted card	up to 55 mm
