Satel
Keypad with MIFARE
Regular price
$146.64 NZD
Regular price
Sale price
$146.64 NZD
Product Dimension: 45 x 128 x 21 mm
Couldn't load pickup availability

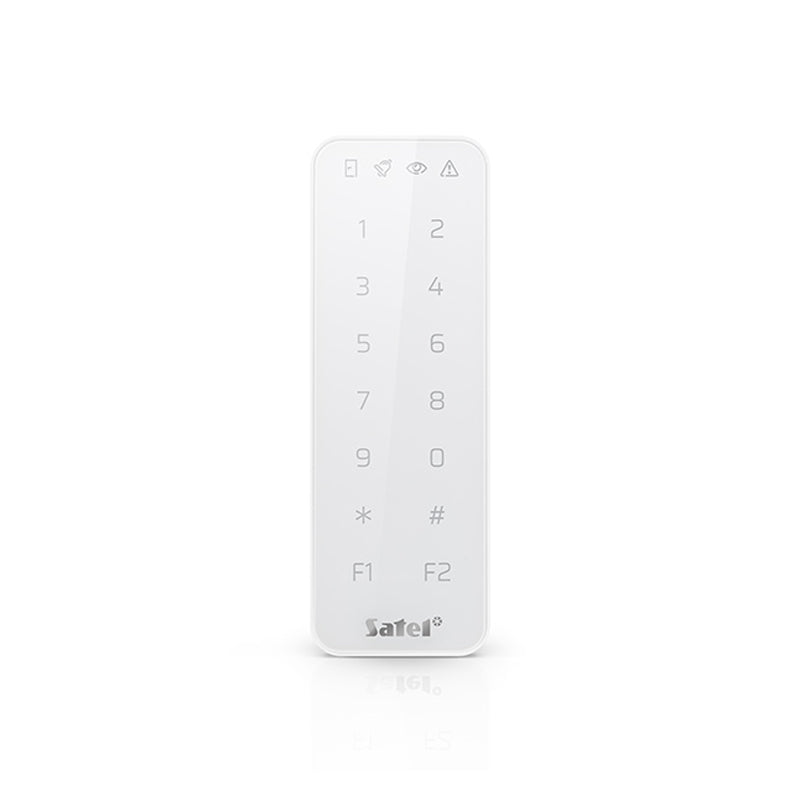

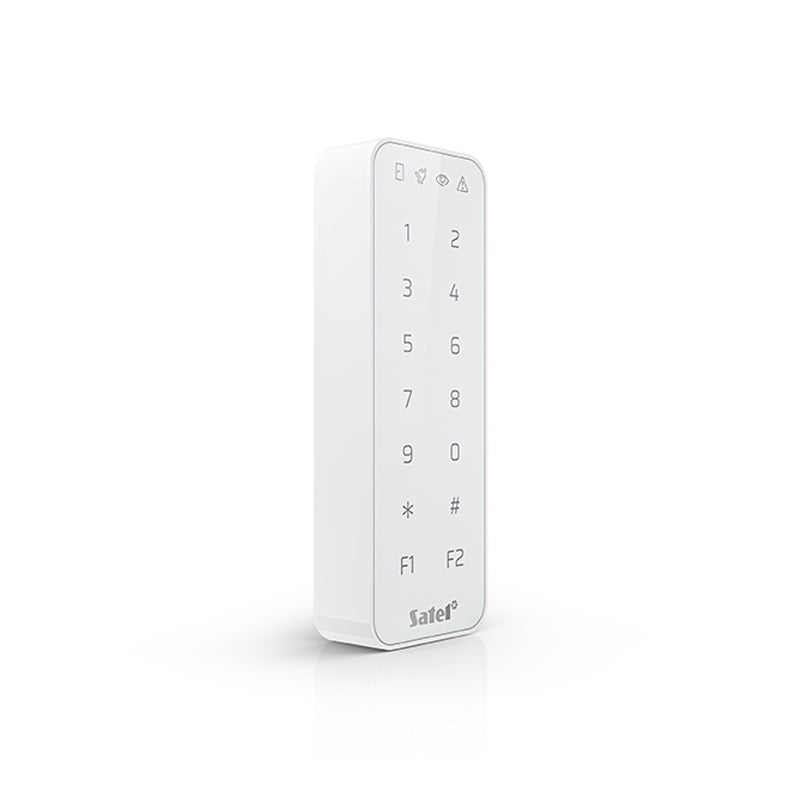

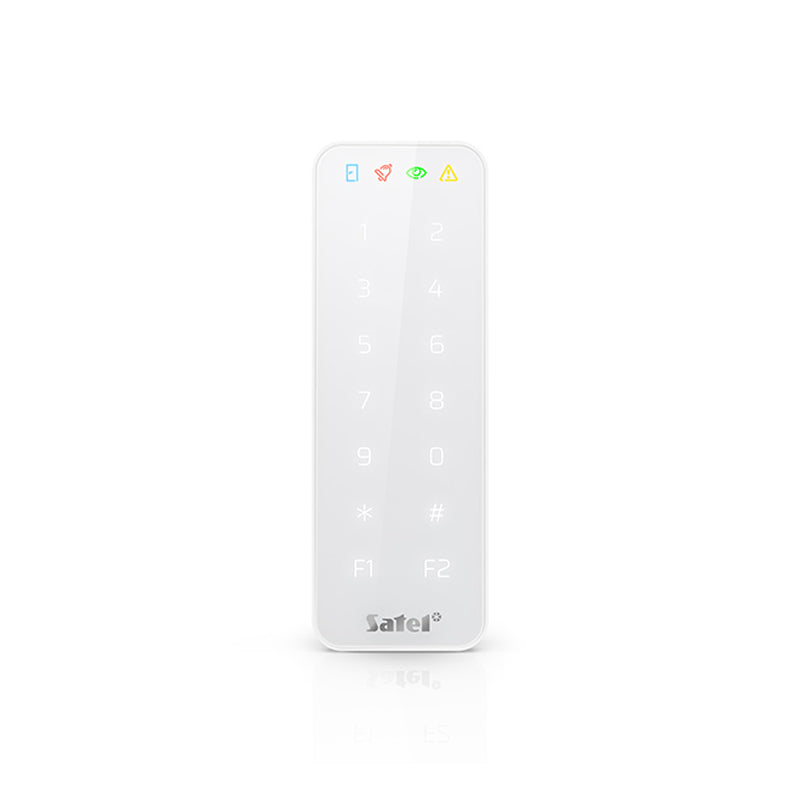

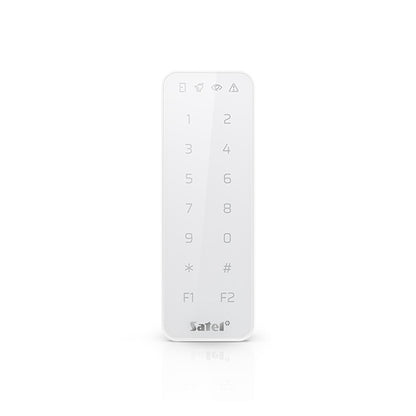

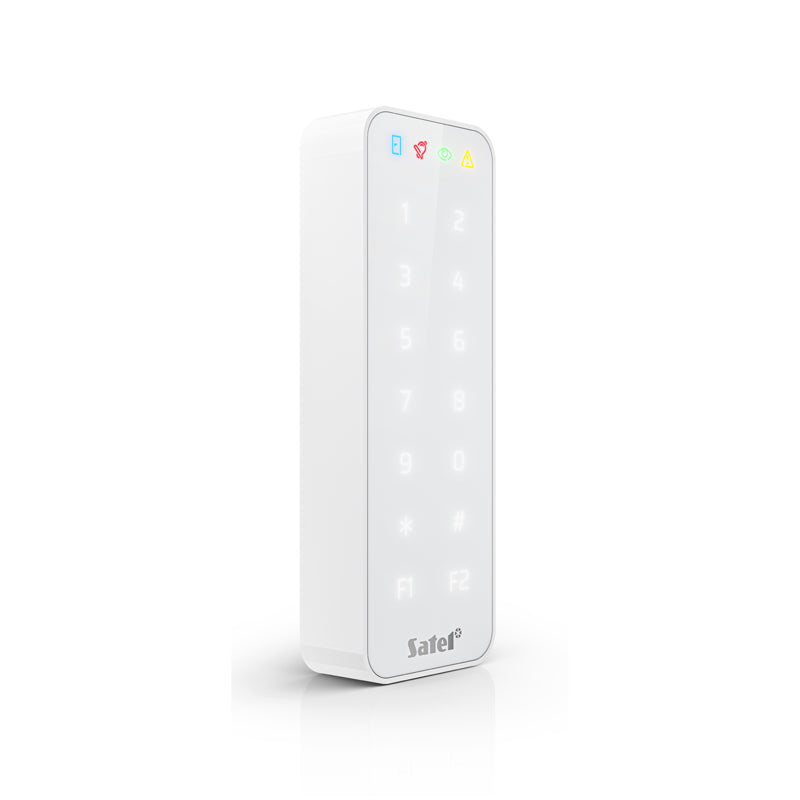

SO-MF5-W | Keypad with MIFARE® proximity card reader
The SO-MF5 is a versatile access control keypad with a built-in MIFARE® reader, supporting INTEGRA, ACCO, third-party, and standalone systems.
Key Features:
- Operates as INT-SCR, ACCO-SCR, 3rd-party (OSDP/Wiegand), or standalone
- 12 white-backlit keys, 2 function keys (F1/F2)
- MIFARE® card support (Ultralight, Classic, DESFire)
- Code/card-based functions: arming, door control, alarm response
- Relay, door status, and RTE inputs
- Up to 128 users in standalone mode
- Buzzer, 4 LED indicators, OC output (BELL)
- Tamper protection and adjustable settings
- Configurable via CR Soft or MC-SRV-8
- Available in white (SO-MF5-W) or black (SO-MF5-B)
Technical Data
| Supply voltage |
12 V DC ±15% V DC |
| Operating temperature range |
-25°C...+55°C |
| Standby mode current consumption |
65 mA |
| Max. current consumption |
120 mA |
| Weight |
93 g |
| Maximum humidity |
93±3% |
| Dimensions |
45 x 128 x 21 mm |
| Relay output (resistive load) |
1 A / 30 V DC |
| BELL output, OC type |
30 mA / 12 V DC |
| Reader operating frequency |
13,553...13,567 MHz |
| Reading range for the MC-DF3-2 encrypted card |
up to 55 mm |
