Satel

TSD-1

Universal smoke and heat detector

$44.00 NZD

Sale Sold out

Product Dimension: ø108 x 61 mm

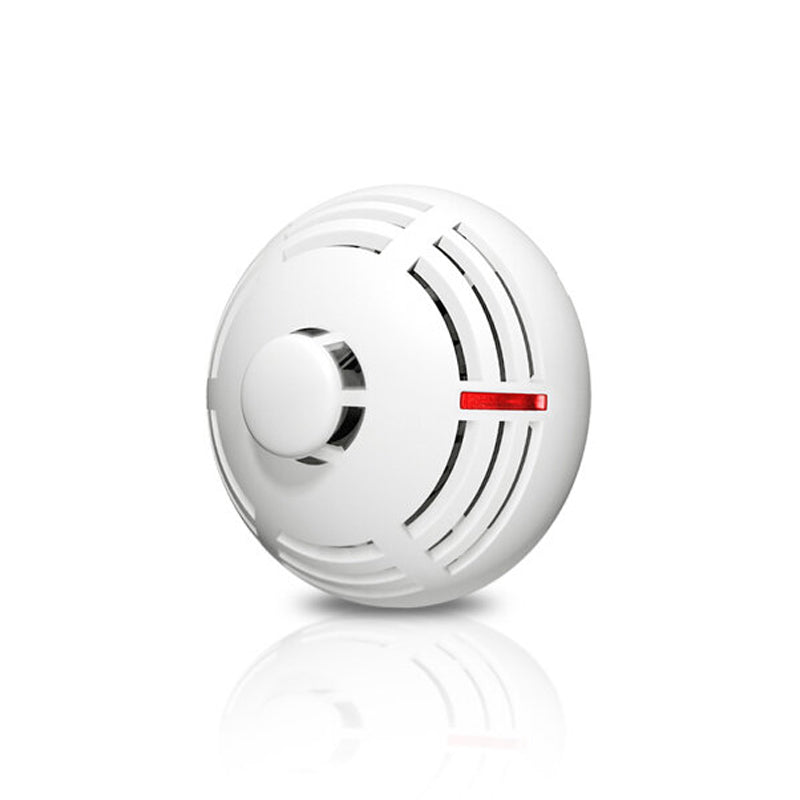

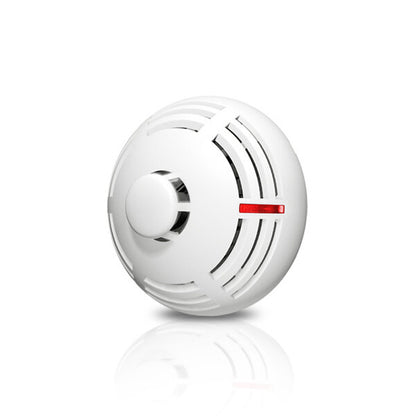

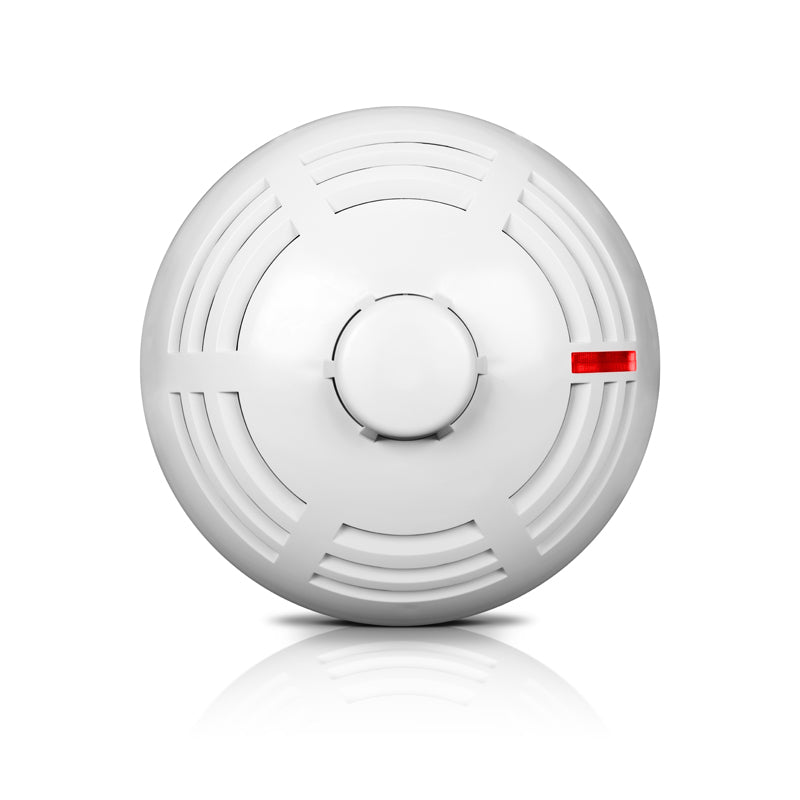

TSD-1 | Universal smoke and heat detector for alarm systems

The TSD-1 is a point-type multisensor detector designed to detect early-stage fires using both smoke and heat sensing. It features a highly sensitive Swirl photoelectric chamber and a rate-of-rise temperature sensor.

Key Features:

Certified to EN 54-7 (smoke) and EN 54-5 (heat) standards
Operates in smoke, heat, or multisensor mode
High-sensitivity Swirl chamber with omnidirectional detection
Hexamesh stainless steel filter blocks contaminants and insects

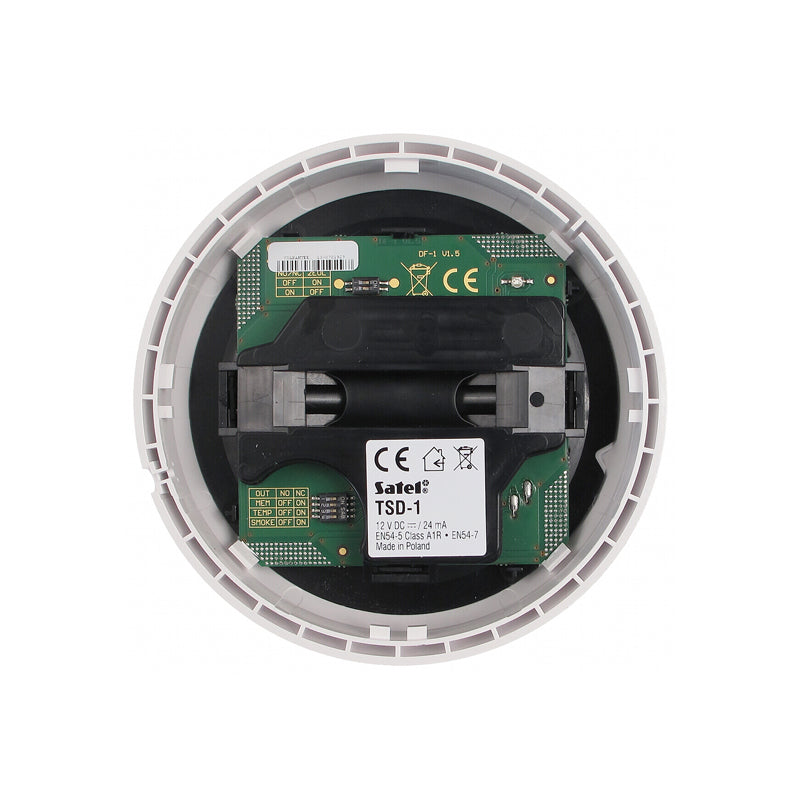

DIP-switch configuration for NO/NC/2EOL output types
Built-in parametric EOL resistors
Smoke chamber contamination indicator

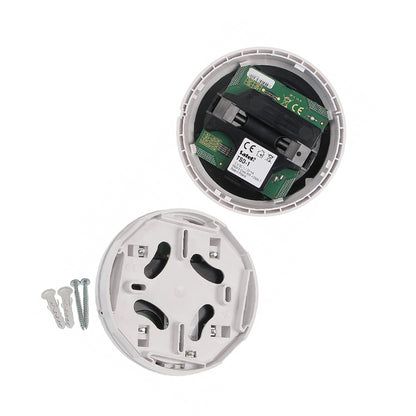

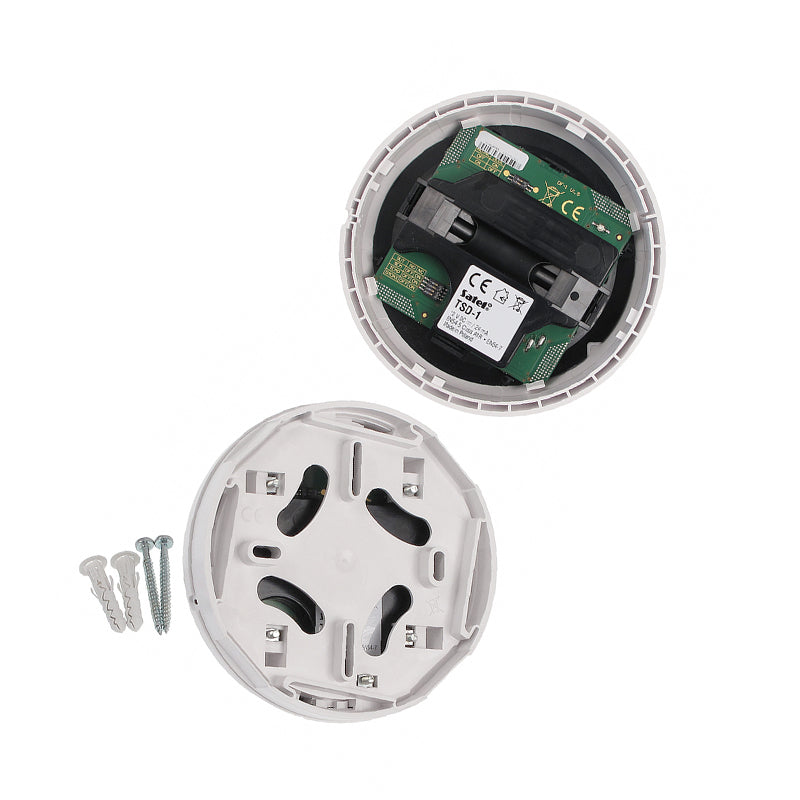

Easy installation with detachable base
Compatible with 12 V panels
IP20 protection rating

Technical Data

Supply voltage	12 V DC
Enclosure dimensions	ø108 x 61 mm
Operating temperature range	-10…+55 °C
Standby mode current consumption	250 µA
Max. current consumption	24 mA
Weight	164 g
Relay contacts rated load (resistive)	40 mA / 16 V DC
Maximum humidity	93 ±3%
Class according to EN 54-5 (heat sensor)	A1R
Minimum static response temperature	54 °C
Maximum static response temperature	65 °C
Environmental class according to EN50130-5	II
